What Is 6GR Pipe Welding? Full Step-by-Step 45° Restraining Ring Welding Guide

1. Definition of 6GR Pipe Welding – What Do 6, G, R Stand For?

6GR pipe welding is a high-difficulty fixed pipe welding test widely used in pressure vessel and industrial pipeline welder qualification. It refers to 45° inclined fixed pipe welding with a restraining ring, one of the most challenging welding positions for certified pipe welders.

1.1 Breakdown of 6GR Letter Codes

• 6: Represents the 45° inclined fixed welding position. The pipe axis stays at a 45° angle to the horizontal plane and cannot be rotated during welding.

• G: Short for Groove, meaning butt joint welding with machined pipe grooves.

• R: Short for Restraining Ring, the outer barrier ring that differentiates 6GR from standard 6G pipe welding.

1.2 Mandatory Dimensional Standards for 6GR Test Specimens

The restraining ring has an outer diameter 300 mm larger than the thick-walled pipe. It is mounted on the outer surface of the thick pipe, with a maximum clearance of 13 mm from both the weld joint and pipe end face.

There is a 6 mm wall thickness difference between the two mating pipes. Strict inspection rules require full penetration, smooth back bead forming, and a flush inner wall on the thick pipe. This makes 6GR welding a typical single-sided welding double-sided forming process.

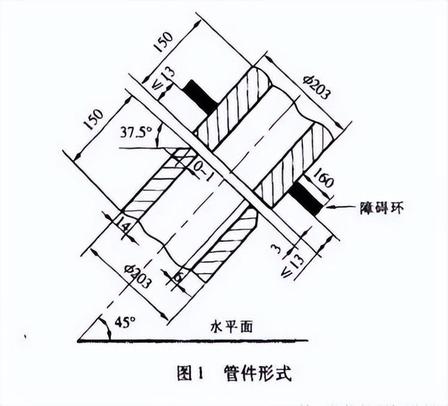

6GR pipe 45° dimension drawing

2. Pipe Fitting & Tacking Standards for 6GR Welding

Improper alignment and tacking will easily cause welding defects such as incomplete penetration, sagging weld metal, and backside undercut. Follow standardized assembly steps to guarantee consistent back bead quality.

1. Special Pipe Aligner Required: Use dedicated pipe fitting tools to control pipe misalignment; manual random assembly is forbidden.

2. 3-Point Rib Plate Tacking: Fabricate rib plates from 20# carbon steel, and fix them at the 2, 6, and 10 o’clock clock positions on the pipe circumference.

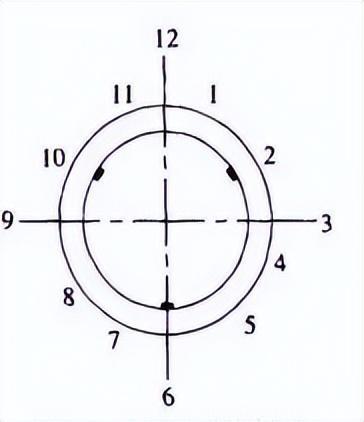

   6GR rib plate clock position layout

3. Rib Plate Machining Rules: Cut rib plates to the specified drawing dimensions. All rib plates must be fully ground off after tacking to avoid weld stress defects.



   6GR positioning rib plate size drawing

H2 3. Core Challenges of 6GR Restraining Ring Welding

Compared with regular 6G 45° inclined pipe welding without barriers, 6GR welding brings two major construction difficulties:

1. The external restraining ring blocks the welder’s sight, limiting operating space for overhead inclined welding sections.

2. The 6 mm wall thickness gap between two pipes creates uneven heat distribution. Gravity pulls molten metal downward easily during overhead root welding, making uniform back bead forming extremely hard.

Industry technicians have summarized a mature three-layer welding workflow to solve these issues: Root Pass (single-sided double-sided forming) → Fill Pass → Cap Pass. Each layer uses independent welding machine arc force parameters and weaving techniques.

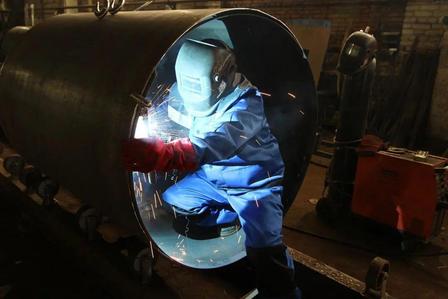

6GR pipe welding workshop real shot

4. Complete 6GR Welding Process & Machine Parameter Settings

4.1 Root Pass Welding – The Critical Step for Double-Sided Bead Forming

The root pass determines the overall welding quality of 6GR joints. Welders must master the three core operation principles: Observe, Listen, Feed, plus optimized arc force to counteract gravity.

Machine Parameter Setup

• Starting current gear: 5

• Arc force (blow force) gear: 7

  Higher arc stiffness pushes molten metal firmly to the thick pipe root to form a smooth back weld bead.

Standard Welding Operation Steps

1. Arc Striking Position: Strike the arc 5 mm below the 6 o’clock overhead point. Swing the electrode slightly up and down to melt the groove root and form a stable molten hole. Push the electrode close to the thick pipe wall at a tilted angle.

2. Weaving Technique: Use tiny inclined zigzag back-and-forth strokes. Keep half the molten pool inside the groove and half outside. Control the feeding interval of molten metal between 1–1.5 seconds.

3. Three Core Operation Rules

   • Observe: Continuously monitor molten hole size and pool temperature to prevent sagging weld overlap or backside concave defects.

   • Listen: Catch the clear popping sound when the arc fully penetrates the groove root, confirming complete penetration.

   • Feed: Adjust arc length, electrode angle, and travel speed to match gap shrinkage during welding.

4. Crater Termination & Hot Joint Tips

   Never break the arc directly at the center of the molten pool. Drag molten metal backward 10–15 mm to create a sloped surface before stopping the arc.

   Complete hot joint connection while the crater stays red-hot: restrike the arc 10–15 mm below the old crater, push the electrode to the groove root until penetration popping sounds appear, then resume normal weaving. Fast electrode replacement and steady hand movement ensure smooth backside joint forming.

4.2 Fill Pass Welding – Prevent Slag Inclusion

After finishing the root pass, grind uneven joint surfaces with an angle grinder before starting fill welding:

1. Adjust arc force gear to 5. The digging effect of the arc removes oxidation and trapped slag along groove sidewalls.

2. Use inclined zigzag weaving; pause briefly on both groove edges to ensure full sidewall fusion.

3. Stagger arc striking and termination points of adjacent layers by 10–15 mm.

4. Stop fill welding when the weld surface sits 1–2 mm lower than the base metal, leaving sufficient allowance for the cap pass.

4.3 Cap Pass Welding – Eliminate Undercut & Improve Weld Appearance

The cap pass focuses on smooth surface finish and no undercut defects, requiring softer arc output:

1. Adjust arc force gear to 2 to reduce arc rigidity and avoid melting pipe sidewalls excessively.

2. First half-circle overhead section: Adopt crescent weaving horizontal strokes; pause at groove edges to keep the molten pool level.

3. Second half-circle inclined overhead section: Strike the arc and drag horizontally to overlap the triangular pending welding zone left by the first half-circle, using transverse zigzag weaving.

4. Closing technique: Gradually shrink the molten pool when reaching the triangular closing tip, fully fill the zone before breaking the arc, and completely fill the crater for flat weld ends.

5. Common 6GR Welding Defects & Preventive Solutions

1. Backside concave / incomplete penetration: Low arc force, insufficient electrode push to the root. Boost arc force and listen for penetration popping sounds.

2. Overlap sagging weld metal: Too fast molten pool feeding. Extend the 1–1.5 second cooling interval between metal deliveries.

3. Slag inclusion: Low fill pass arc force, insufficient pause time on groove sidewalls during weaving.

4. Cold shrinkage cavities: Direct arc breaking on the molten pool. Use the sloped drag termination and hot joint method.

6. Final Summary

6GR restraining ring 45° fixed pipe welding is a high-level qualification test for pressure pipeline welders, with its biggest difficulty lying in overhead root pass single-sided double-sided forming.

The key to qualified 6GR welds is layered adjustment of welding machine arc force, standardized electrode weaving skills, and standardized hot joint operation. Following the full assembly, tacking, and three-layer welding workflow in this guide helps welders pass visual inspection and non-destructive testing consistently.
