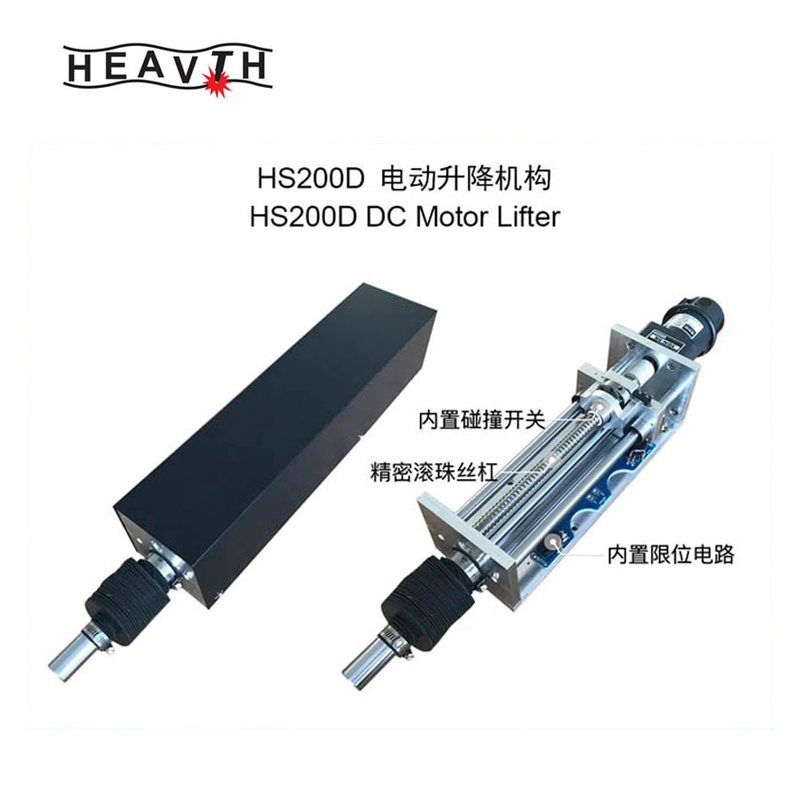

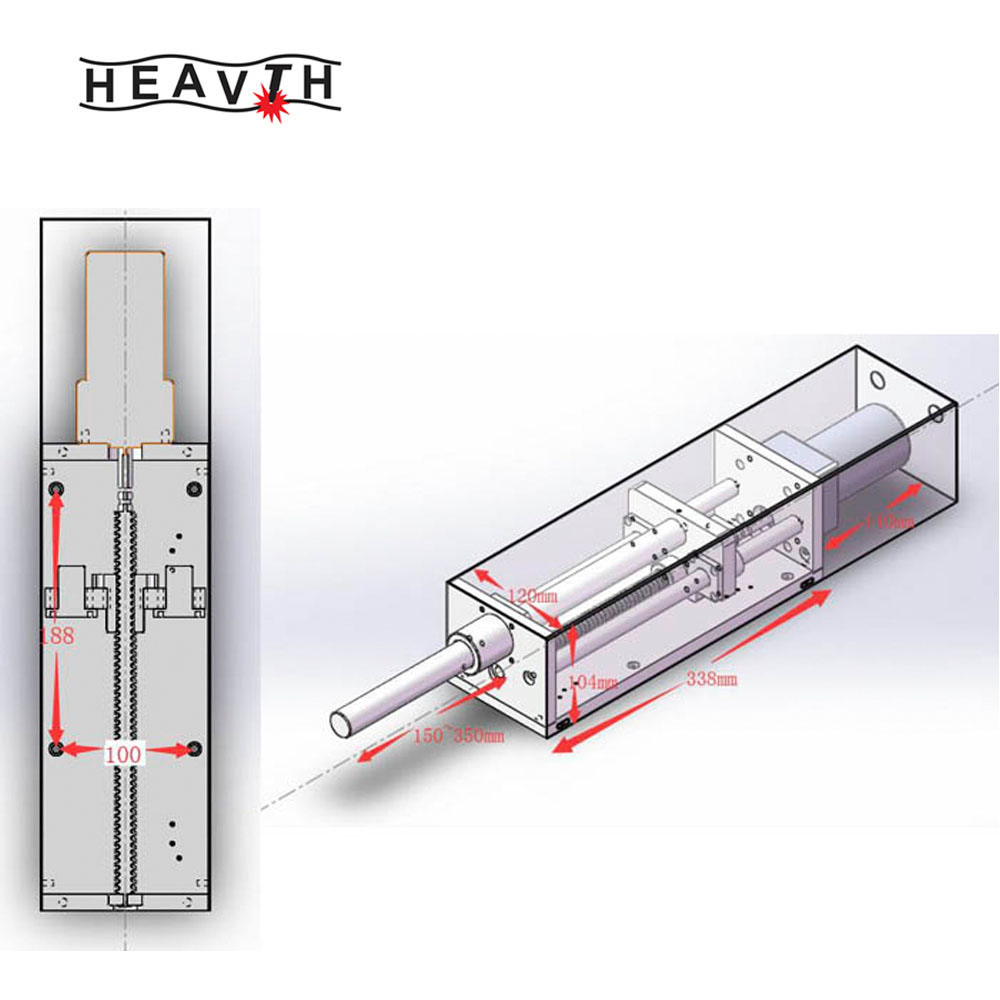

HS200D DC Motor Lifter

When the electric lifting mechanism leaves the factory, the clearance of the motor, screw rod and guide rail has been adjusted. However, after transportation, the assembly position may change, affecting the cutting accuracy.

Before formally installing on the machine, please check the following parts:

1. Guide rail clearance, whether the guide rail shakes left and right or back and forth.

2. Check whether the screw hole of the geared motor is aligned with the screw hole on the housing. Whether the geared motor and the screw rod are perpendicular to the upper surface of the mechanism and parallel to the adjusted guide rail.

3. Check the position of the limit switch so that it can be actuated reliably but not damaged.

If necessary, adjust as follows:

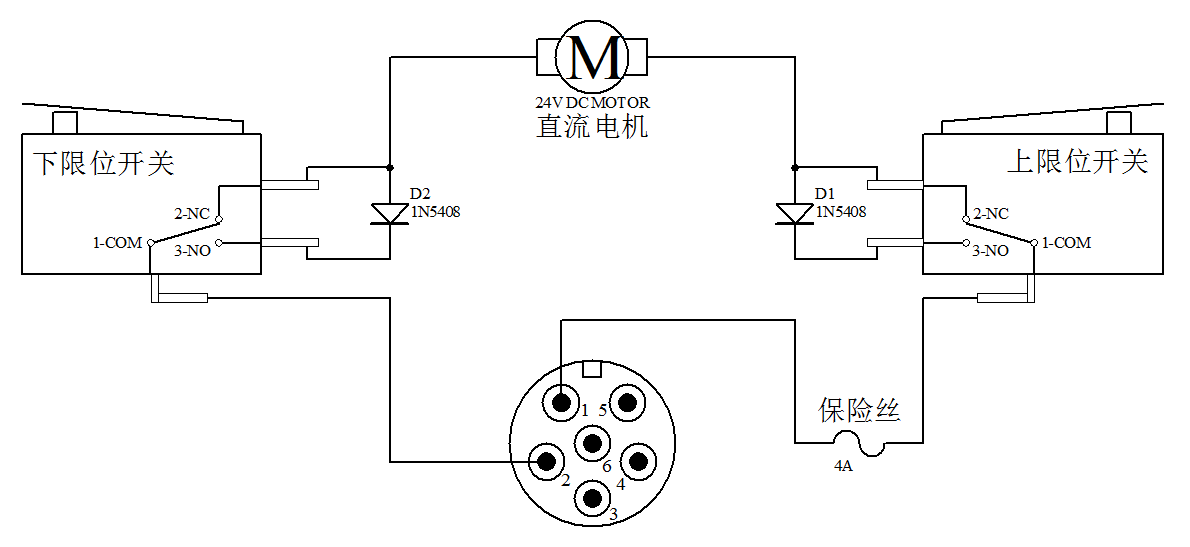

Recommended Wiring Diagram

Connect the internal circuit according to the requirements of use. When using the height controller, connect the upper and lower limit positions to the corresponding interface of the height controller, and pay attention to whether the signal is normally open or normally closed.

When there is no external height controller, you can connect the wiring as shown in the figure below, so that the upper and lower limit functions are realized by the lift.

After the line is connected, connect the first and second pins of the aviation plug to DC 24V, test the direction of rising and falling, and whether the upper and lower limit switches play a corresponding limit role.

After the test is completed, arrange the wiring with cable ties or protective sleeves to avoid pulling or scratching during the lifting process.
