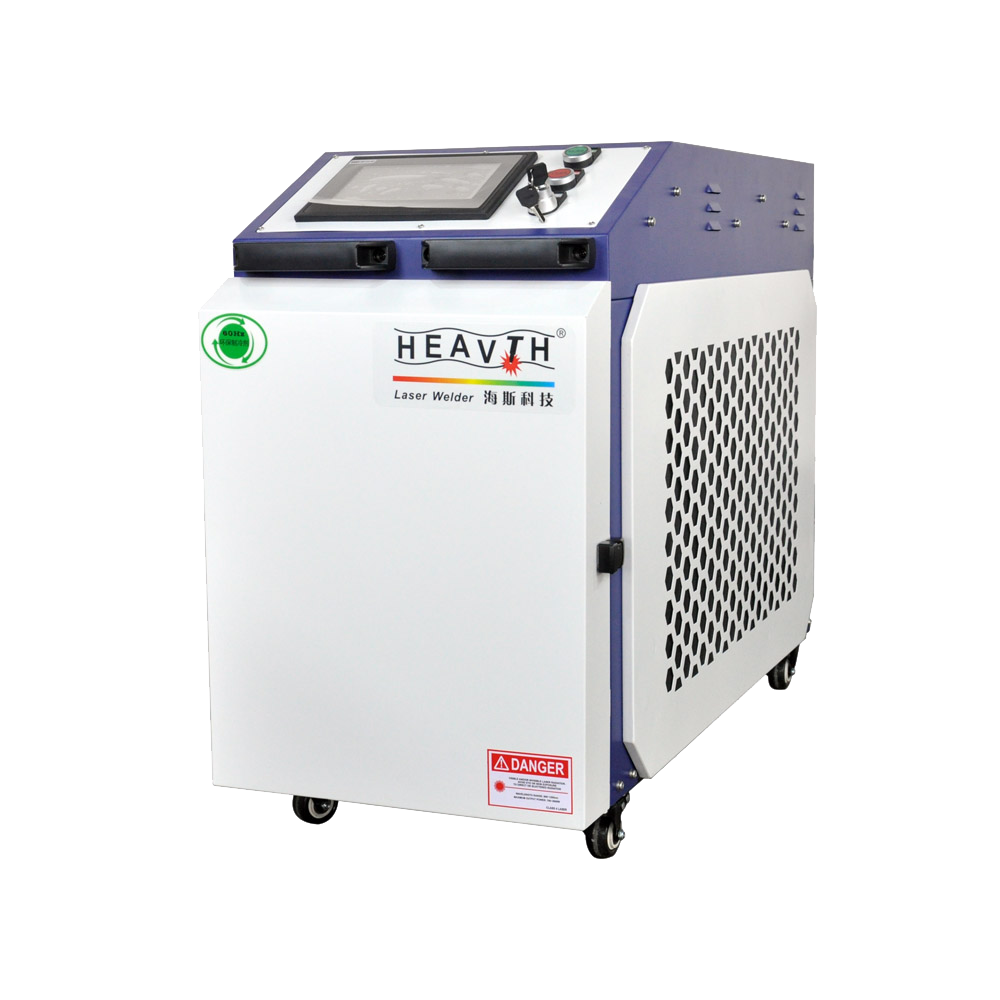

MS Series 4 in 1 Handheld Laser Welding Machine

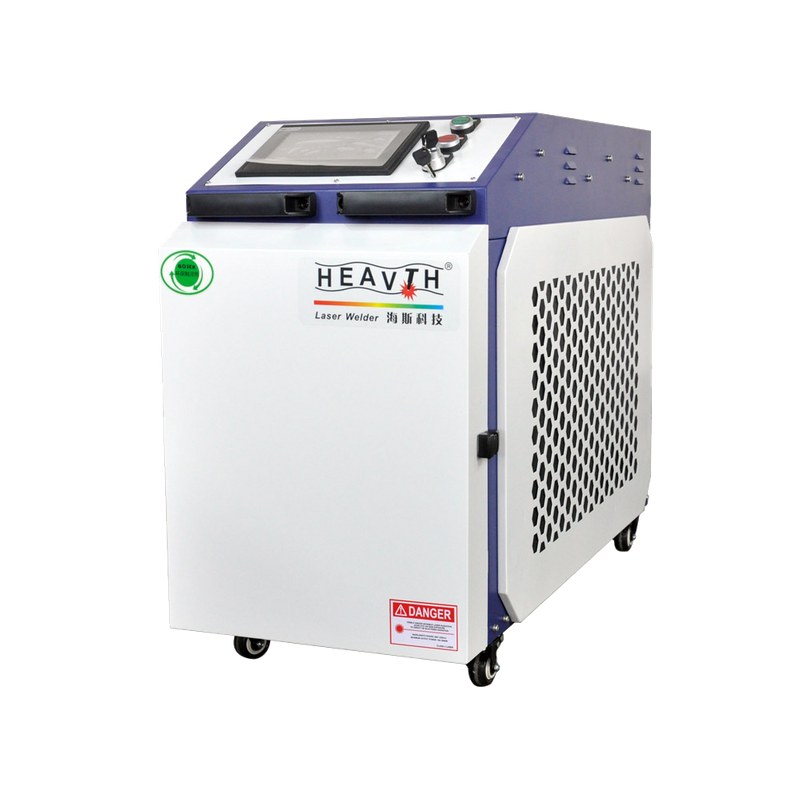

Equipment overview

The MS Series Water-Cooled 4-in-1 handheld laser welder, with a laser source power range of 1000W to 3000W, represents a significant advancement in modern welding technology. This versatile device integrates welding, cutting, surface cleaning and weld cleaning functions into a single portable unit. Its strengths lie in high performance, user-friendly operation and high flexibility, which are particularly important in metal processing and precision welding applications.

The device is equipped with an efficient water cooling system to ensure optimal thermal management and stable operation even under high loads. The water cooling mechanism effectively dissipates heat, extends the service life of internal components, and enables the laser to maintain stable performance during long-term operation. Although an external chiller is required, the water-cooled design provides excellent cooling efficiency and is ideal for demanding industrial applications that require continuous high power output.

Product features:

Precision Laser Technology:

Utilizes high-powered laser beams for accurate welding with minimal heat distortion.

Handheld Design:

Ergonomic and easy to use, allowing for precise control and maneuverability during welding operations.

Versatile Applications:

Suitable for welding various materials including metals and alloys commonly used in industrial and manufacturing processes.

User-Friendly Interface:

Intuitive controls and interface for setting parameters and monitoring welding processes.

Portability:

Lightweight and compact, facilitating mobility and flexibility in different work environments.

Safety Features:

Incorporates safety measures to protect operators and ensure safe handling during operations.

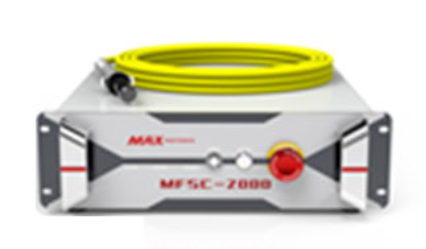

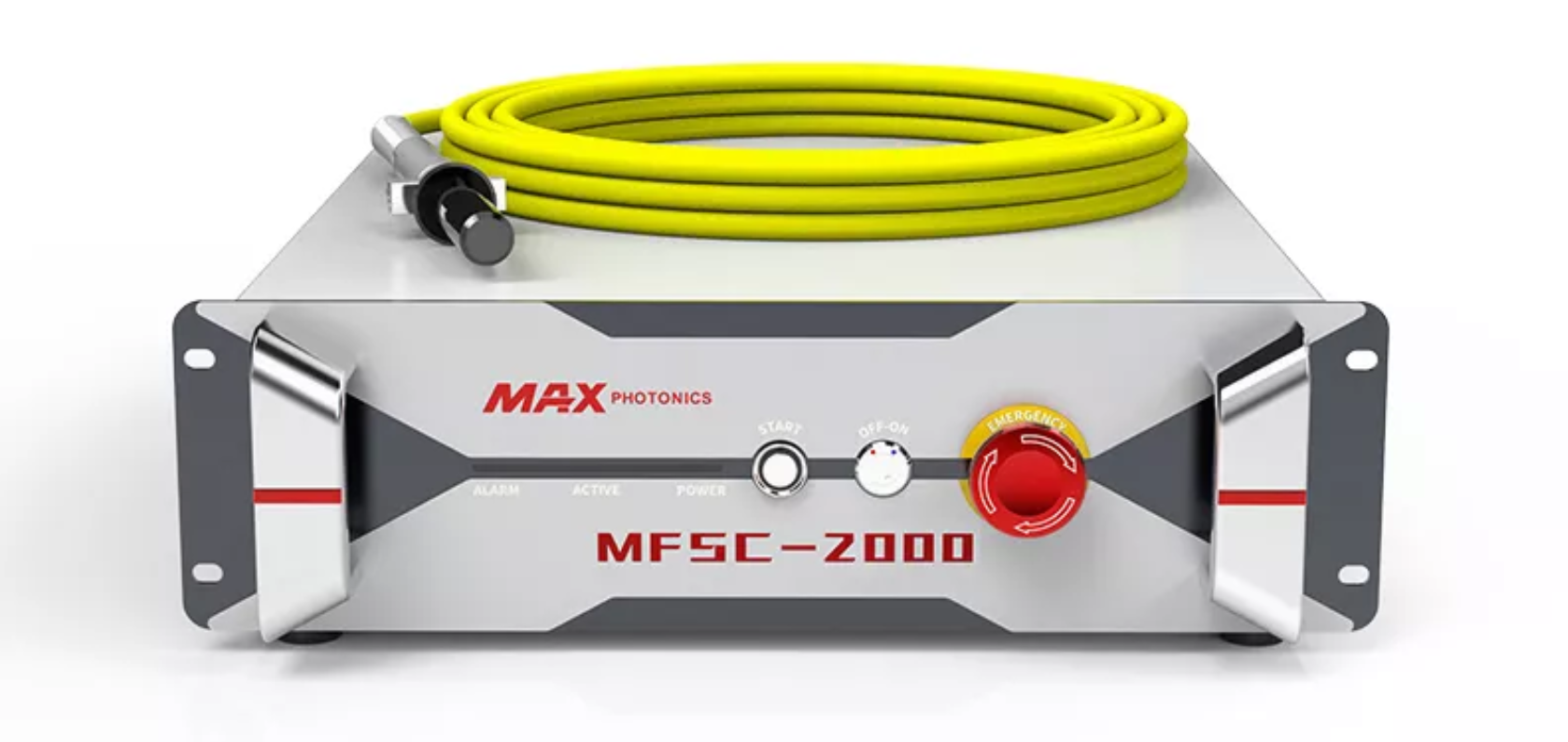

Laser source:

This system uses a fiber laser customized by a big-name manufacturer, which has the characteristics of small fiber core diameter, high energy density, and sufficient output power. It has excellent beam quality, high energy density, and excellent stability, and can achieve deep penetration with a small heat-affected zone, and minimal thermal deformation during the welding process. Fiber laser is a high-performance laser source that transmits a highly concentrated and stable laser beam through optical fiber, which can achieve precise and efficient metal welding. It is very suitable for welding a variety of metal materials, including stainless steel, carbon steel, aluminum alloys, and copper. The laser has a compact structure, high energy efficiency, and low maintenance requirements, making it an ideal choice for industrial welding applications.

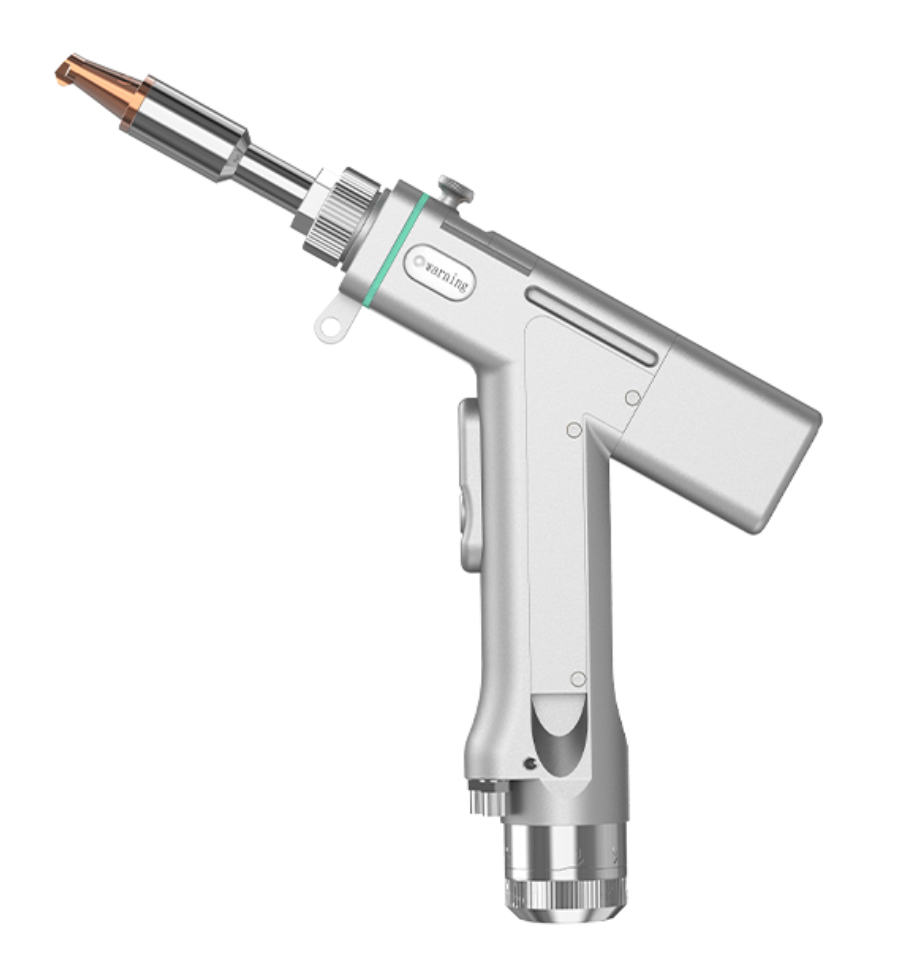

Laser welding head:

1. Features a unique integrated cooling structure and special airflow design, effectively protecting the nozzle and lenses.

2. The welding head's spot size is adjustable, allowing for flexible control over penetration depth and weld bead width.

3. Built-in multi-point temperature measurement, real-time monitoring of welding gun temperature

4. Overall aluminum alloy material, dust-proof, wear-resistant, and anti-interference

5. Quick-release design of the lens for easy inspection and replacement

6. Equipped with a intelligent wire feeder, providing precise wire feeding for high-precision filler wire processes.

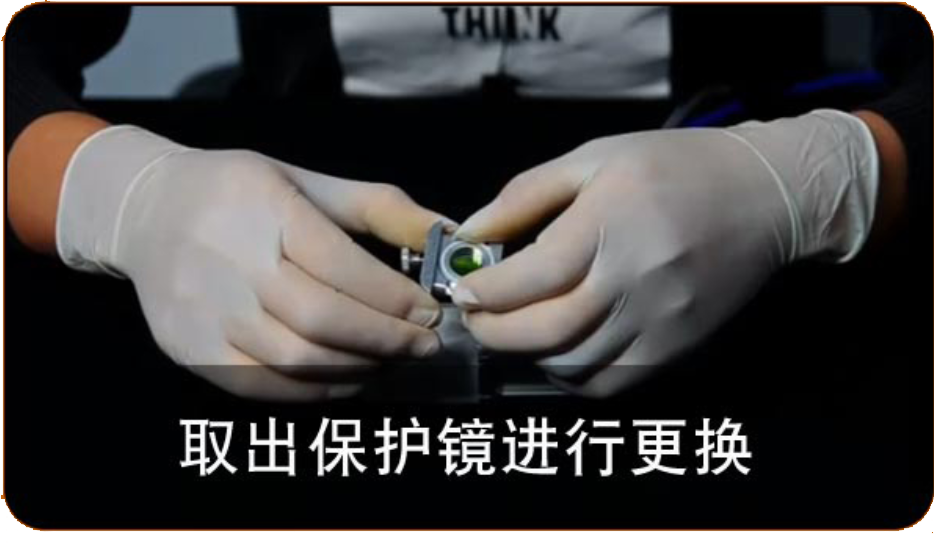

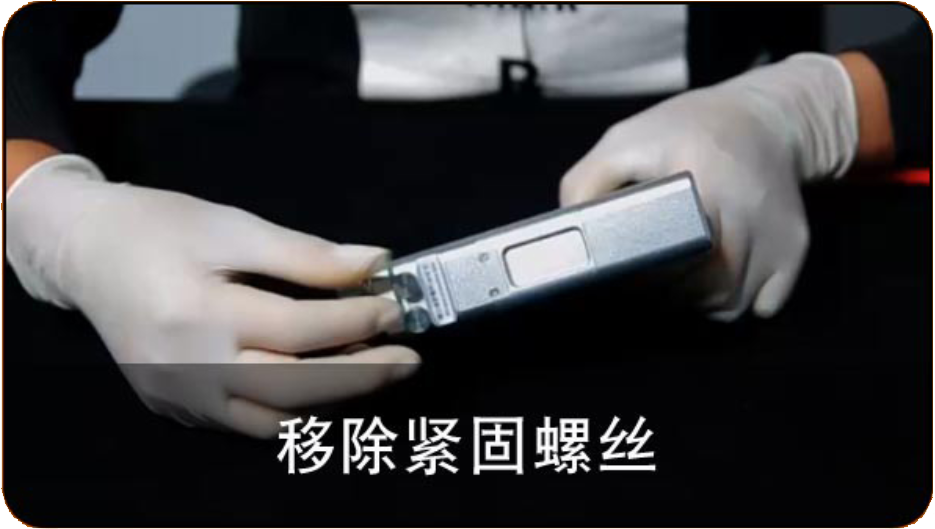

Protective lens drawer design, convenient for maintenance and replacement:

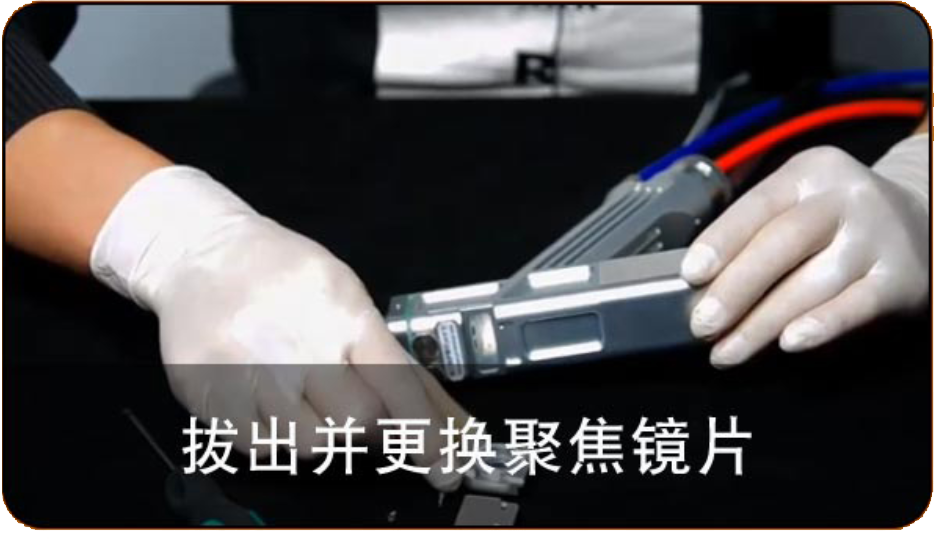

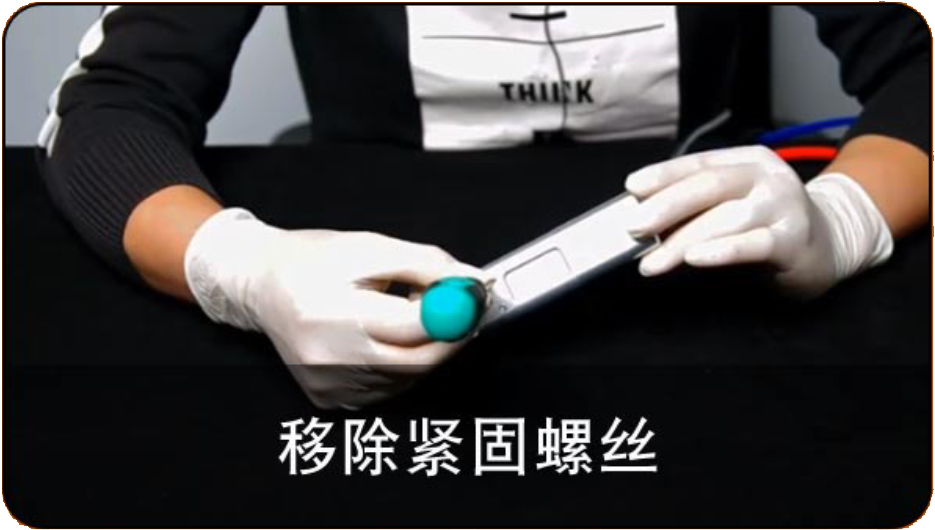

Focus lens drawer design, convenient for maintenance and replacement:

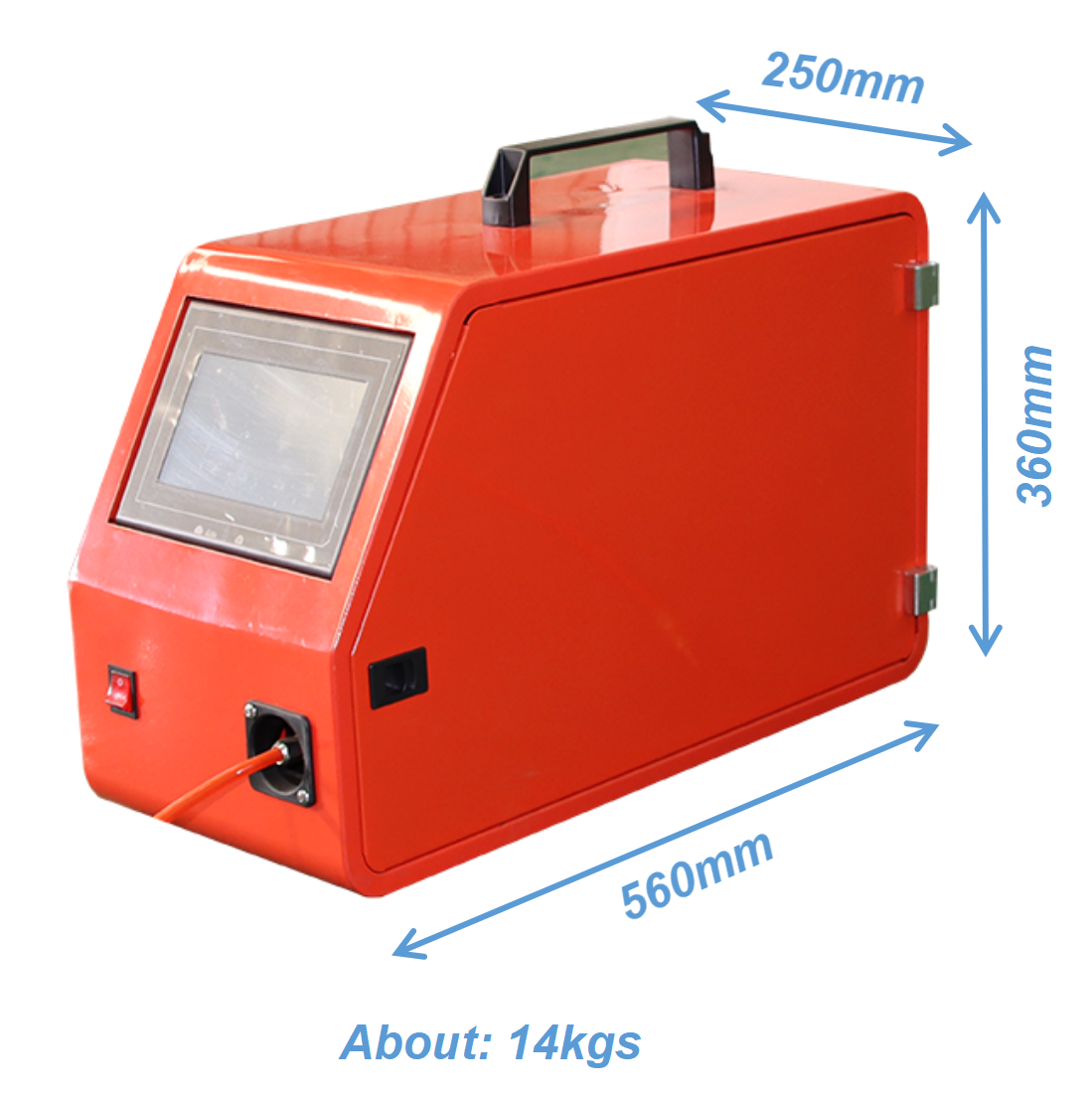

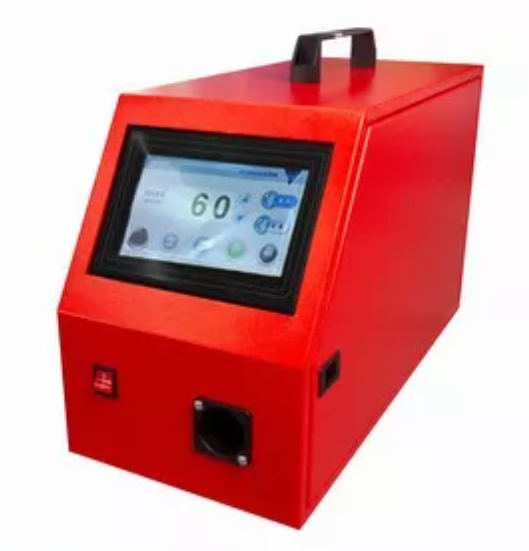

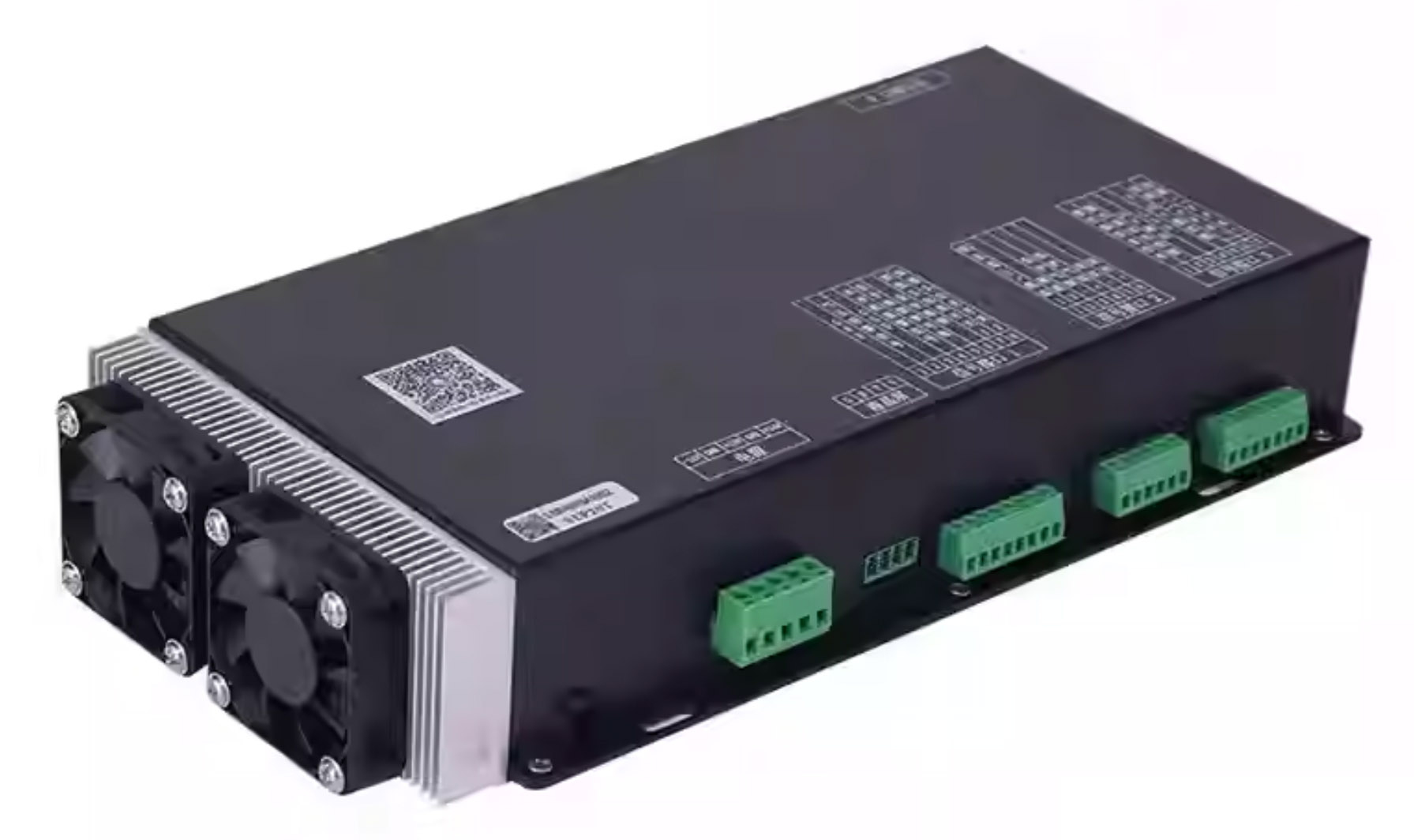

Laser control system:

The laser welding control system is developed with industrial-grade DSP chip, full-screen touch, and multiple internal parameters are adjustable. The input and output ports are isolated and the anti-interference performance is excellent.

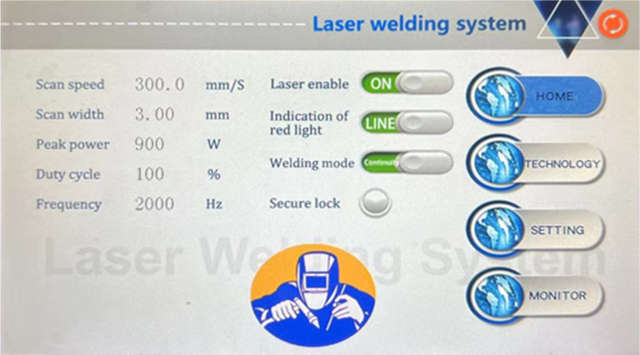

Function Display:

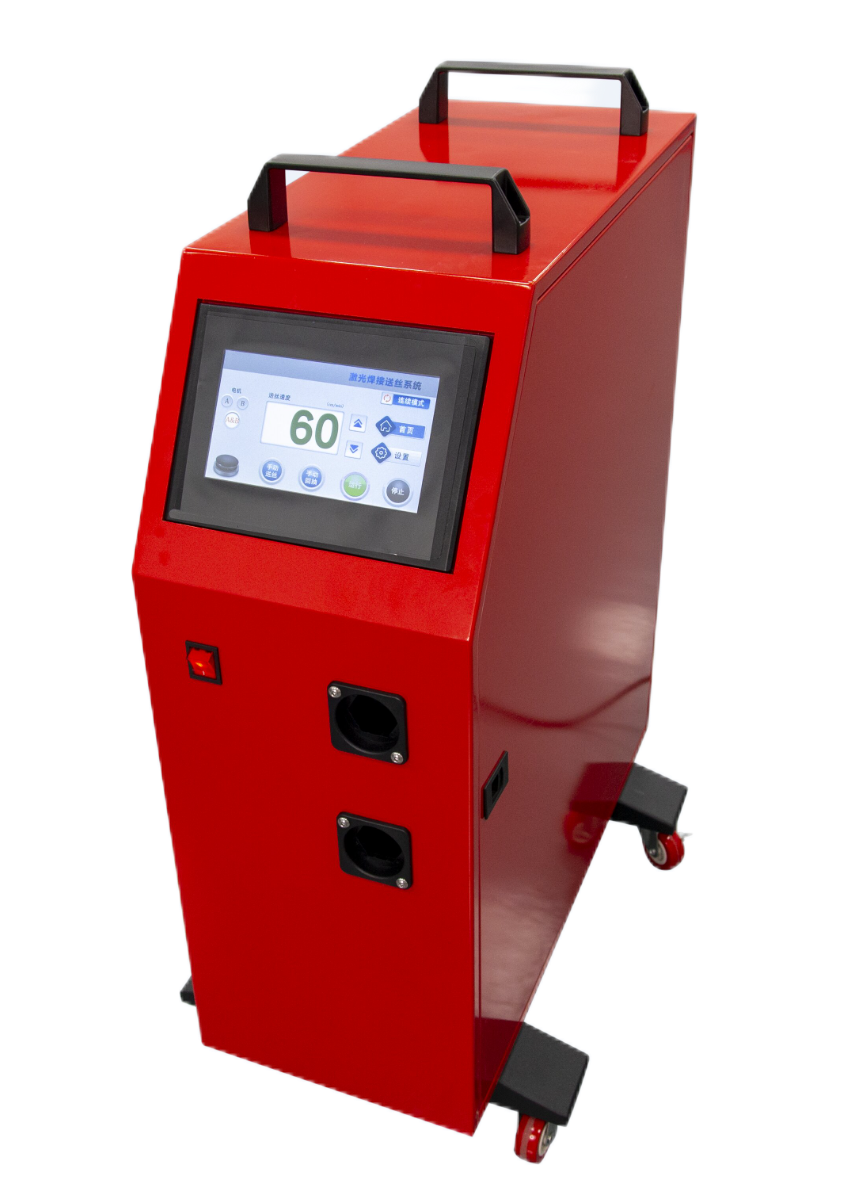

Intelligent Chiller:

In laser welding, the laser is the core component, and it generates a significant amount of heat during operation. The working condition and performance of the chiller directly affect the laser welding effect and stability. To maintain the laser's performance and lifespan, it is crucial to dissipate the heat it generates in a timely manner. Therefore, we utilize a dual-temperature, dual-control, high-capacity chiller for cooling, enabling precise temperature control. The chiller features two independent cooling water circuits: one high-temperature circuit for cooling the laser head and one low-temperature circuit for cooling the laser. With a temperature control accuracy of ±0.1℃, precise temperature control is achieved, ensuring the stability of the laser welding machine's beam output and processing quality, while also extending equipment life and reducing enterprise costs.

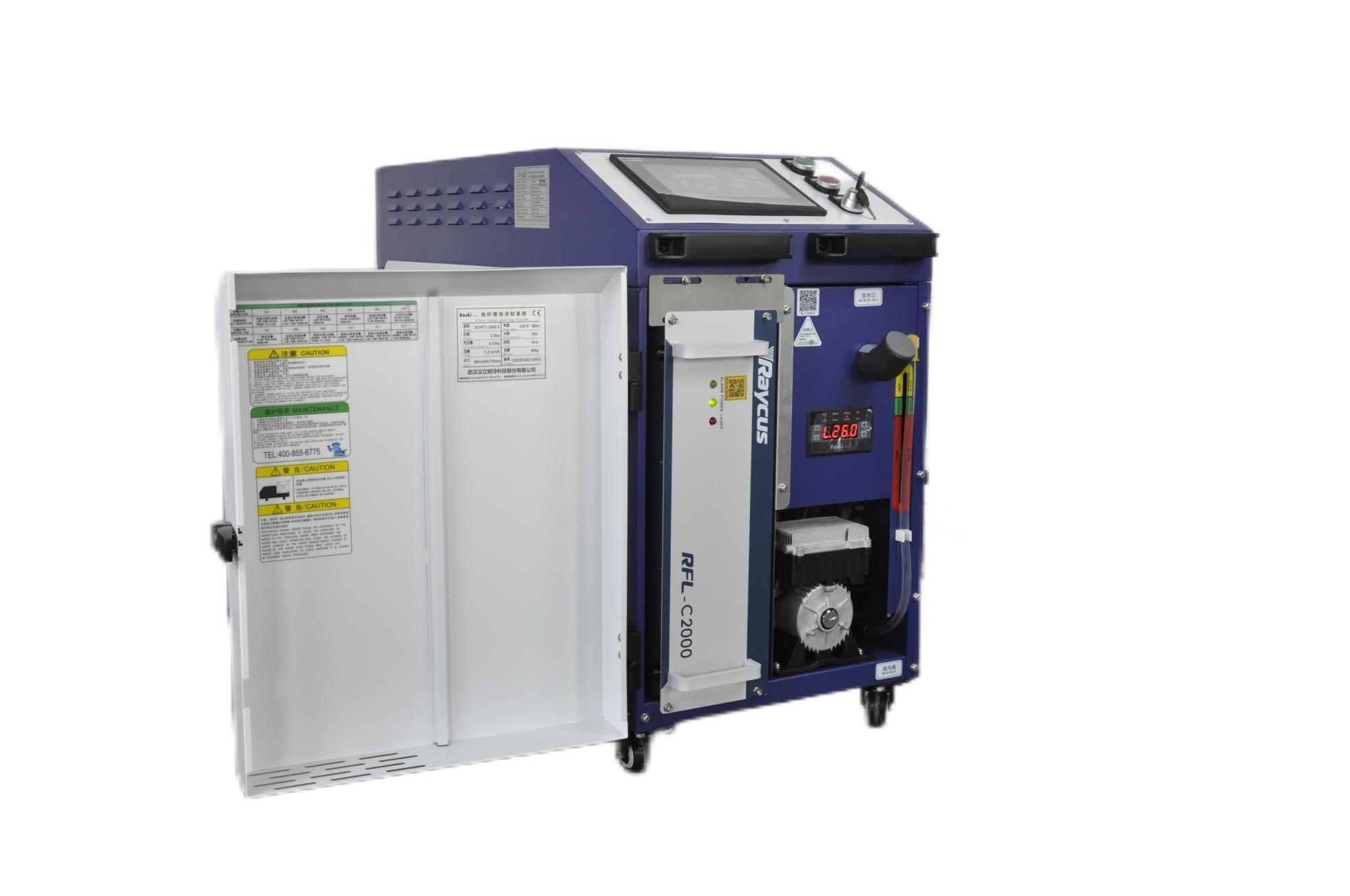

Standard configuration:

Technical parameter:

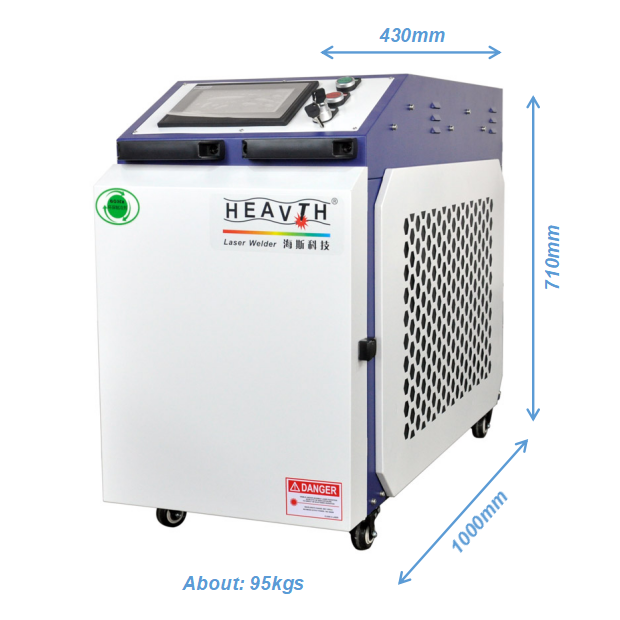

Machine dimension（Model: MS-1500WHL）：

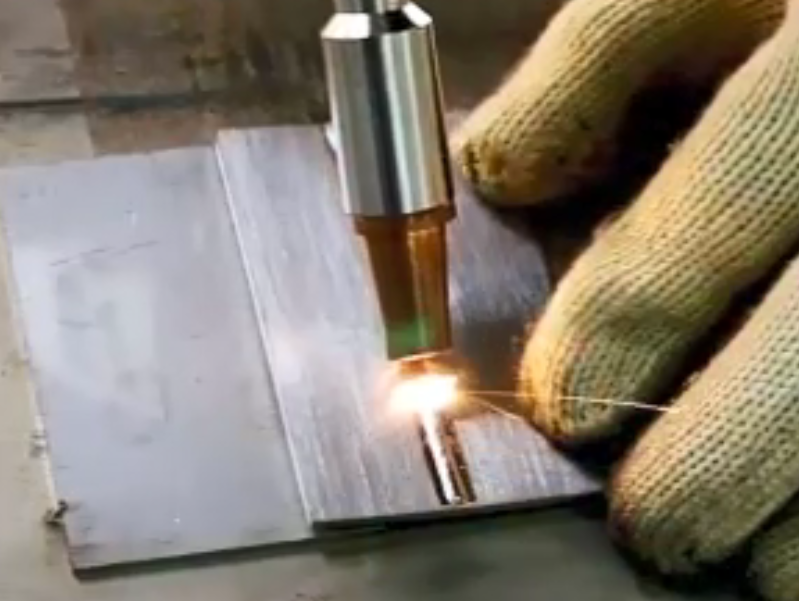

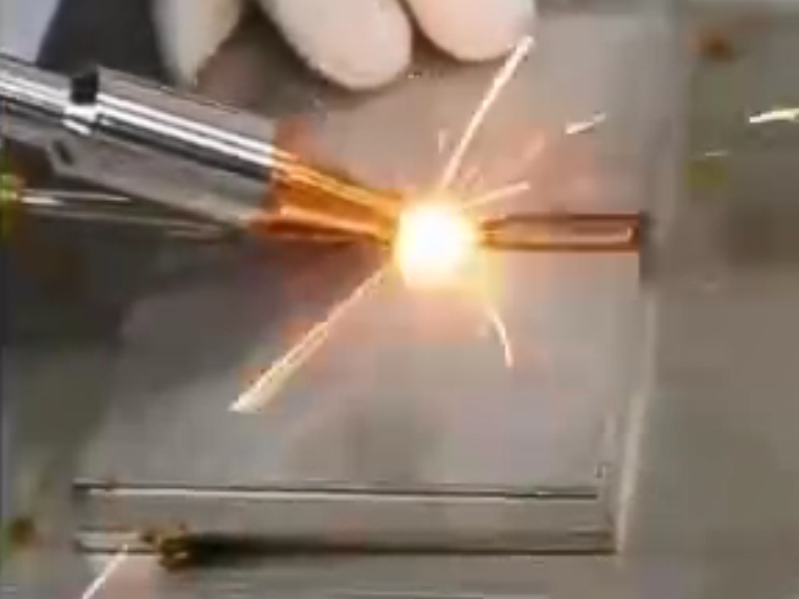

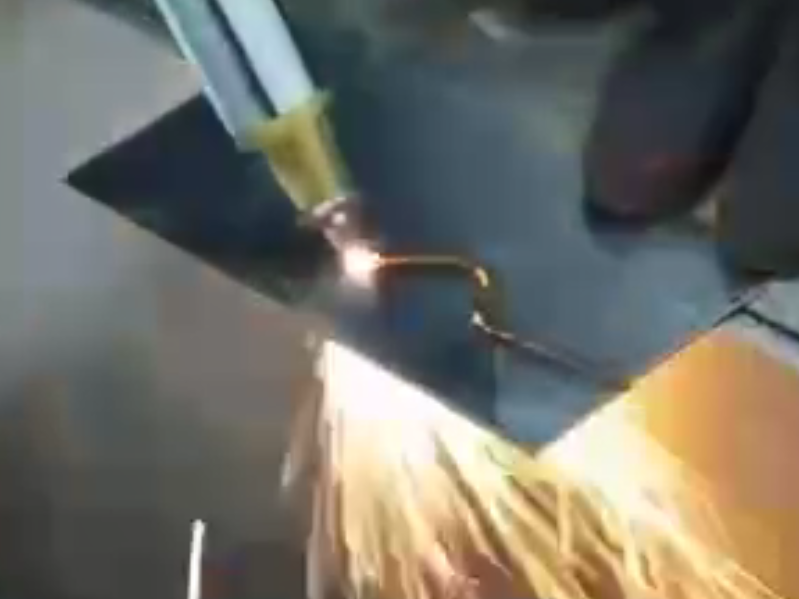

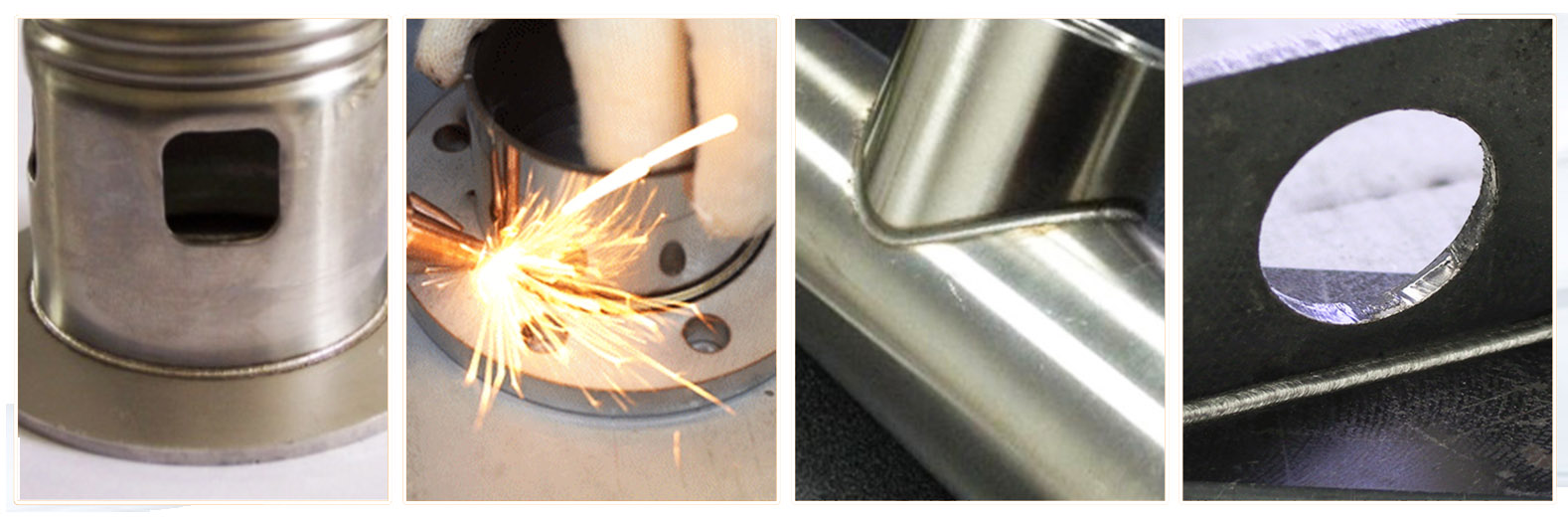

Welding samples:

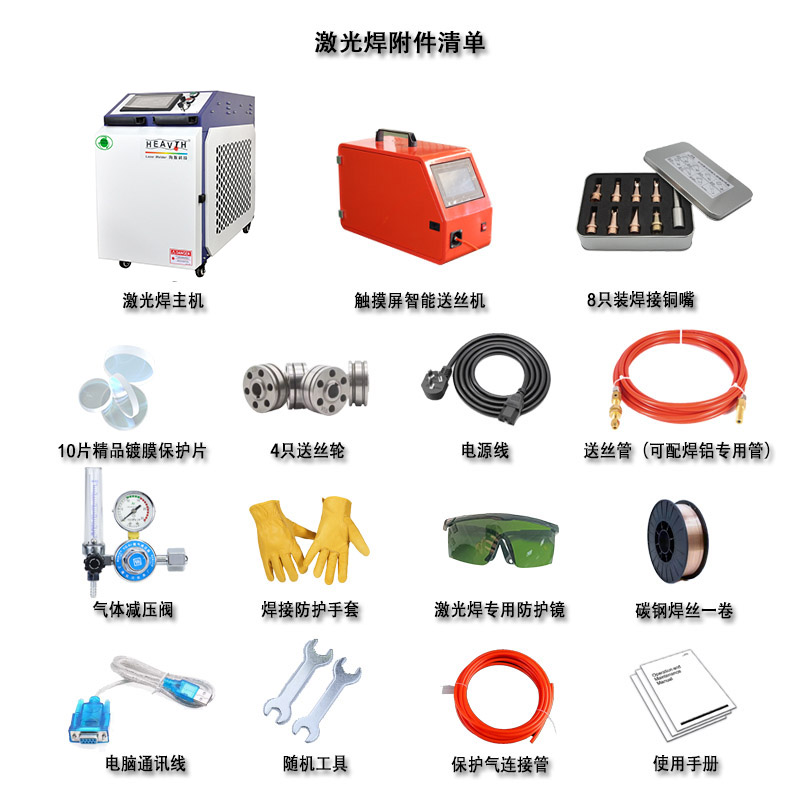

Packing list:
