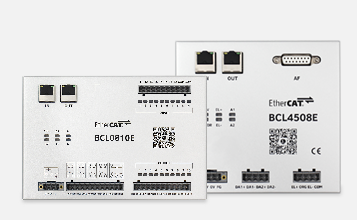

BCL0810E/BCL4508E I/O And Servo Axis Extension Module

BCL0810E and BCL4508E are extension board for FSCUT control system. Applied in pallet changer, auto loading application that require more I/O resource.
Availability:
Quantity:
Inquire Add to Basket

  • BCL0810E/BCL4508E

  • FRIENDESS

ModelFeatureBCL0810E
Control software
CypCut，TubePro，HypCut
Control system
FSCUT2000，3000，4000，5000，8000
Application
Extend extra I/O resource
Interface type
Rj45 network interface
Power supply
24V DC/1A
Input
8 input: low-level active
Output
10 output: relay output, highest 30V DC/2A； OUT5 and OUT10 support jump-wire, the rest 8 output are normal-open
Work environment
Temperature: 0-60℃
Humidity: 10%-90% RH (no condensation)


ModelFeatureBCL4508E
Control software
CypCut，TubePro
Control system
FSCUT1000，2000，3000，4000，5000
Application
One servo control output and DA output
Interface type
Rj45 network interface
Power supply
24V DC/1A
Input
3 travel limit , EL+, EL-,ORG input
Output
1 servo axis control port
Work environment
Temperature: 0-60℃
Humidity: 10%-90% RH (no condensation)
