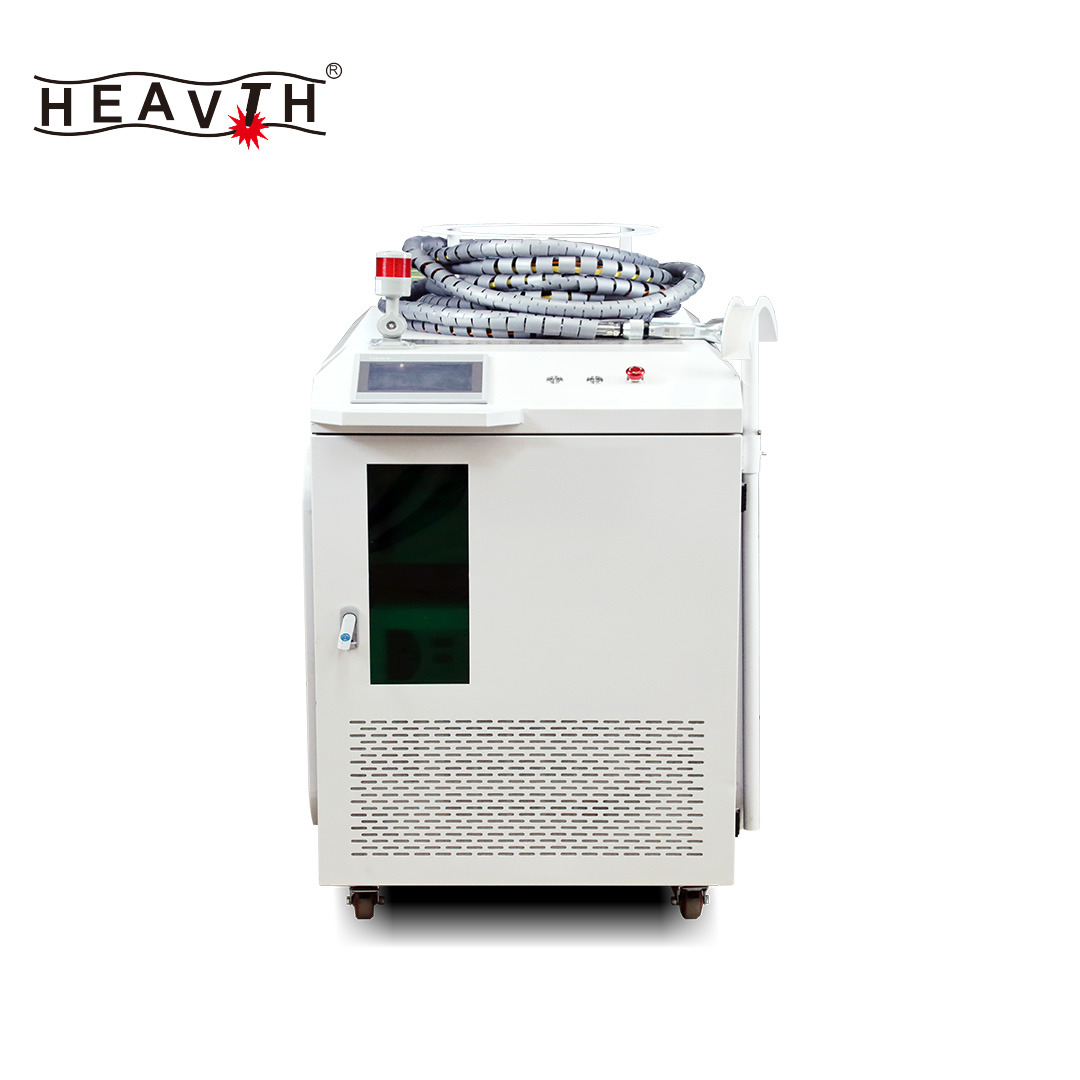

HS-1000L
Heavth
Along with the development of fiber laser source, hand-held laser welding machine was widely used and changed the industrial welding market by making it simpler for different angle and welding processing like stitch welding, tailor welding and seam welding.
It could completely replace the applications of traditional arc welder and electric welder technology in thin stainless steel, iron sheet, aluminum plate and other metal sheet
| No | Item | Data |
| 1 | Product Name | Laser Welding Machine |
| 2 | Power Supply | AC380V±10% | 50Hz |
| 3 | Fiber Laser Source | Raycus |
| 4 | Fiber-optic Cable Length | 1070mm |
| 5 | Repeated Location Accuracy | ±0.02mm |
| 6 | Connecting Mode | QBH Type |
| 7 | Laser Power | 1000W.1500W. 2000W.3000W |
| 8 | Handheld Welding Head Focal Distance | 100m |
| 9 | Water Cooling System | Heavth Laser Customized Model |
| 10 | Cooling chiller | Hanli/ S&A |
| 11 | Humidity range of working environment | < 70% No condensation |
| 12 | Welding thickness recommendations | 0.5-3mm |
| 13 | Welding gap requirements | ≤0.5mm |
1. The welding speed is faster, 2-10 times faster than the traditional welding, and one equipment can save at least 2 welders a year.
2. The actual operation is simple, the photoelectric conversion is efficient, the energy consumption is low, and the actual operation is simple and easy to learn. There is no need for the welding teacher of technical specialty. Ordinary employees can enter the post after short-term learning and training.
3. The welding is smooth and good-looking, reducing the later grinding and polishing process, saving time, labor and cost.
4. The self-developed wobble welding joint fills in the slight defect of laser welding light spot, expands the dimensional tolerance range and total welding width of production and processing components, and obtains faster welding.
5. The work piece of the welding product is invisible, without welding scar, and the welding is firm.
6. laser welding has less consumption and long service life.
7. Safety and environmental protection. Multiple safety alarms, automatic locks light after removing the workpiece, with high security. It is only reasonable for the welding nozzle to pull the power switch when touching metal materials, and the power switch contains temperature magnetic induction.
8. Smart interior design and good interactive control system which enlarge the tolerance range of the welding parts and the weld width. It solves the disadvantage of small laser welding spot with better weld formation /shaping.
9. A variety of angle nozzles can be configured to meet the welding needs of different products.
1. Sanitary industry: welding of water pipe joints, reducing joints, tees, valves and showers.
2. Glasses industry: precision welding of glasses buckle and outer frame made of stainless steel and titanium alloy.
3. Hardware industry: welding of impeller, kettle, handle, complex stamping parts and castings.
4. Automotive Industry: sealing welding of engine cylinder gasket, hydraulic tappet, spark plug welding, filter welding, etc.
5. Medical industry: welding of medical instruments, stainless steel seals and structural parts of medical instruments.
6. Electronics industry: seal off welding of solid-state relay, welding of connector, welding of metal shell and structural parts such as mobile phone and MP3. Welding of motor shell and wiring, optical fiber connector joint, etc.
7. Domestic hardware, Kitchenware and bathroom stainless steel door handles, electronic components, sensors, clocks and watches, precision machinery, communication, handicrafts and other industries, as well as product welding in industries with high strength such as automobile hydraulic tappets.
1. Handheld laser welding machine can weld at any places with any angle.Very flexible working.
2. Fast welding speed, 2~10 times faster than traditional welding.One machine can work instead of 2 workers.
3. Simple operation, no need traing. Welding effect beautiful, no need polish,no deform of work piece and no consumables,save your time and money. Welding in thin stainless steel plate, iron plate, aluminum plate and other metal materials can perfectly replace the traditional argon arc welding and electric welding technology.
4. No need working table,takes smaller space. Has multiple welding products with flexible shapes.
5. Lower welding cost,lower power consumable and lower maintenance cost. No consumable parts,longer life time,safer and more environmentally friendly.
6. No deformation or welding scar, firm welding of the workpiece.
7. Laser welding has less consumables and long service life.
1. Confirm the laser power (1000w/1500w/2000w)
2. Place Order and arrange payment
3. Production
4. Send to the seaport
5. Pick the machine from the seaport
6. Installation and after-sale service
Q1：Does the machine can be customized according to my requirements?
