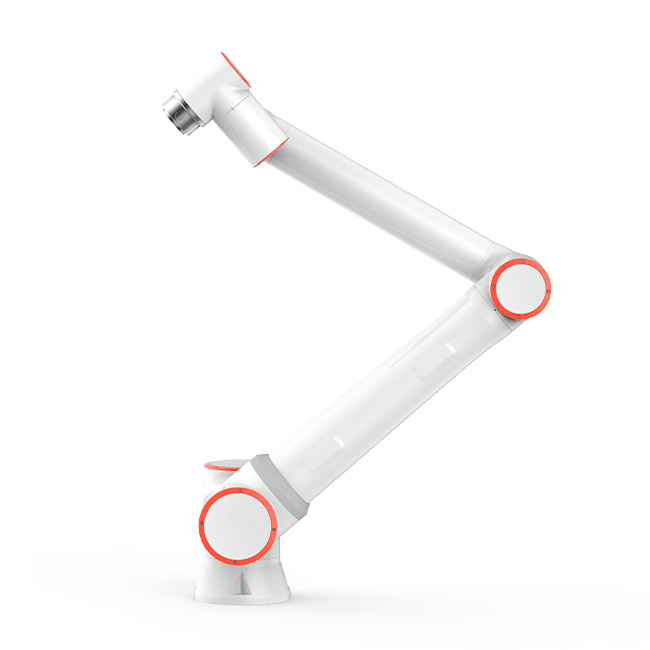

FR10 Collaborative Robot Arm 10KG Load Weight 6 Axis Cobot Arm Robotic Machine

The FR10 is a versatile 6-axis collaborative robot designed for flexible industrial automation. With a 10kg payload and 1400mm working radius, it provides an excellent balance of reach, load capacity and precision.
Featuring ±0.05mm repeatability, the FR10 is suitable for welding, material handling, machine tending, assembly, palletizing and other automated production tasks. Its collaborative design makes it easier to integrate into existing production lines and helps manufacturers improve productivity while reducing repetitive manual work.

Payload:	10KG
Reach:	1400mm
Availability:

Quantity:



Inquire Add to Basket

Model:
FR10
Brand:
FAIR

Product Description

FR10 10kg Payload 6 Axis Collaborative Robot Arm

Product Features

FR-Series Cobot

Collaborative robots will extend your time and space, liberate complex and inefficient repetition, and let you embrace a wider horizon.In the future, You will see FAIR EVERYWHERE.
With its emergence, it not only improves the effciency of human-machine collaboration, but also speeds up the automation process for more enterprises and frees floor space and lowers the cost of implementing robots for manufacturers.

Teach device (optional) Cobot panel (optional)

Product parameters

Cobot parameters

According to dfferent payload and range, FAIR collaborative robot product line has five models: FR3, FR5,FR10,FR16&FR20.
The products are certified with CE, CR and ISO9001 quality management system, every robot joint has dual encoders so that can achieve higher precision. The open operating platform also lowers the barrier to use it in dfferent scenarios.

Model	FR3 /FR5		FR10
Movement	Range	Max. speed	Range	Max. speed
J1	±175°	163°/s	±175°	163°/s
J2	-95°/+70°	148°/s	-95°/+70°	148°/s
J3	-85°/+75°	223°/S	-85°/+75°	223°/S
J4	±180°	250°/s	±180°	250°/s
J5	±115°	270°/s	±115°	270°/s
J6	±360°	337°/s	±360°	337°/s

Model FR3/FR5/FR10

Model	FR3	FR5	FR10
Payload	3KG	5KG	10KG
Reach	622mm	922mm	1400mm
Range	6	6	6
HMI	10.1 inch teach pendant or mobile terminal APP
Repeatability	±0.02mm	±0.02mm	±0.05mm
Typical TCP speed	1m/s	1m/s	1.5m/s
IP classification	IP54 (Optional IP66)
Noise	＜65db
Robot mounting	Any orientation
I/O	Digital Input (DI) 2, Digital Output (DI) 2, Analog Input (AI) 1, Analog Output (AO) 1
Power supply	24V/1.5A
Communication	I/O, TCP/IP, Modbus_TCP/RTU, Profinet
Development environment	C#/C++/Python/Java/ROS
Footprint	130mm	150mm	190mm
Weight	About 15KGS	About 22KGS	About 40KGS
Operating temperature	0-45℃
Operating humidity	90%RH (non-condensing)
Machine material	Aluminium, Steel

Configuration

SAFTY BOX

CONTROL BOX

TEACH PENDANT (OPTIONAL)

Basic Size/Scope of Acitvities

Applications

The FR10 collaborative robot can be integrated into various manufacturing processes, including:

Welding · Material Handling · Machine Tending · Assembly · Pick and Place · Palletizing · Loading and Unloading · Industrial Automation

Product Details

After-sales Service

1） One year warranty for the whole machine, the welding torch, consumbles for welding torch and consumables for welding torch cleaning station are not included in the warranty. (see the equipment contract or consult the sales engineer for specific terms). 2) During the warranty period, the equipment will be repaired or replaced free of charge due to its own quality problems, and will be reimbursed for any man-made faults or damage caused by improper operation or failure to operate according to the instructions. 3）After the warranty expires, provide lifelong maintenance service for the product
