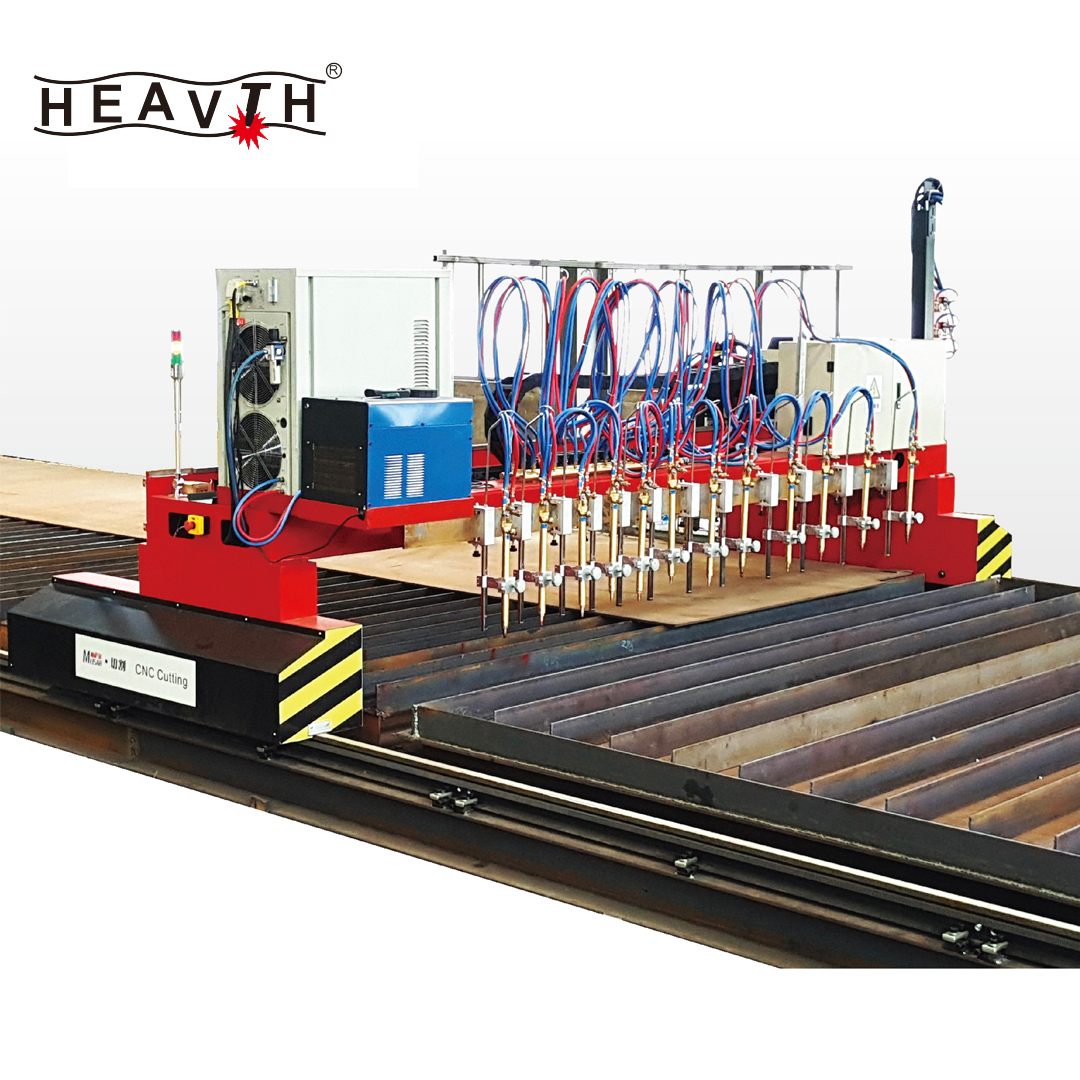

This series of flame cutting machine is a high efficiency and high performance equipment, which uses gantry type, single drive or double drive and combines cnc control, precision mechanism and oxygen cutting. This cnc flame cutting machine uses advanced cnc system from abroad, such as Spanish FAGOR and American Hypertherm. Its excellent cutting parameters, reliable and stable features ensure the perfect cutting effect.
| Quantity: | |
|---|---|
MS-5B
HEAVTH
MS-5B
Features
The whole machine adopts the welded steel plate welded structure. The beam is cut by laser cutting and then welded together. The upper and lower sides of the beam are bent by 90 degrees with the steel plate, which can reduce the deformation and increase the rigidity.
This equipment adopts manual adjustment (also can be equipped with overall lifting adjustment) to cut the gun. This equipment comes standard with wireless remote control device, which can operate the straight cutting torch more conveniently and improve work efficiency.
Technical parameter
| Model | MS-5B-4010 | |
| Machine structure | Laser cutting, steel plate weWing structure with heat treatment | |
| Rail spacing | 5000mm | |
| Rail length | 10000mm | |
| Effective cutting range | 3000 x 8000mm | |
| Input voltage | Single phase AV-220V | |
| input power | 2600W | |
| Running speed | 0-10000mm/min | |
| Operating accuracy | 0.2mm/m | |
| Number of straight cut guns | Customized according to customer requirements | |
| Torch lift | ≤ 160mm | |
| Flame cutting thickness | Piercing thickness: 5-60mm Edge cutting thickness: 5-200mm | |
| Plasma cutting thickness | According to the size of the plasma power supply | |
| Flame automatic ignition device | With flame automatic ignition device function | |
| Gas supply requirements | Acetylene / propane gas pressure ≤ 0.5MP | |
| Oxygen supply requirements | Oxygen maximum pressure ≤ 1.5MP | |
| Cutting table infrastructure | We will provide the gantry cutting table drawing for the user reference (basic equipment and H-beam by the customer to buy) | |
