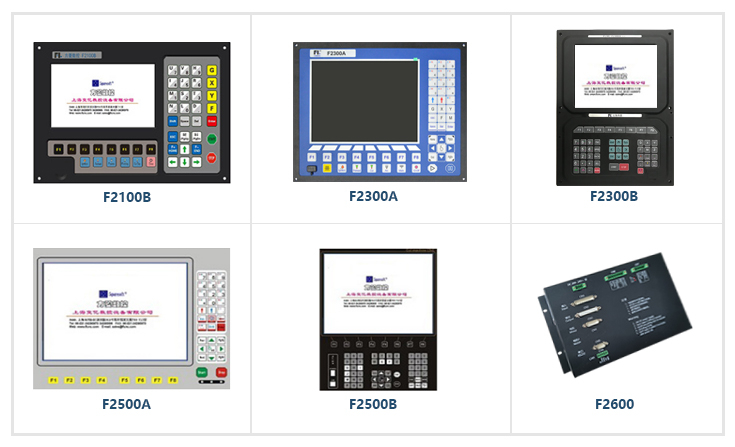

F2500B CNC CONTROL SYSTEM

TECHNICAL STANDARD
1) Control Axis:2
2) Control accuracy :+/-0.001mm
3) Coordinate range:+/- 99999.999mm
4) Max pulses : 200kHz Max speed:15000 mm/m
5) Max lines of code:150000lines
6) Max size of single code file:4M
7) Time resolution :10ms
8) Working Voltage: DC 24V in put
9) Working Temperature:-10℃-60℃. Relative Humidity, 0-95%.
Availability:
Quantity:
  • F2500B

  • HEAVTH

CHARACTERISTICS OF SYSTEM

1)17 inches 1024*768 dots color LCD, USB interface.

Man-Machine-Dialog software and Professional Hot Key design for easy cutting operation,

user-friendly as Hypertherm’s EDGE controller.

2)Multi-language file system and menu, and the menu can be switched only by one key.

3)DSP core can control the machine move in high speed accurately, stably and in low noise.

4) Long-distance remote control can control the machine to move forward ,backward, left,

right and cutting start, stop and so on (optional configuration).

5) Support the EIA code (G code) and various FastCAM、FreeNest、SmartNest、IBE softwares.

6) compact keyboard design and easy to input files.

7) Operations such as Proportion Zoom, Rotate, Mirror, Array display, Steel plate angle

adjust…..all available and have professional solution in the CNC controller.

8) Coordinate system can be customized to support the two-dimensional coordinates of all

eight kinds.

9) All input and output port type and the number can be customized (normally open or

normally closed)

10) System Self-diagnosis for easy trouble-shooting.

11) all functions and techniques can upgrade online

12)Import and export files by single or all files.

13) Support the Flame, Plasma, Dusting draw and Demonstration four kinds of mode.

14) Flame and Plasma are separated in the control IO ports.

15) Support THC, two level preheat, three level pierce in flame mode.

16) Plasma arc feedback, positioning feedback, automatically shut down the arc at the corner.

17) Support edge cutting. It can save the preheat time for the thick steel plate.

18)Movement speed can be real-time acceleration, deceleration.

19)According to plate thickness, the cutting speed is automatically restricted by a speed limit in the corner, effectively preventing over burn.

20)Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking

cut-off point under zooming state.

21)Automatically memorize the working situation and the last cutting point when power off.

22) "Cutting offset" function can avoid waste the steel plate when the nesting of the plate is

calculated wrong.

23)set up different administration authority and the corresponding password to safeguard the interests of managers.

TECHNICAL STANDARD

1) Control Axis:2

2) Control accuracy :+/-0.001mm

3) Coordinate range:+/- 99999.999mm

4) Max pulses : 200kHz Max speed:15000 mm/m

5) Max lines of code:150000lines

6) Max size of single code file:4M

7) Time resolution :10ms

8) Working Voltage: DC 24V in put

9) Working Temperature:-10℃-60℃. Relative Humidity, 0-95%.

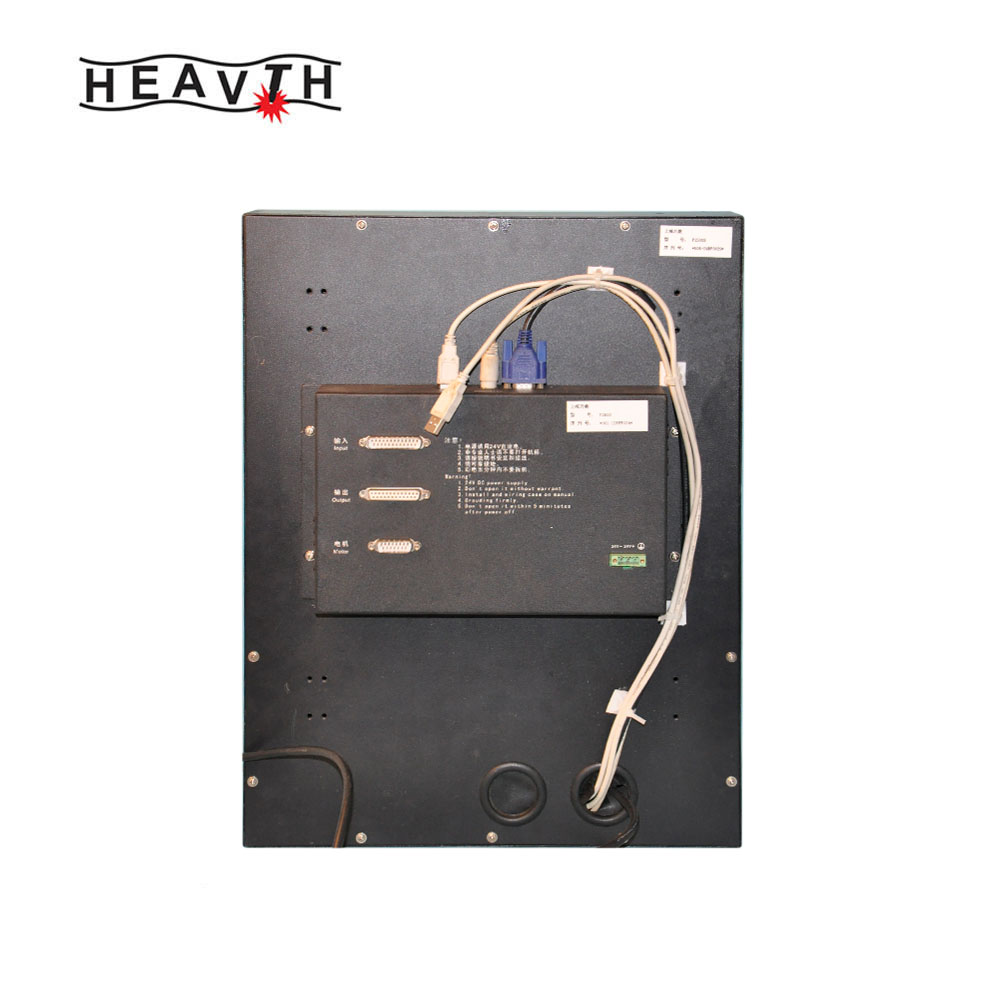

SYSTEM INTERFACE

1) 15 pins interface of 2 axis of motor drive.

2) 25 pins interface of 16 channels optical couple output ports,max back flow current 300mA.

3) 25 pins interface of 16 channels optical couple input ports,max output current 300mA.

4) USB interface on the front panel.

5) Extend IO input/output ports, PWM input ports, analog input ports.

HARDWARE CONFIGURATION

1) Monitor:17 inch, 1024*768, high definition 16 million colors and high brightness LCD or 10.4 inch 800*600, 26 million color LCD.

2) Memory: 64M SDRAM

3) Memory available for user: 256M or 1G electronic hard disk

4) System master frequency: 400MHz

5) USB: USB 1.1 front interface

6) Keyboard: electronic PCB foil keyboard( one machine) or standard industrial keyboard(split type machine)

7) Chassis: full-steel structure completely shielded which defends electromagnetic radiation, interference and static electricity.
