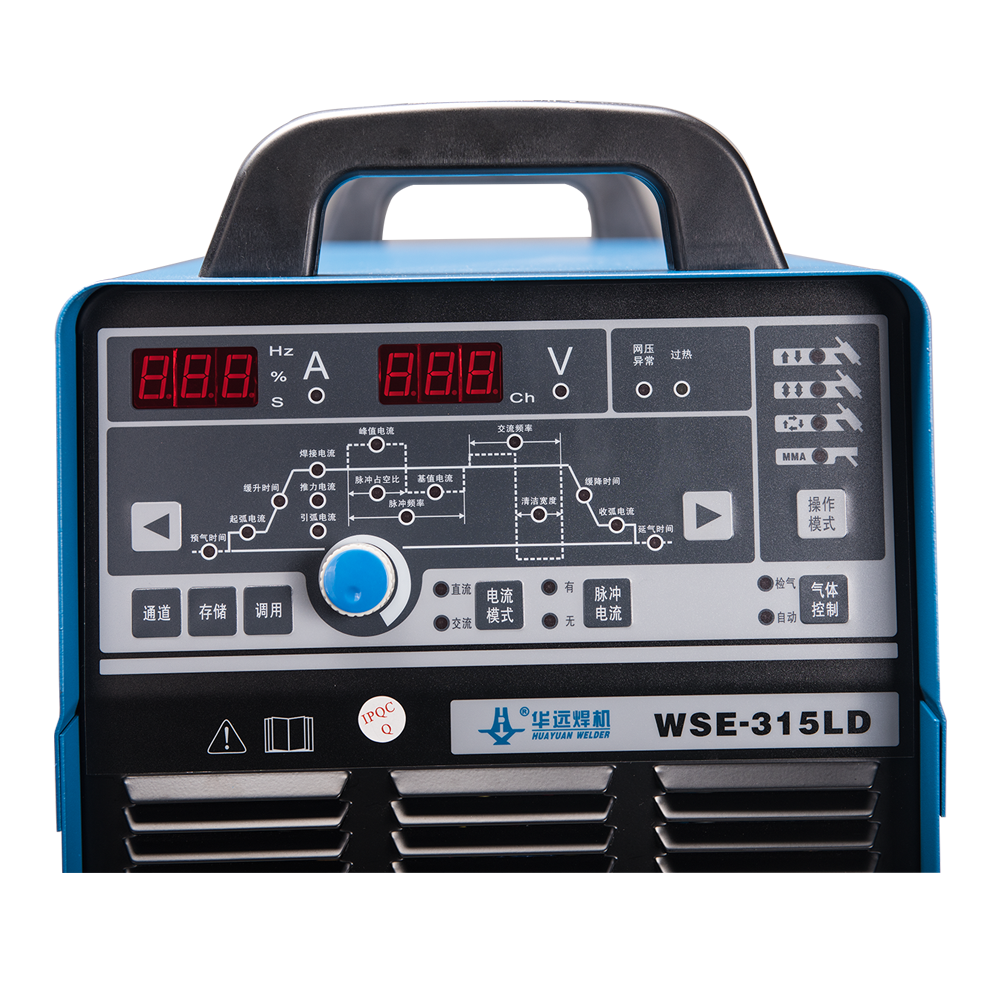

WSE-315MD/500HD Digital controlled Inverter AC/DC Pulsed Argon Arc Welding Machine

Main Features

1. Adopting digital control technology, important elements like digital cored, IGBT module are world famous brand

2. Important elements and connections are all dealt with anti-dust, anti-humid, and anti-crossive measurement

3. AC frequency with and clean width wide range adjust,Panel is easy to manipulate

4. TIG and MMA parameter can be preset, storage and selection

5. With remote control connection which is easy to control

6. With gas check function, the machine is easy to adjust the argon flow.

Product Application

Suitable for Aluminum, copper, carbon steel and steel alloy welding

Widely used in aerospace, ship building, pressure vessel, automobile, motorcycle and bicycle, etc..

Availability:

Quantity:



Inquire Add to Basket

Model:
WSE-315MD/500HD
Brand:
Huayuan

Product Description

Model Parameter		WSE-315MD	WSE-500HD
Input power		3～ 380V±15% 50/60 Hz
Rated input capacity(KVA)		11.9	21
Rated input current(A)		18.2	31.8
Open circuit voltage(V)		82	85
Rated welding current(A)		315	500
Rated welding voltage(V)		22.6	30
Rated duty cycle(%)		35%	60%
Gas pre-send time(S)		0.0～5.0
Initial current adj. range(A)	AC	20～315	20～500
	DC	10～315	10～500
Current upslope time(S)		0.0～10.0
Welding current adj. range(A)	AC	20～315	20～500
	DC	10～315	10～500
Peak current adj. range(A)	AC	20～315	20～500
	DC	10～315	10～500
Pulse frequency (Hz)		0.2～100
PWM ratio (%)		10%～90%
Base current adj. Range (A)	AC	20～315	20～500
	DC	10～315	10～500
AC frequency (HZ)		20～200
Clean width (%)		10%～50%
Current down-slope time (S)		0.1～15
Crater current adj. Range (A)	AC	20～315	20～500
	DC	10～315	10～500
Gas post-cut off time (S)		0.0～20.0
Dimension (L×W×H)(mm)		685×335×635	685×335×764
Weight (kg)		55	73
