3000w
Reci

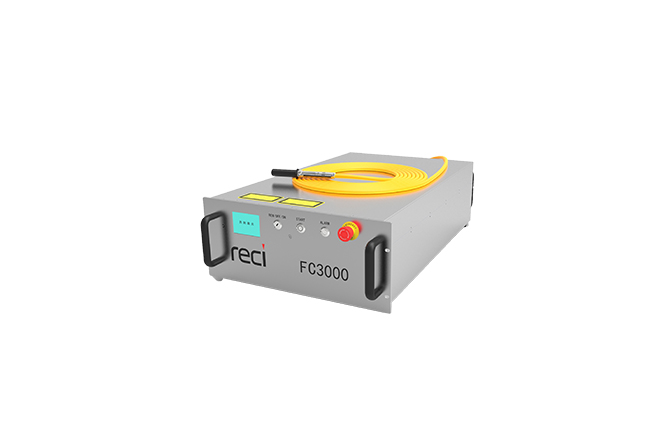

Model | FC 3000 |
Output Power(W) | ≥3000 |
Central Wavelength(nm) | 1080±3 |
Operating Mode | CW/Modulate |
Output Power Regulation Range(%) | 10~100 |
Max Modulation Frequency（kHz） | 20 |
Power Instability(%) | < 3 |
Indicated Red Light Power(mW) | ＞0.5 |
Beam Delivery Optics | QBH |
Output Fiber Diameter(μm） | 50 |
Delivery Fiber Length(m) | 20 |
Operating Voltage(VAC) | 380V±10%、50/60Hz |
Max Power Consumption(W) | <10600 |
Control Model | External/Local AD |
Ambient Temperature(℃) | 5~40 |
Ambient Humidity(％) | <70 |
QBH Cooling Water Temperature(℃) | Room temperature |
Storage Temperature(℃) | -10~60 |
Cooling Temperature(℃) | 25(Summer 28) |
Cooling Flow(L/min) | ＞35 |
Size W*H*D（mm³）(with hand-piece) | 483×148×532 |
Weight（kg） | <75 |
Model | FC 3000 |
Output Power(W) | ≥3000 |
Central Wavelength(nm) | 1080±3 |
Operating Mode | CW/Modulate |
Output Power Regulation Range(%) | 10~100 |
Max Modulation Frequency（kHz） | 20 |
Power Instability(%) | < 3 |
Indicated Red Light Power(mW) | ＞0.5 |
Beam Delivery Optics | QBH |
Output Fiber Diameter(μm） | 50 |
Delivery Fiber Length(m) | 20 |
Operating Voltage(VAC) | 380V±10%、50/60Hz |
Max Power Consumption(W) | <10600 |
Control Model | External/Local AD |
Ambient Temperature(℃) | 5~40 |
Ambient Humidity(％) | <70 |
QBH Cooling Water Temperature(℃) | Room temperature |
Storage Temperature(℃) | -10~60 |
Cooling Temperature(℃) | 25(Summer 28) |
Cooling Flow(L/min) | ＞35 |
Size W*H*D（mm³）(with hand-piece) | 483×148×532 |
Weight（kg） | <75 |
