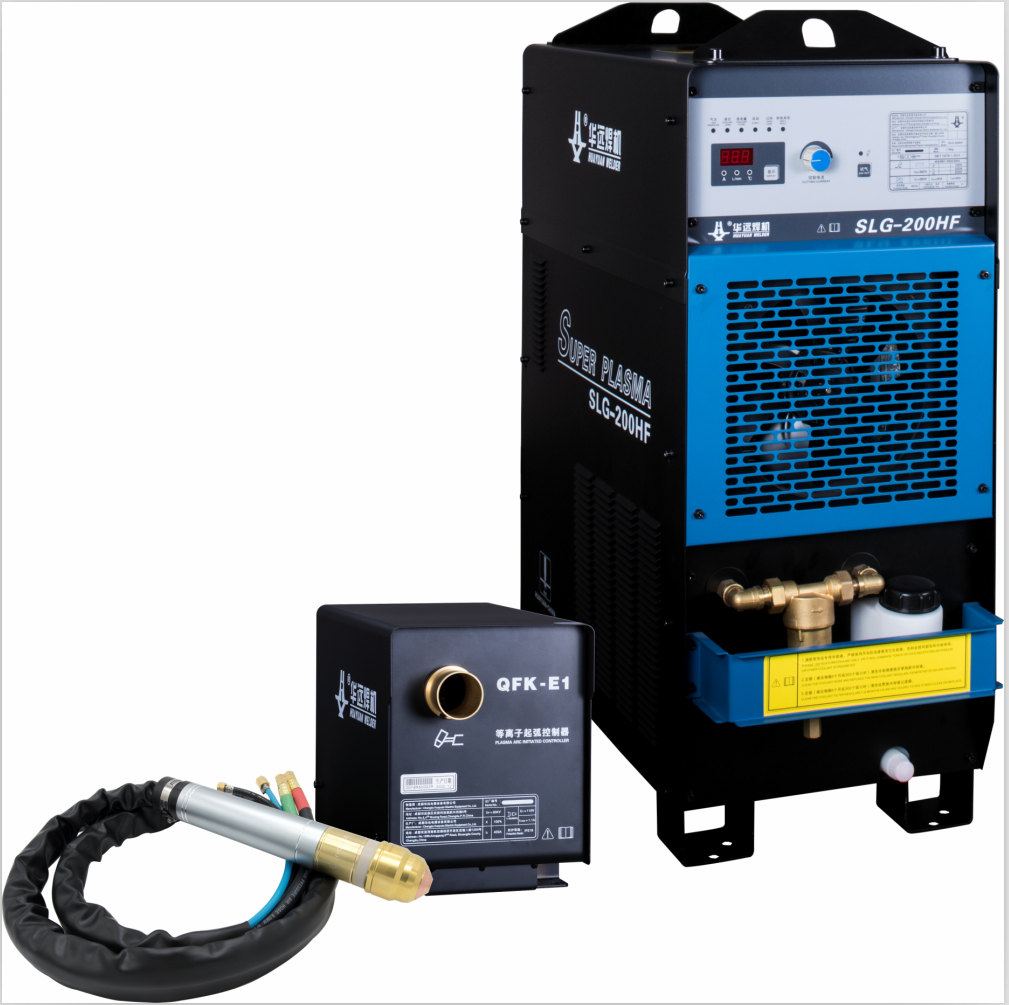

1. A professional plasma power sourceespecially for robot and CNC machine cutting
2. Excellent HF arc striking controltechnology and separate structure of HFcontroller & power source, which highly reduces HF interference
3. Isolation technology is adopted incommunication signal, which ensures stable communications and strong anti-interference
4. Gas control separate from the powersource: shorter gas circuit, more stable gas pressure with good cutting quality
5. 100% rated duty cycle for heavy industryuse
6. Cutting current up-slope technology toreduce consumption of torch consumables
7. With gas pressure detecting anddisplaying function
8. With automatic protection function ofover-heating, over-voltage, lack-voltage and default phase
9. Torch cooling system built inside, whichis with high-lift pump and high power radiator to reduce the consumption oftorch consumables
10. With coolant flow and temperature detectingfunction to protect the plasma torch
11. With both digital and analog signalinterface, can connect with most robots and CNC cutting
It’s mainly used in cutting process ofcarbon steel, alloy steel and nonferrous steel
Availability: | |
---|---|
Quantity: | |
Item | Unit | Model | |||
SLG-125HF | SLG-200HF | SLG-300HF | SLG-400HF | ||
Input Power | V/Hz | 3~380±15% 50/60 | |||
Rated Input Capacity | kVA | 22 | 53 | 72 | 96 |
Rated Input Current | A | 33 | 80 | 110 | 145 |
Rated Output Current/Voltage | A/V | 125/130 | 200/200 | 300/200 | 400/200 |
Rated Open Circuit Voltage | V | 310 | 360 | 370 | 370 |
Rated Duty Cycle | - | 100%(40℃) | 100%(40℃) | ||
Efficiency | - | 90% | 93% | 93% | 93% |
Power Factor | - | 0.82 | 0.79 | 0.89 | 0.89 |
Output Current Adjust Range | A | 30~125 | 40~200 | 60~300 | 60~400 |
Arc Voltage Output Ratio | - | 1:1 | 1:1 | ||
Arc Striking Mode | - | Non-Contact | Non-Contact | ||
Plasma Gas | - | Air/N2 | Air/N2/O2 | ||
Shielding Gas | - | - | Air/N2 | ||
Air Pressure | MPa | 0.4~0.6 | 0.4~0.6 | ||
Quality Cut Thickness (Carbon Steel) | mm | 20 | 25 | 32 | 40 |
Insulation Grade | - | F | F | ||
Power Source Cooling Mode | - | Air Cooling | Air Cooling | ||
Ingress Protection | - | IP21S | IP21S | ||
Dimension (L*W*H) | mm | 670×320×600 | 900×410×1000 | 1050×480×1275 | 1050×480×1335 |
Arc Ignition Controller Net Weight | kg | 4.5kg | 7.5kg | ||
Power Source Net Weight | kg | 49kg | 114kg | 200kg | 220kg |
