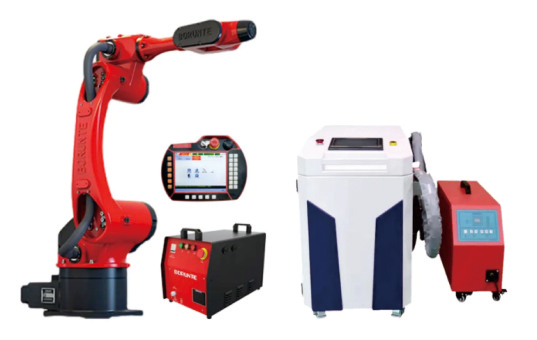

RL -1000C/RL -1500C/RL -2000C/RL -3000C
HEAVTH
Features
1. Suitable for various 3D surface welding;
2. Instantaneous energy laser welding, stable, small thermal deformation;
3. Ensure welding quality and high product consistency
4. Reduce labor participation and save labor costs
5. Effectively reduce welding consumables, save energy and protect environment.
6. Semi automatic or fully automatic fixture can be customized
7. After the data control system is equipped, the entire production process is intelligent and controllable, the capacity is visualized, and the production process can be improved at any time.
Robot arm laser welding machine use 6-axis robot.pdf
Parameter
| Model | RL -1000C | RL -1500C | RL -2000C | RL -3000C |
| Type of laser | Continuous fiber laser | |||
| Rated output power | 1000W | 1500W | 2000W | 3000W |
| Laser central wavelength | 1080±3 nm | |||
| Length of welding cable | 10M | |||
| Type of welding torch | Single or doublewobble industrial welding head | |||
| Focal distance | F=150mm/F=400mm | |||
| Laser beam point | Point, line, circular, square, figure 8 | |||
| Industrial 6-Axis Robot | ABB, Kawasaki, KUKA, FANUC | |||
| Working voltage | AC220V 1-phase | AC380V 3-phase | ||
| Power | <5 kw | <7 kw | <9.5kw | <12kw |
