Cutting size: | |
---|---|
Color: | |
Availability: | |
Quantity: | |

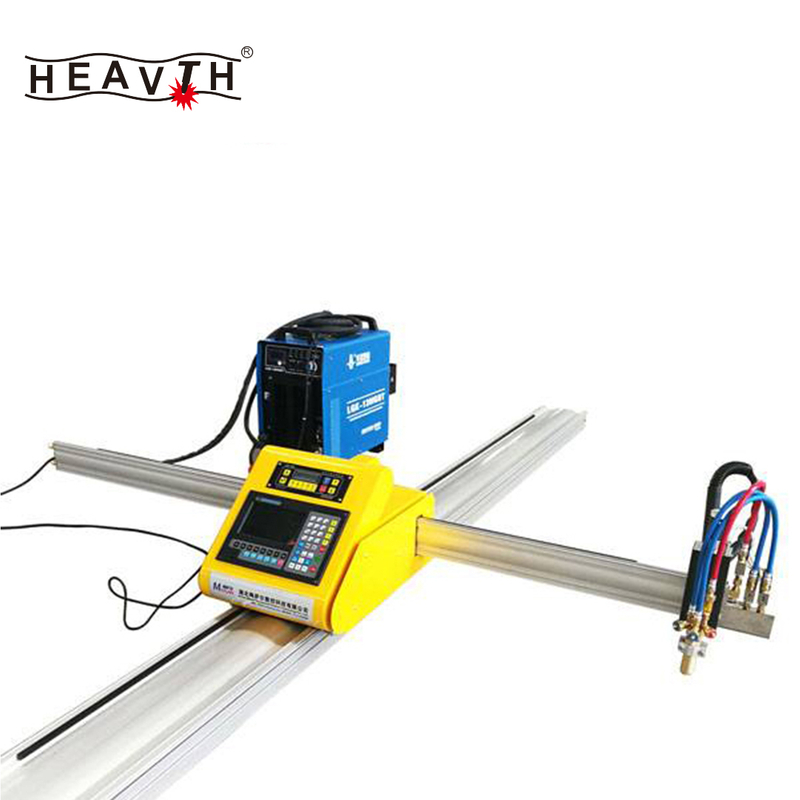

Portable CNC cutting machine series is a high-precision portable CNC flame / plasma cutting machine, its affordable, easy to use and easy to learn more accurate. Than the original cutting machine processing format larger, thicker cutting thickness. For wider,High strength, durable for a long time Effectively reduce processing costs. Machine covers an area of small, fully effective equipment to play the effectiveness.a high efficiency and high performance equipment.
Product Name | Portable Flame and Plasma CNC cutting machine |
Model | MS-1530HDX |
Control System | Fang Ling F2100B |
Motor | 57 Stepper Motor |
Color | Red,Blue,Yellow. |
Cutting Mode | Plasma Cutting+ Flame Cutting |
Flame Cutting Gas | Oxygen with propane or acetylene |
Plasma Torch Gas | Compressed air/N2/O2 |
Working Area | 1500mm*3000mm |
Cutting thickness | 0-150mm |
Cutting speed | 0-8000mm/min |
Operation precision | 0.2mm/m |
1.Cross beam driving model, enables a more stable balance movement, avoid the head declining due to gravity
2.Reasonable cutting area: effective 1.5m*3.0m, suitable most common sheet 4ft*8ft
3.Light and smart, no fixed place occupation, sustain cutting on sheet directly
4.Simple structure, easy for packing, delivery, installation and disassemble
5.Overall processing alloy base, assure light and precise, no base shape deformation
6.Cross beam and rail both with linear guide, high accuracy good stability moving
7.With motor enable/disable button, ensure operator and machine safety and start position random select,
Heavth CNC is one of the biggest suppliers among cutting equipment in east China. Company mainly engage in CNC plasma cutting machine, CNC laser cutting machine, CNC Pipe/Tube cutting machine, etc. Heavth CNC has 14 years history, serving more than 80 countries and regions.
Heavth CNC has strict quality control system and quality management team. Strictly adhere to the general standards of the industry and company guidelines. Implement quality monitoring from every aspect of R&D, production and after-sales of laser equipment, to ensure that each device can meet customer’s requirements.
For every part of the machine, Heavth CNC is strictly control the quality.
Not only require suppliers to provide quality inspection reports, but also strict quality monitoring will be carried out when the parts are in the factory.
Plasma Source Test | Rack Detection | Step Motor / Driver Testing | |
Stability test and cutting test for plasma power source. | It is formed by 4000 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 | The precision and consistency between gear and rack are mainly tested | We will adjust the suitability of the machine through continuous empty experiments. |
The assembly process of the machine will also affect the customer's feeling when using the machine, Therefore, in the process of machine assembly, Heavth CNC from the most basic machine bed to the final assembly of the whole machine is strictly followed by the quality management standard.
Installation | Guide Rack Mounting | Other Hardware Parts Installation | Drawing Test |
Testing the flatness and straightness of the track to ensure that the machine runs smoothly. | The straightness and perpendicularity of the guide rack are very important to the cutting accuracy of the machine | we install the step motor strictly according to standard production process and standard | Ensure the cutting accuracy through drawing testing, and make sure the machine will be in the best condition. |
The machine will accept a number of quality testing, respectively, from the performance, stability, fit, practical and other aspects of consideration, for non-compliance with the standard part of the arrangements for debugging and maintenance. To ensure that the final factory, the machine is in the best condition.
Inspection Report | Flame Cutting Test | Plasma Cutting Test | Machine packing |
Every component of the machine, every performance, every parameter is carefully tested. | Ensure the cutting accuracy through checking and testing, And make sure the machine will be in the best condition. | Before delivery, different metal materials will be cut, observe the cutting effect, and then adjustment according to the need. | The equipment requires multiple protective measures during the packing process to ensure that each component is not affected by the collision |
Changzhou Heavth Science& Technogy CO.,LTD. was established in 2006.
We have many years of practical experience in motion control, software and hardware development, industrial automation, etc., .
Development and design of various types of CNC cutting machine and related accessories are widely used in the large number of industrial circle. Available to the user the best price, the most suitable CNC cutting machine. From the customer interests, according to the actual needs of customers, to provide the most economical and most effective CNC cutting solution.
Company research, production, operating as one, strong technical force, advanced production equipment, detection means complete, excellent product quality. Products covering the United States, Japan, Europe, South Korea, etc.
Q1:Does the machine can be customized according to my requirements?
