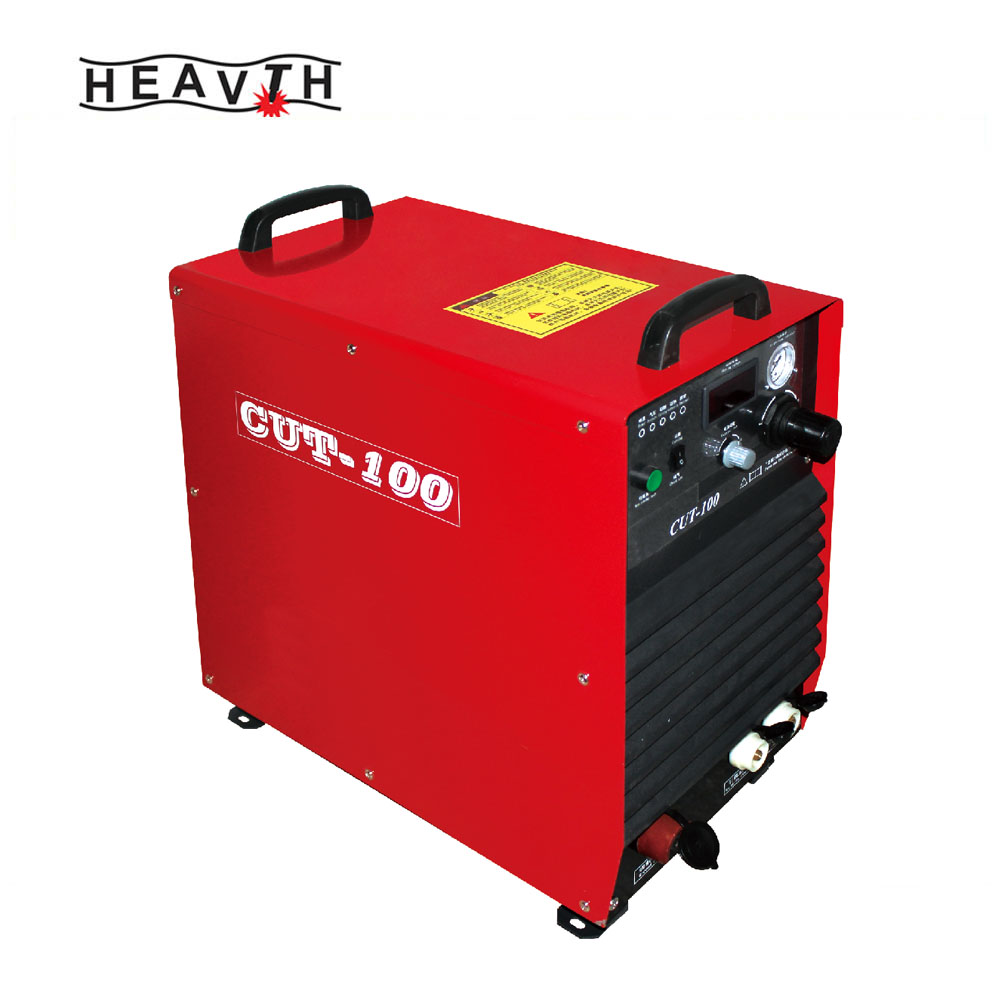

Plasma power supply for CUT100 machine

Availability:
Quantity:
Inquire Add to Basket

  • CUT100

CUT-100 series technical specification parameter table

Name

Technical parameter

CUT—100

CUT—100B

CUT—100E

Arc ignition method

Low power high frequency

High voltage pulse

Arc

(Hypertherm arc ignition method)

Matching torch (7m cable)

Dual air-cooled torches HC-1001

1650-G3

(Imitating Hypertherm torch)

Description of arc ignition characteristics

Reliable

No interference

Totally free of distractions

Suitable for cutting board thickness

Thin, medium, thick

Medium and thick

Medium

Rated input voltage（V）

50HZ/3~380±10%

Rated input power (KVA）

16.8

DC no-load voltage（V）

315

DC working voltage（V）

94-120

DC working current（A）

30—100

Duty cycle（%）

100

Calculation period（min）

60

Input air pressure（MPa）

0.7

Air flow（L/min）

130

Dimensions length, width, height（cm）

70×32×61

Machine weight（kg）

45
