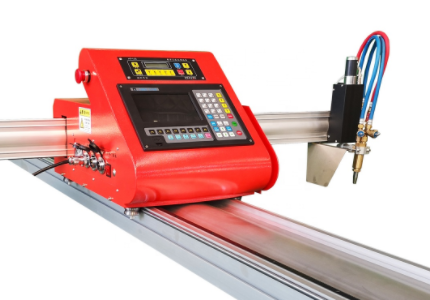

◆ Ergonomic operation unit
◆ Flame and Plasma function
◆ High-strength 6063+ aluminum alloy
◆ High-precision Level-7 gear rack
◆ Portable & Light weight
◆ Multi language switchable
◆ Extendable Cutting Range
◆ 2-Year warranty insurance
MetalSmart Portable CNC Cutting Machine.pdf
| Specifications | |
| Effective Cutting Width | 1,550 mm (5 ft.) or 2,000 mm (7 ft.) |
| Effective Cutting Width | 3,100 mm (10 ft.) Customizable |
| Maximum Speed | 6,000 mm/min (240 IPM) |
| Operating Accuracy | 0.3mm/m |
| Flame Cutting Thickness | 5-150mm (0.2~6 in.) |
| Plasma Cutting Thickness | Decided By Plasma Source |
| Total Weight | 130 kg (211 Ibs.) |
| Input Voltage | AC220V or AC110V, 50/60 Hz |
| Plasma Source | CUT60 | CUT120 | CUT200 | CUT300 | MAX105 | MAX125 |
| Cutting current | 60A | 120A | 200A | 300A | 105A | 125A |
| Recommended cut | 10mm | 18mm | 25mm | 35mm | 16mm | 20mm |
| Maximum cut (Pierce cut) | 12mm | 20mm | 30mm | 40mm | 18mm | 22mm |
| Duty cycle | 100% 50A | 100% 100A | 100% 200A | 100% 300A | 100% 105A | 100% 125A |
| Plasma torch | 7.5M P80 | 7.5M 120A | MS-300A | MS-300A | Low freq 105 | Low freq 125 |
| Mains Supply | AC220V 1PH | AC220V 3PH | AC380V 3PH | AC380V 3PH | AC380V 3PH | AC380V 3PH |
| AC380V 3PH | AC380V 3PH |
√ The CUT Series plasma source using high frequency arc ignition current eliminates interference and provides strong pilot arc for quick and reliable starting.
√ The MAX Series plasma source using low frequency arc ignition current, no interference and better effect. The torch is using 105A (220842, 220990), 125A (220971, 220975)
√ Above 200A plasma source using water chiller to cooling the machine and torch.
√ Better heat dissipation design of the plasma make the cutting consumable long life.
MetalSmart Series Portable CNC cutting machine used new version of CNC controller with many new features:
√ 7 inch high definition 16 million colors and high brightness LCD
√ Memory: 64M SDRAM
√ Built-in Library of Commonly used figures
√ Break-point & Power-cut Restoration
√ Program space available for user: 256M electronic hard disk
√ Control accuracy: +/-0.001mm
√ Coordinate range: +/- 99999.99mm
