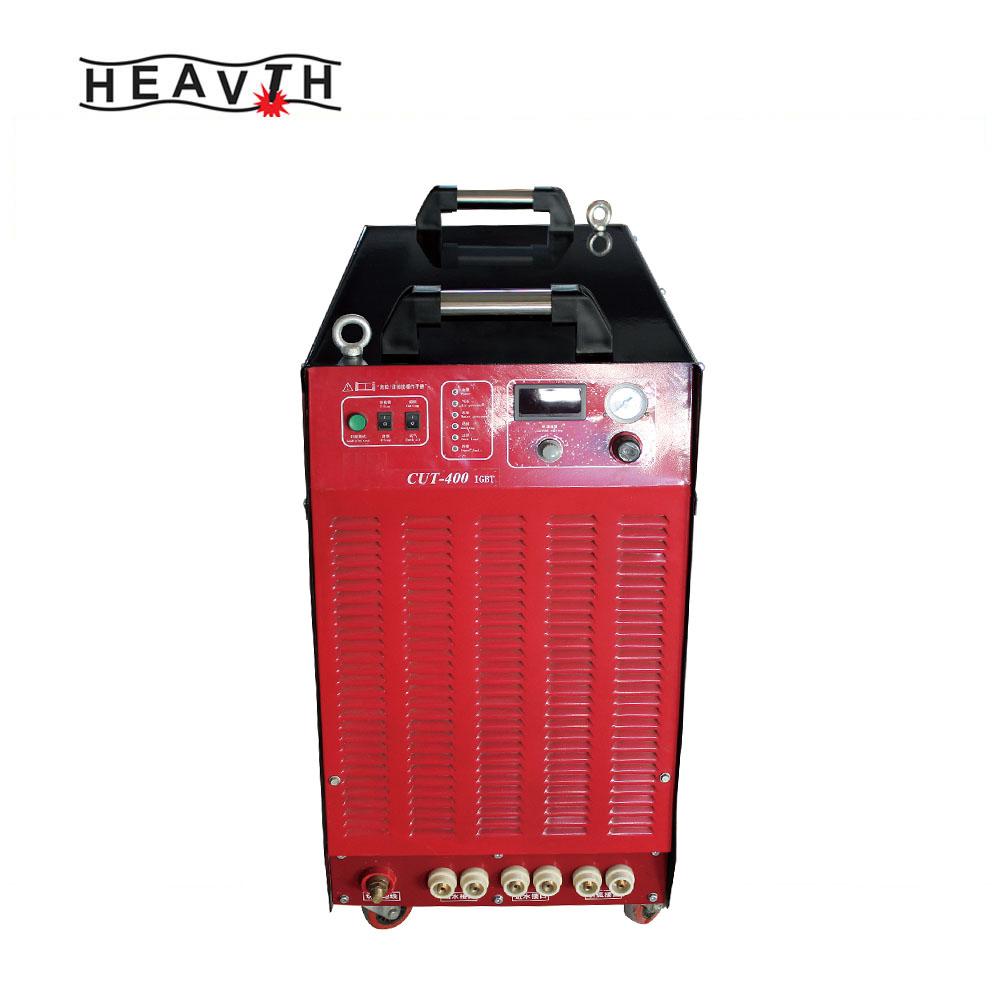

Machine plasma power supply CUT-400

Adopt international advanced full-bridge soft-switching technology
Plasma power supply current 80A-400A steplessly adjustable
The verticality of the cutting surface is good, and the cutting of carbon steel can be within 5°
Adopt self-developed cutting torch, with strong penetrating ability and good verticality
Built-in overcurrent, overpressure, air pressure, temperature, water pressure and other multiple protections.
Suitable for CNC cutting machines and robots
Temporary load rate of 100%, can work for a long time

Availability:

Quantity:



Inquire Add to Basket

Model:
CUT-400

Product Description

400A technical parameters

Input voltage	V	3×380（50Hz）±10%
Input power	KVA	90
Cutting current	A	80－400
Duty cycle	－	400A／100%
Cutting thickness Perforation thickness Quality Cut Thickness Maximum cutting thickness	mm	(depending on the material, for reference only) 35 55 75
Cutting gas	－	Air (nitrogen)
Gas flow	L／min	250
Gas pressure	MPa	0.6
Cooling method	－	water cooling
Power supply weight	Kg	200
Dimensions	Cm	75×60×85 (L×W×H)
