1. Highrated duty cycle, specially for heavy industry use
2. Wideadaptive capacity of voltage fluctuation
3. Good dust-proofdesign, high reliability
4. Thegouging current can be preciously pre-set, step-less adjustable
5. Withair pressure detecting function, highly improve the torch consumable life
6. Withautomatic protection function of over-heating, under-voltage and default phase
7. Thecutting capacity is as excellent as LGK-120/200IGBT
8. It'smainly used for gouging carbon steel, stainless steel, aluminum and alloys
9. Widelyused in shipyard, pressure vessel and steel structure industries
| Quantity: | |
|---|---|

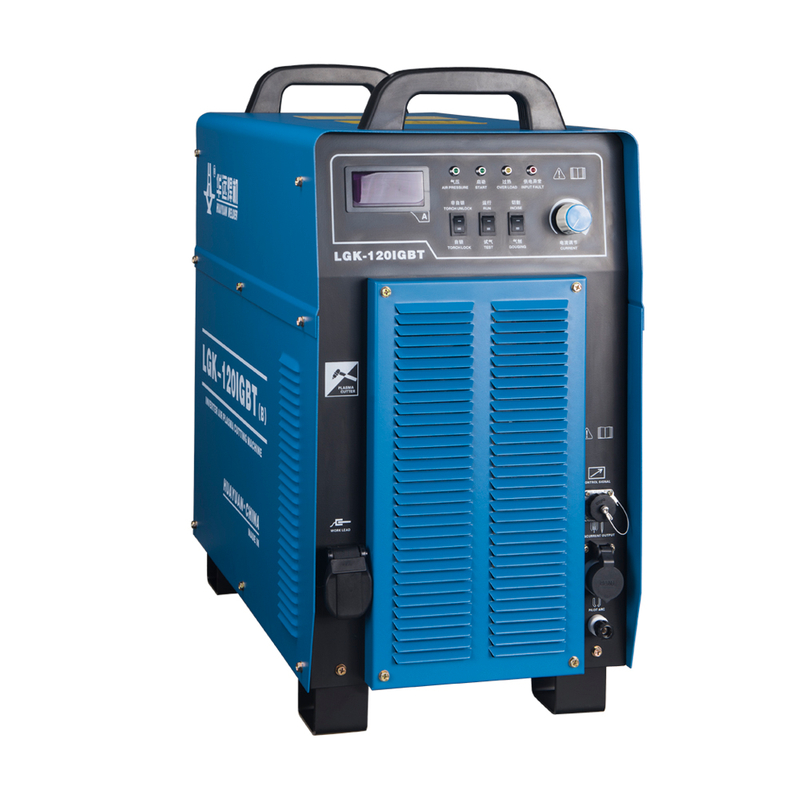

LGK-120/200IGBT-B
Huayuan
Item | Unit | LGK-120IGBT-B | LGK-200IGBT-B | ||
Gouging | Cutting | Gouging | Cutting | ||
Input Power | V/Hz | 3～380±15％ 50/60 | |||
Rated Input Capacity | kVA | 34.4 | 22.4 | 55 | 46.7 |
Rated Input Current | A | 52.3 | 34 | 83.6 | 71 |
Rated Output Current | A | 120 | 200 | ||
Rated Output Voltage | V | 200 | 128 | 200 | 160 |
Rated Open Circuit Voltage | V | 380 | |||
Rated Duty Cycle | - | 100%（40℃） | |||
Output Current Adjust Range | A | 30~120 | 40~200 | ||
Arc Voltage Output Ratio | - | 1:1/1:20/1:50/1:100 | |||
Quality Cut Thickness (Carbon Steel) | mm | - | 0.3~25 | - | 1~45 |
Severance Cut Thickness (Carbon Steel) | mm | - | 45 | - | 65 |
Plasma Gas | - | Air | |||
Air Pressure | MPa | 0.4~0.5 | 0.4~0.6 | 0.4~0.5 | 0.4~0.6 |
Torch Cooling Mode | - | Air Cooling | Water Cooling | ||
Power Source Cooling Mode | - | Air Cooling | |||
Insulation Grade | - | F | |||
Ingress Protection | - | IP21S | |||
Dimension（L×W×H） | mm | 675x320x605 | 800x380x810 | ||
Net Weight | kg | 48 | 83 | ||
Item | Unit | LGK-120IGBT-B | LGK-200IGBT-B | ||
Gouging | Cutting | Gouging | Cutting | ||
Input Power | V/Hz | 3～380±15％ 50/60 | |||
Rated Input Capacity | kVA | 34.4 | 22.4 | 55 | 46.7 |
Rated Input Current | A | 52.3 | 34 | 83.6 | 71 |
Rated Output Current | A | 120 | 200 | ||
Rated Output Voltage | V | 200 | 128 | 200 | 160 |
Rated Open Circuit Voltage | V | 380 | |||
Rated Duty Cycle | - | 100%（40℃） | |||
Output Current Adjust Range | A | 30~120 | 40~200 | ||
Arc Voltage Output Ratio | - | 1:1/1:20/1:50/1:100 | |||
Quality Cut Thickness (Carbon Steel) | mm | - | 0.3~25 | - | 1~45 |
Severance Cut Thickness (Carbon Steel) | mm | - | 45 | - | 65 |
Plasma Gas | - | Air | |||
Air Pressure | MPa | 0.4~0.5 | 0.4~0.6 | 0.4~0.5 | 0.4~0.6 |
Torch Cooling Mode | - | Air Cooling | Water Cooling | ||
Power Source Cooling Mode | - | Air Cooling | |||
Insulation Grade | - | F | |||
Ingress Protection | - | IP21S | |||
Dimension（L×W×H） | mm | 675x320x605 | 800x380x810 | ||
Net Weight | kg | 48 | 83 | ||
