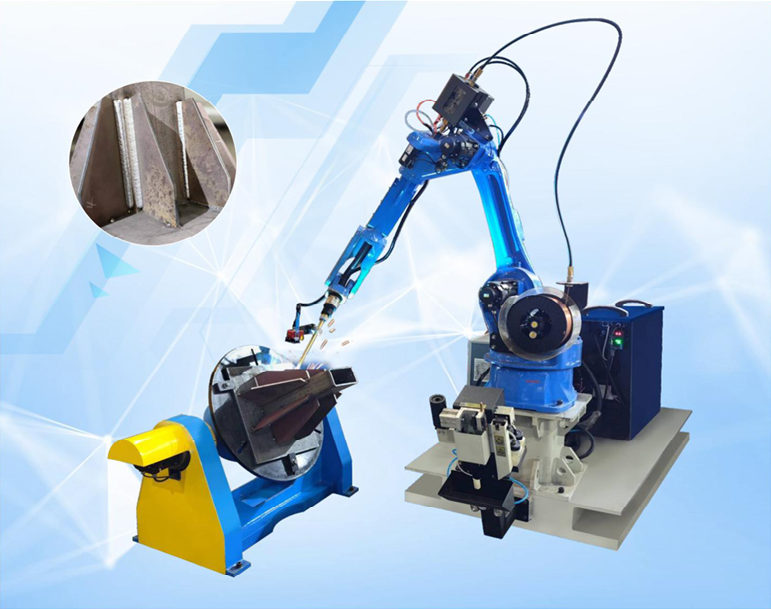

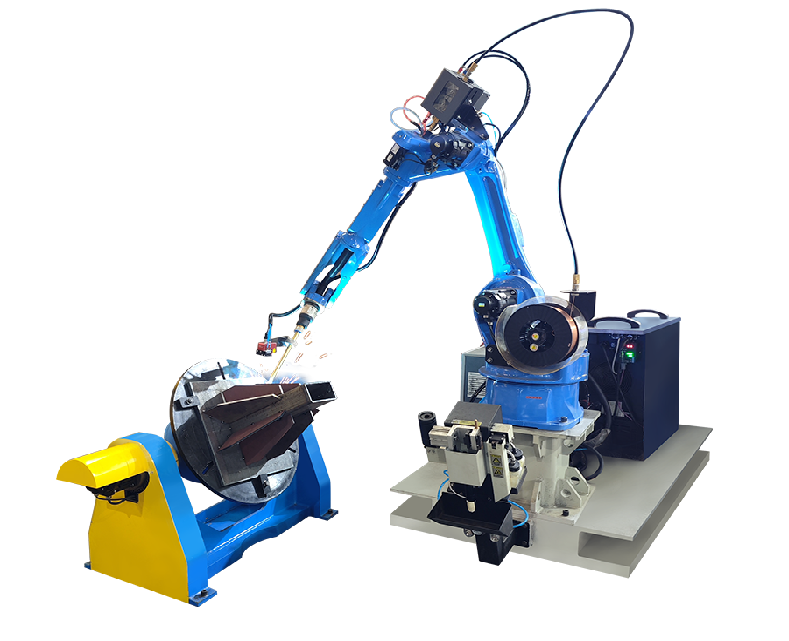

Industrial Welding Robot Workstation

Equipment Overview:

Unique appearance, adopting a hollow structure arm and wrist, compact welding cable built-in structure, can be used for welding operations in narrow spaces, lightweight, dustproof and drip proof, high safety, installed with a body cover, can be used with confidence in various harsh environments. Large working space, fast running speed, high repeatability positioning accuracy, suitable for small specifications and large quantities of products, can be matched with robots for automatic feeding, reducing manual labor and welding, beautiful weld formation, and good consistency. Robot equipped with automatic gun cleaning device.

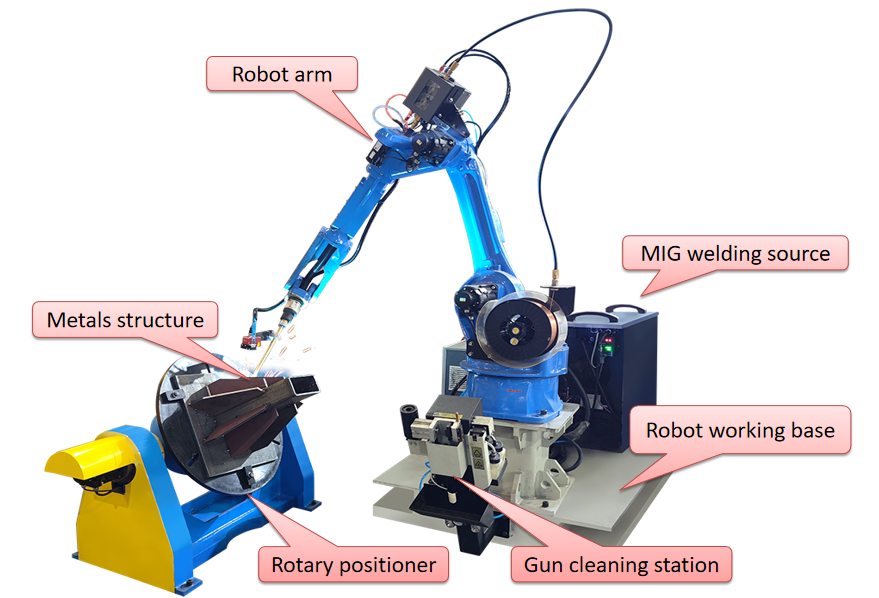

Equipment composition：

This workstation is specially designed for metal structural components and is used for robot automatic welding. The workstation mainly consists of the following parts:

(1) Six axis welding robot;

(2) MIG-500A welding power supply kit;

(3) Dual axis rotary positioner;

(4) Welding and fixing fixtures;

(5) Welding specialized gun cleaning station;

(6) PLC control system;

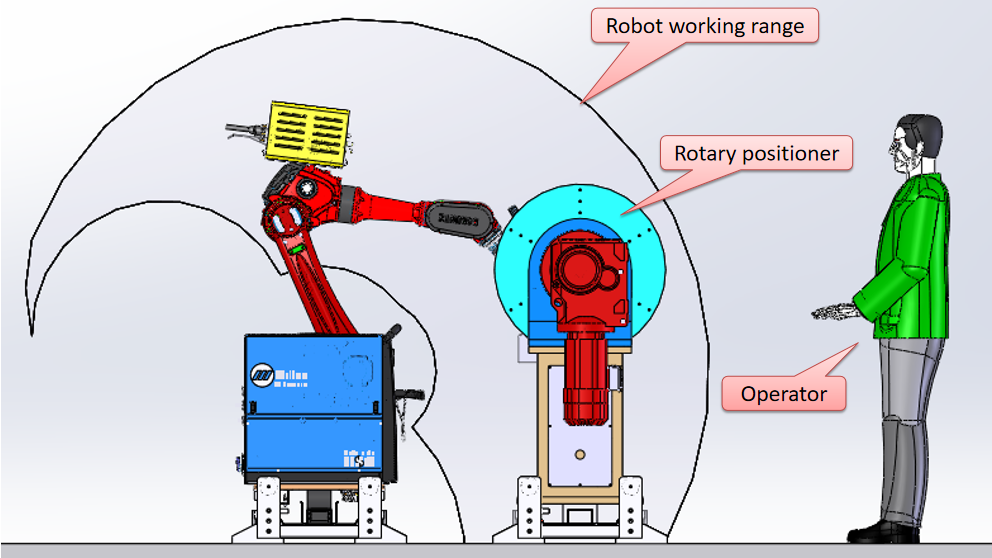

Design scheme

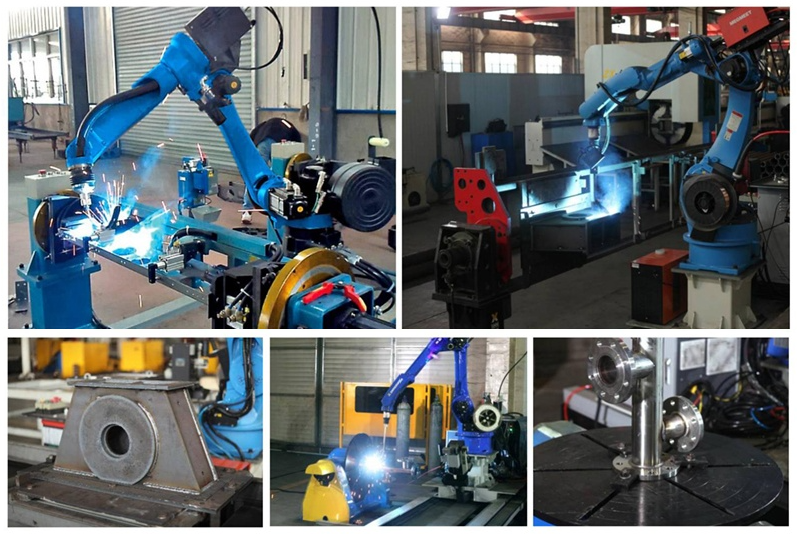

Case Presentation
