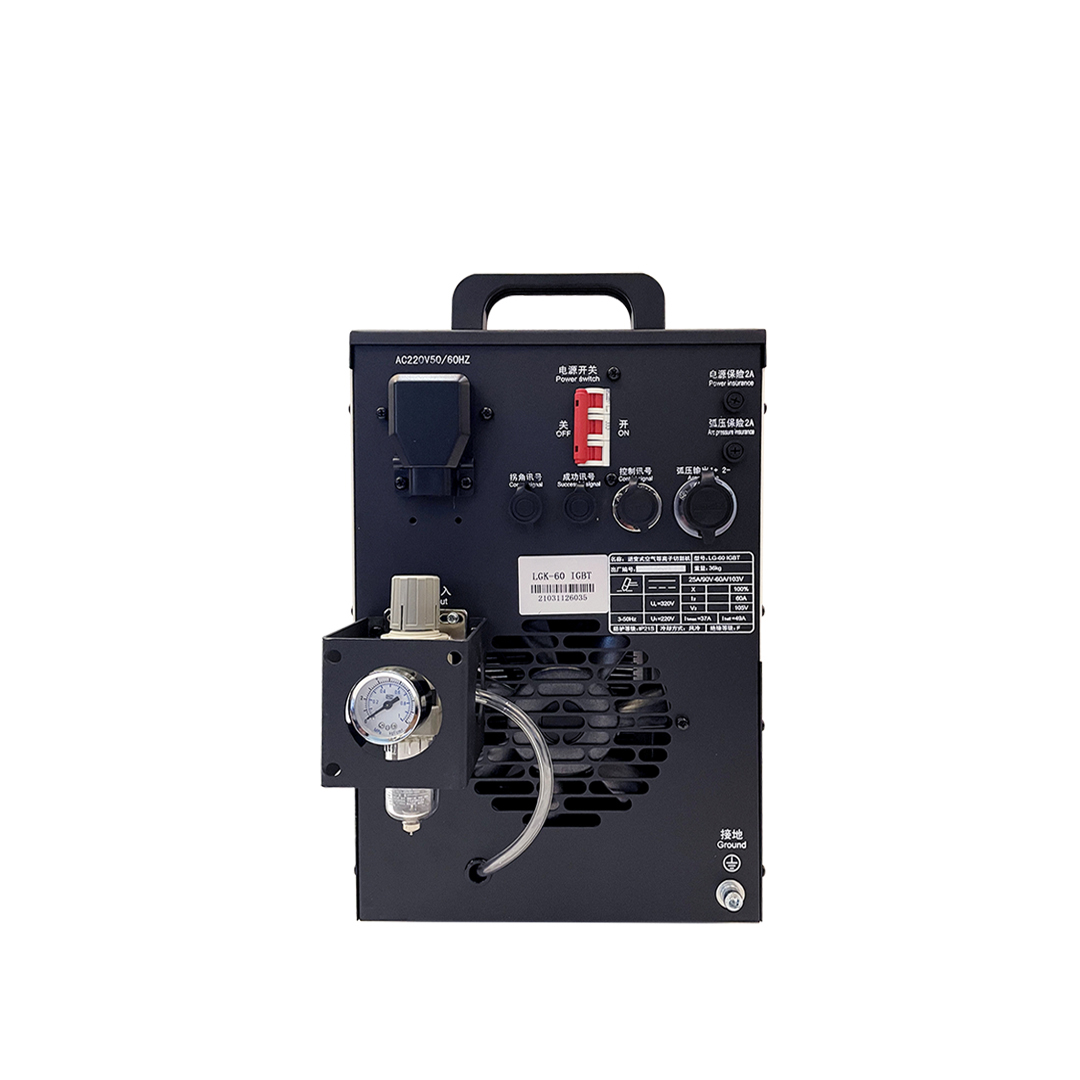

Hot Selling LGK60 Plasma Cutter Plasma Power Source for Metal Cutting

LGK60 plasma cutter is a high-precision portable plasma power source, its affordable, easy to use and easy to learn more accurate. Than the original cutting machine processing format larger, thicker cutting thickness.
Availability:
Quantity:
Inquire Add to Basket

  • LGK-60

  • HEAVTH

Overview

  LGK60 plasma cutter is a high-precision portable plasma power source, its affordable, easy to use and easy to learn more accurate. Than the original cutting machine processing format larger, thicker cutting thickness. For wider,High strength, durable for a long time Effectively reduce processing costs. Machine covers an area of small, fully effective equipment to play the effectiveness.a high efficiency and high performance equipment.


Quick Details


  • Rated Input Voltage:

  • 220V

  • Open Circuit Voltage (OCV):

  • 220V

  • Max. Output Current:

  • 60A

  • Video outgoing-inspection:

  • Provided

  • Machinery Test Report:

  • Provided

  • Marketing Type:

  • Hot Product 2019

  • Warranty of core components:

  • 1 Year

  • Core Components:

  • Pressure vessel

  • Max. Output Voltage:

  • 220v

  • Rated Duty Cycle @40°C:

  • 100%

  • Condition:

  • New

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • Heavth

  • Rated Power:

  • 22.4kw

  • Dimension(L*W*H):

  • 615*300*500mm

  • Weight:

  • 30KG

  • Year:

  • 2020

  • Warranty:

  • 1 Year

  • Applicable Industries:

  • Building Material Shops, Machinery Repair Shops, Manufacturing Plant

  • Showroom Location:

  • None

  • After-sales Service Provided:

  • 1 year, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support

  • Product name:

  • LGK50 Plasma Cutter

  • Rated input voltage(V):

  • 220V

  • After Warranty Service:

  • Video technical support, Online support, Spare parts, Field maintenance and repair service

  • Local Service Location:

  • None

  • Certification:

  • CE,CC


    Model

    LGK-60IGBT

    Cutting ability (Stainless steel)

    High quality cutting

    8mm (Cutting thickness)

    Perforation cutting

    8mm (Cutting thickness)

    Maximum cutting

    8mm(Cutting thickness)

    Cutting ability (carbon steel)

    High quality cutting

    10mm (Cutting thickness)

    Perforation cutting

    10mm (Cutting thickness)

    Maximum cutting

    10mm(Cutting thickness)

    Cutting current

    30A~60A

    Load persistence rate

    100%(ambient temperature 40º)

    Cutting parameters(Stainless steel) actual measurement

    Cutting thickness 8mm, Cutting speed 900mm/min

    Cutting parameters(carbon steel)) actual measurement

    Cutting thickness 10mm, Cutting speed 1200mm/min

    technical parameter

    Power supply

    Single phases~220V

    Rated power

    15.6KVA

    No-load voltage

    380V

    Host weight

    36KG

    Shape size

    590*260*480mm

    Certificate

    CCC CE

    Plasma gas

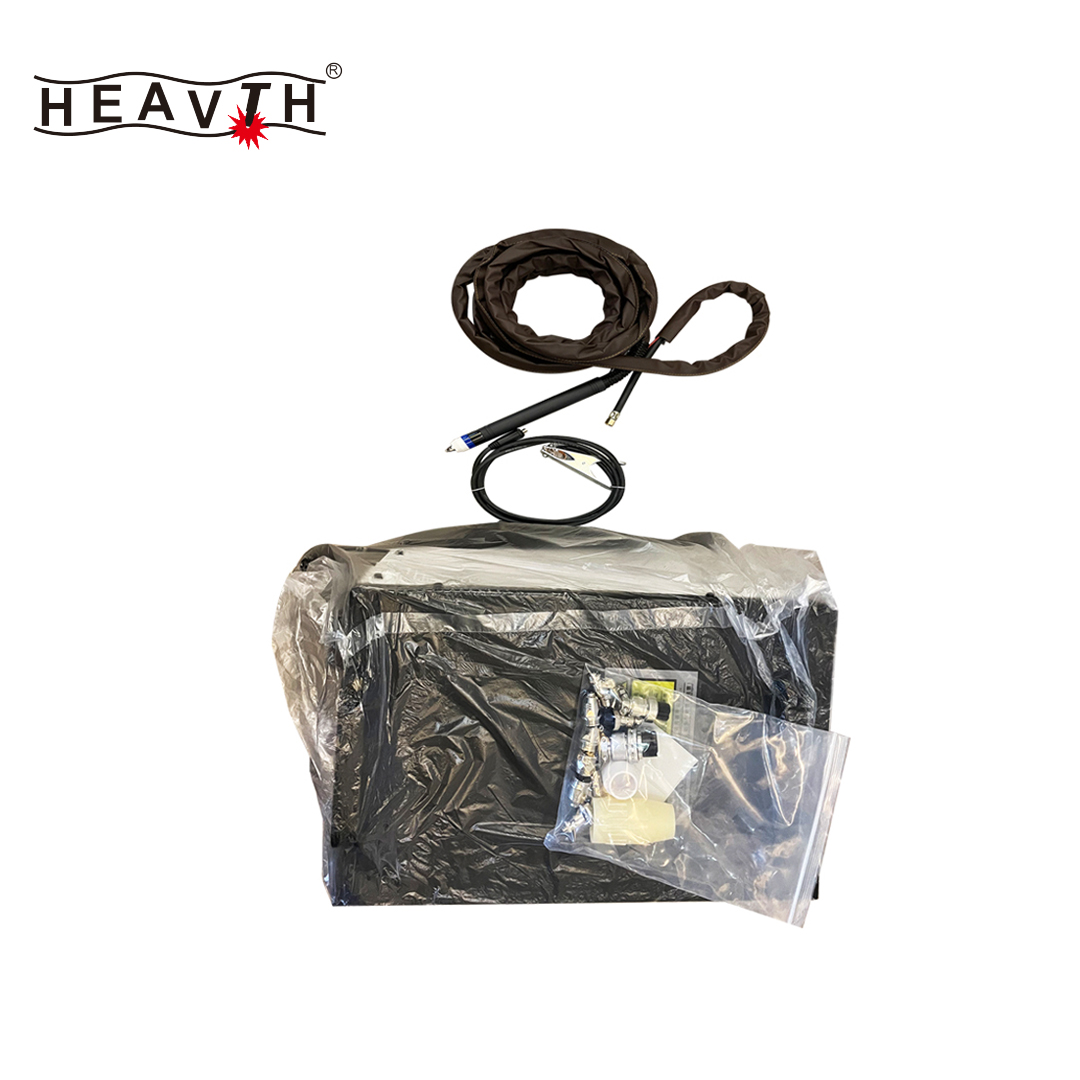

    Packing size mm

    615*300*500mm

    Video Description
