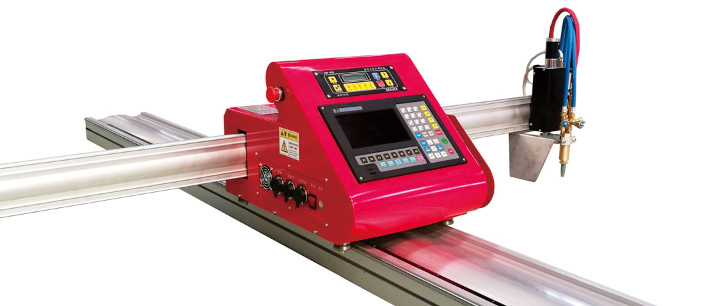

MS-1530HDX/MS-2030HDX/MS-1560/MS-2060
HEAVTH
Features
1. The new special high-strength hard aluminum alloy rails, the whole operation smooth and no noise, with high-speed high-precision and so on.
2. It can be achieved CAD file into a working program file, The system mainframe cuts the metal material arbitrarily.
3. This machine includes plasma and flame cutting function.
4. The operational screen can set to Chinese, English, French, Russian and other languages.
5. The control system has automatic power off memory and automatic recovery function.
high-precision portable CNC flame plasma cutting machine.pdf
Parameter
Model | MS-1530HDX | MS-2030HDX | MS-1560 | MS-2060 |
Rail size | 2.1×3.5M | 2.6×3.5M | 2.1×6.5M | 2.6×6.5M |
Cutting range(X/Y) | 1.6×3M | 2×3M | 1.6×6M | 2×6M |
Input voltage | Single phase AC220V | |||
Input power | About 500W | |||
Running speed | 0-3500mm/min | |||
Cutting type | Flame + plasma cutting | |||
Operating accuracy | 0.3mm/m | |||
Cutting thickness | Flame: 5-100mm, Plasma: optional | |||
Plasma source option | LGK80 / LGK120 / LGK200 |
