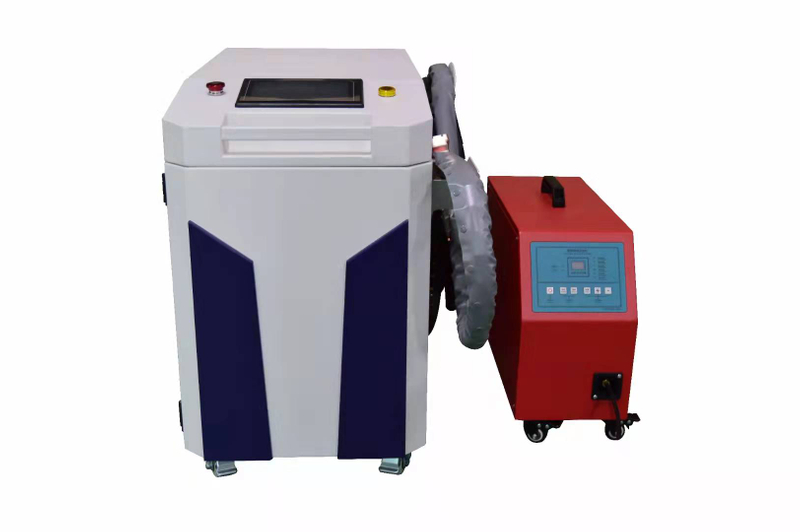

Handheld Laser Welding Machine

Laser welding has the following advantages:
(1) The heat input is small, the heat affected zone is small, and the aspect ratio of the weld is large;
(2) The cooling speed is fast, the weld structure is fine, and the joint performance is good.
(3) The welding speed is fast, the welding deformation is small, the reliability is high, the adaptability is strong, the precision is good, the efficiency is high, and it is easy to realize automation.
Power:
Availability:
Quantity:
  • MS-1000/1500/2000/3000HLW

  • HEAVTH

Product information

Unbeatable Benefits
FAST: Up to 4X faster than TIG ●VERSATILE: Wide range of materials – up to 1/4 in. (6.35 mm) ●EASY: Optimized presets reduce learning curve ●CONSISTENT: High-quality, repeatable results ●FLEXIBLE: Simple and challenging applications ●PRODUCTIVE: Pre- and post-weld cleaning capability
Model
MS-1000 HLW
MS-1500 HLW
MS-2000 HLW
MS-3000 HLW
Laser Source
1000W
1500W
2000W
3000W
Shielding Gas
Argon,Nitrogen,Air Argon,Nitrogen,Air Argon,Nitrogen,Air Argon,Nitrogen,Air
Input Power
6KW
7KW
9.5KW
12KW
Water Chiller
16L 3000W
16L 3000W
19L 4000w
21L 5000W
Mains Supply
AC220V 1PH
AC220V 1PH
AC380V 3PH
AC380V 3PH
Laser Wavelength
1080±3nm
Fiber Length
10m
Focal Length
150nm
Cooling mode
intelligent water chiller
Overrall Dimension
850*450*630mm
Total Weight
130kg (155 lbs.)
Material
MS-1000HLW
MS-1500HLW
MS-2000HLW
MS-3000HLW
Stainless Steel
up to 3.5 mm
up to 5 mm
up to 6.5 mm
up to 9 mm
Galvanized Steel
up to 3.5 mm
up to 5 mm
up to 6.5 mm
up to 9 mm
Mild Steel
up to 3mm
up to 4mm
up to 6 mm
 up to 9 mm
Aluminum
up to 3 mm
up to 4 mm
up to 5 mm
up to 6 mm
LightWELD - Turnkey Handheld Laser Welding & Cleaning Systems
● Adjustable laser welding power up to 1500 W
Preset & user-defined modes optimize material-thickness combinations
Wobble welding controls for 5 mm of additional weld width
Rear panel provides intuitive connections for power, process gas and external accessory controls
Cleaning power up to 2500 W peak for greater welding quality and finishing capability
Less Heat & Distortion for More Productivity & Flexibility
TIG welding is a time-consuming, two-handed welding method that requires an experienced, highly-skilled operator. TIG welding may
generate extreme heat that deforms thin materials, produces poor visual finishes, is difficult when welding copper, and limited when welding metals of dissimilar thicknesses.
MIG welding requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.
LightWELD enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal
distortion, deformation, undercut or burn-through.
Factory Presets Ensure Optimized Welds & Cleaning
●Simple preset selection ensures consistent high-quality laser welds and cleaning
●Presets include wobble welding function to accommodate wider seams and for parts with poor fit-up
●Operators can instantly switch between presets to process multiple material-thickness combinations
●Advanced operators can customize presets, save for future use and can be used by novice operators to produce the same results

LightWELD is Fast & Easy to Set Up
Ergonomic, compact and proven to be the most comfortable and easy to use laser gun with built-in wobble welding functionality.
2-step trigger and part contact sensor enhance operator safety
Purpose-built nozzle tips for various weld joint types and pre and post weld cleaning applications
A single cable from the unit delivers laser power, gas and control connections to the gun
Fast and Easy Setup
Clearly labeled rear connections make getting started fast and easy
Simply plug in power cord and gas connection, attach clamp to work surface, and the system is ready to go.
Laser power, gas, and gun control are delivered through a single cable.
An ethernet computer connection provides access to advanced parameter settings to fine tune and save process parameters.
Optional Wire Feeding Package
Wire welding capability extends laser welding applications to poorly fit-up parts
Used for low carbon steel, stainless steel, aluminum and non-ferrous metals and alloys
Wire feed speed range 40 – 600 cm/min (15 - 230 ipm)
Wire diameter capacity 0.8 to 1.6 mm ( 0.035''- 0.063'')
Wire feed tips: 0.8mm, 0.9mm, 1.2mm, 1.6mm
Handheld Laser Welding & Cleaning Systems
Easy to Learn
Built-in factory presets for welding and cleaning reduce learning curves, new welders can be trained within hour and experienced welders realize an immediate increase to productivity
Highly Productive
High-speed welding that is 4X faster than TIG, with simple material preparation and minimal post-finishing, plus wobble welding and wire feed options for consistent high-quality results
Highly Capable
Easily weld and clean thick, thin and reflective metals with low heat input from < .040" (1.0mm) up to 1/4" (6.35mm) with minimal part distortion, improved visual appearance and increased overall part quality
Cutting finished products show
Company Profile
Changzhou Heavth Science & Technology Co , Ltd . was established in 2006 . We are located in Changzhou , which is the key city of Jiangsu province near to Shanghai .
We are supplying Laser CNC cutting machine , Portable CNC cutting machine , Gantry CNC cutting machine , CNC Pipe/tube cutting machine and other welding & cutting equipment . we have strong research and development ability . For now , we are supplying 6 series and over 30 kinds of products . We develop and design various types of CNC cutting machine and related accessories which are widely used in the large number of industrial circle .
Our company has strong technical force , advanced production equipment , detection means complete and excellent product quality .
Our products are sold to U.S.A , Canada , Australia , Europe , South East Asia , Africa etc , more than 100 countries and areas ,and supply OEM service for more than 20 manufactures . Heavth is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force .
