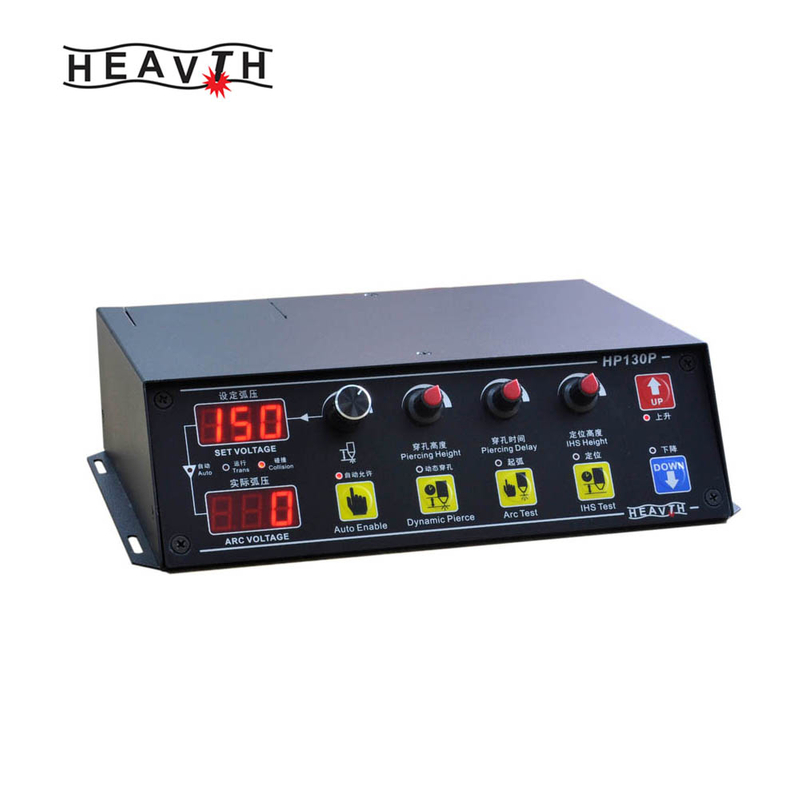

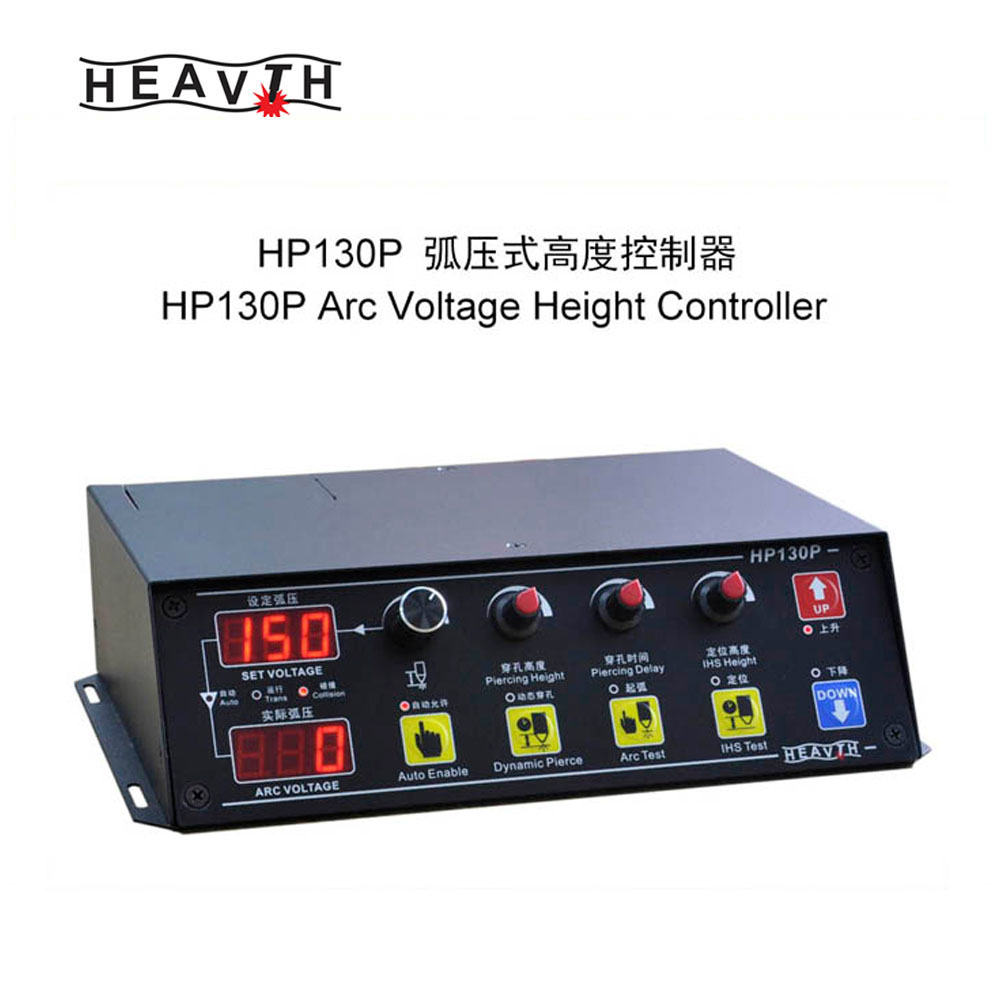

HP130P TABLE PLASMA TORCH HEIGHT CONTROLLER

Brief Intro

HP130P torch height controller is equipped with constant current plasma source. When the distance gets farther，the arc voltage increases; On opposite, the arc voltage will decrease. Torch height controller will inspect the voltage change, then control the distance between cutting torch and material via the lift motor. Generally, the instruction will list all the cutting parameters for some type of plasma. The user can refer to these parameters. Adjust the voltage in controller to match the selected current. The torch height will keep constant under regular speed.

Technical parameter

Working Voltage: DC24±10%，Please prepare a isolated power, do not shared with others such as electronic valve .

Lifter motor: DC24V DC motor

Drive mode: PWM H-bridge

Output current：2.5A

Working temperature: -10∽60℃

IHS style: Switch inspecting IHS

Running transfer: Alternative Arc transfer and pierce transfer

Divide board Input arc voltage:1:1 or 50:1

Accuracy: ±1V∽±5V，adjustable

Dimension: Length, Width, Height: 250mmX190mmX71mm

Weight：1.8kg

Protection class: IP64, to prevent dust entering.

Installation connector: 5-pin, 7-pin, 10-pin

Installation position: Keep away from heat, air convection good place.

outline dimension：

Overall dimensions: 250mm (width) ×71mm (height) ×190mm (length)

Panel size:
