Gantry Type Heavy Fiber Laser Metal Sheet Plate Cutting Machine 12000W/20000W/3000W

Share to:

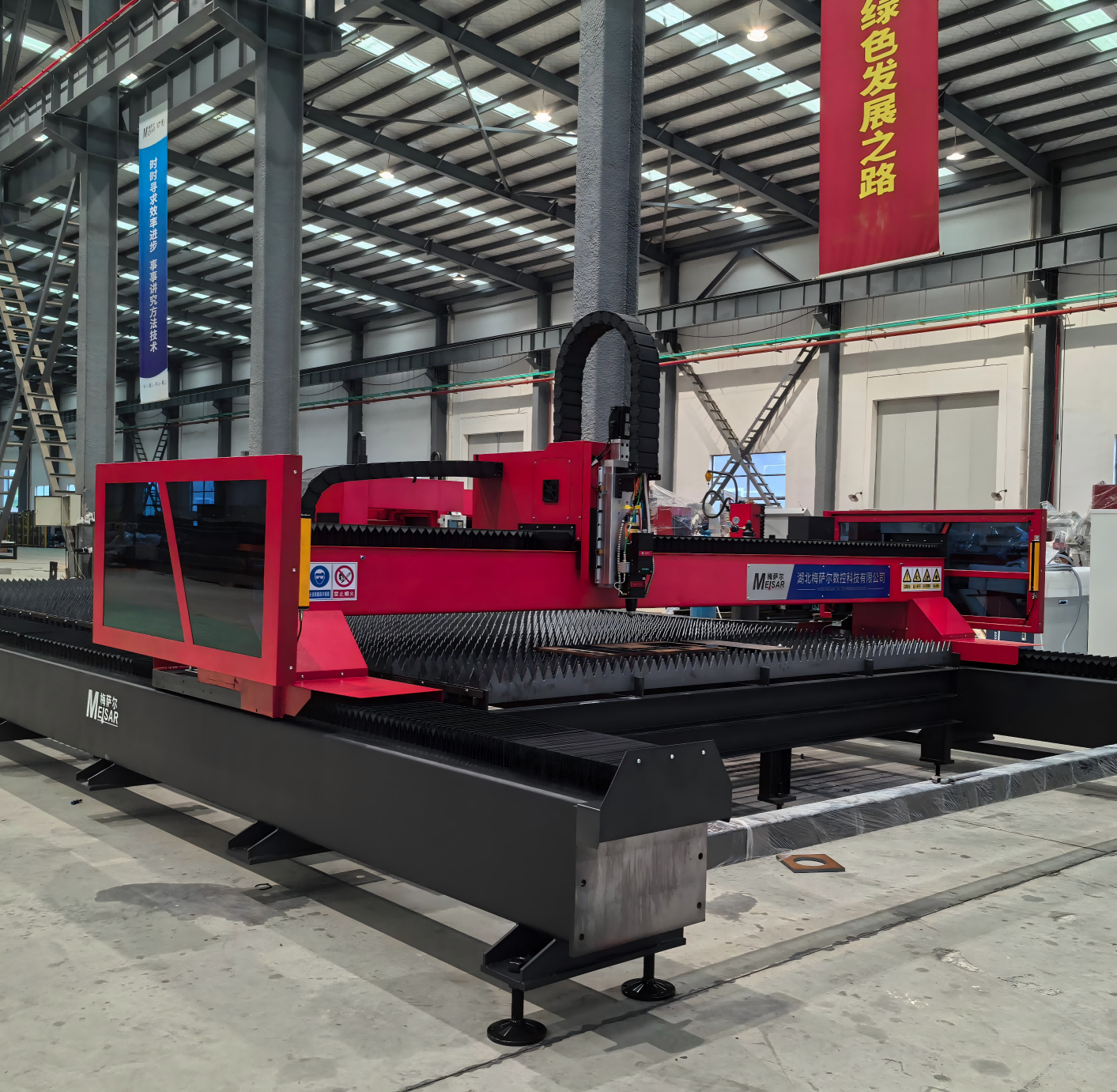

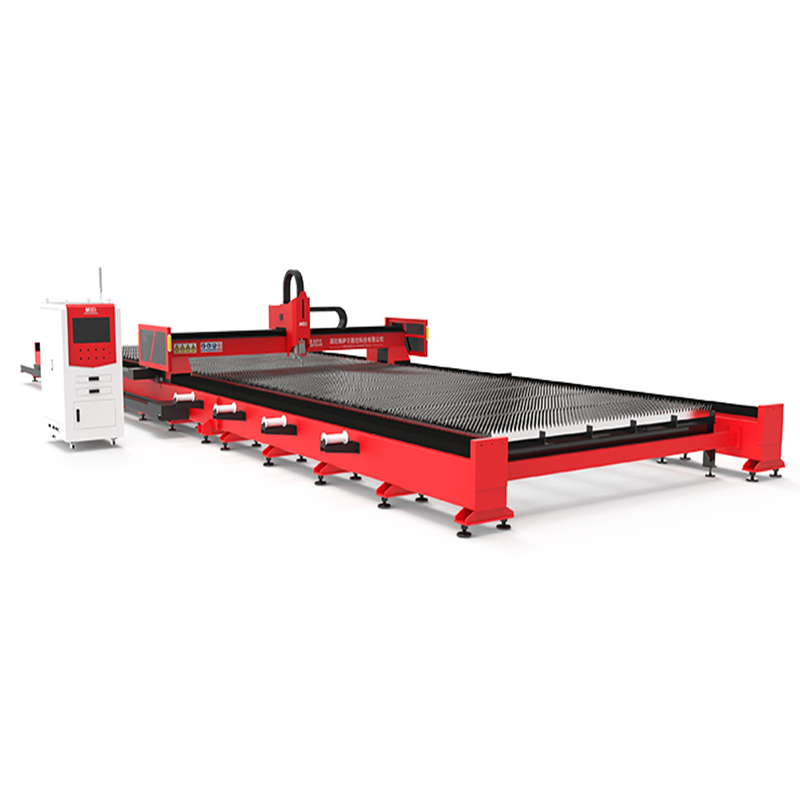

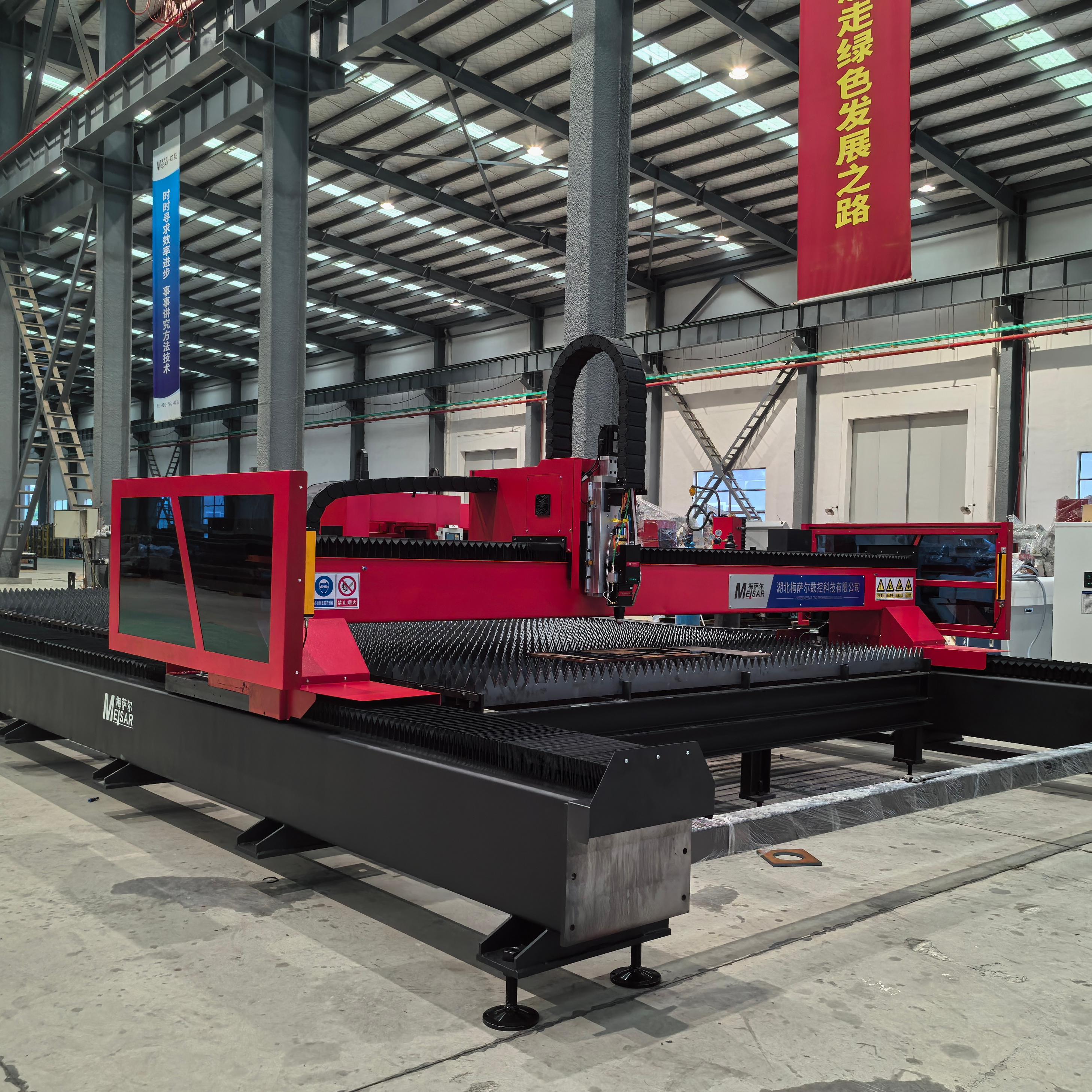

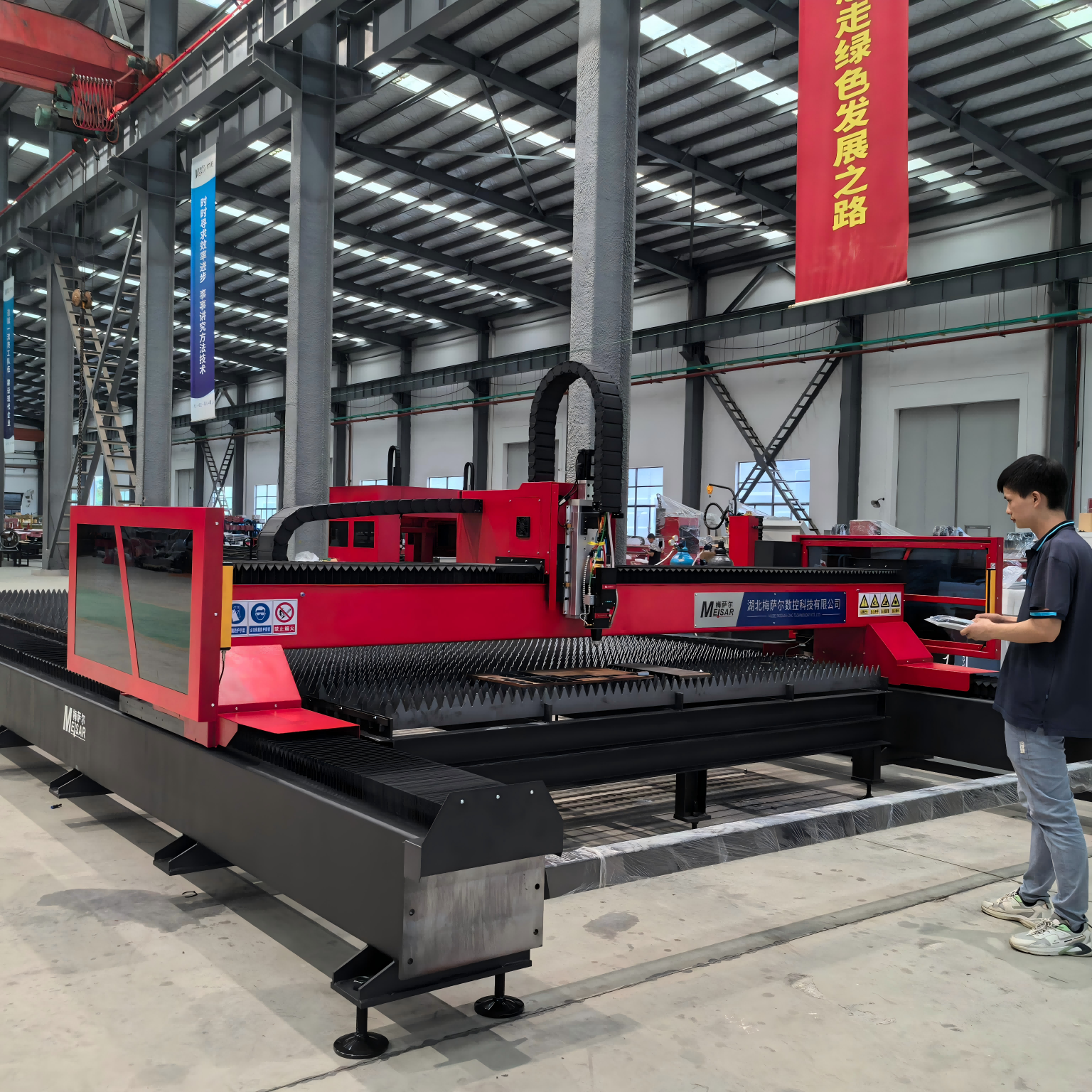

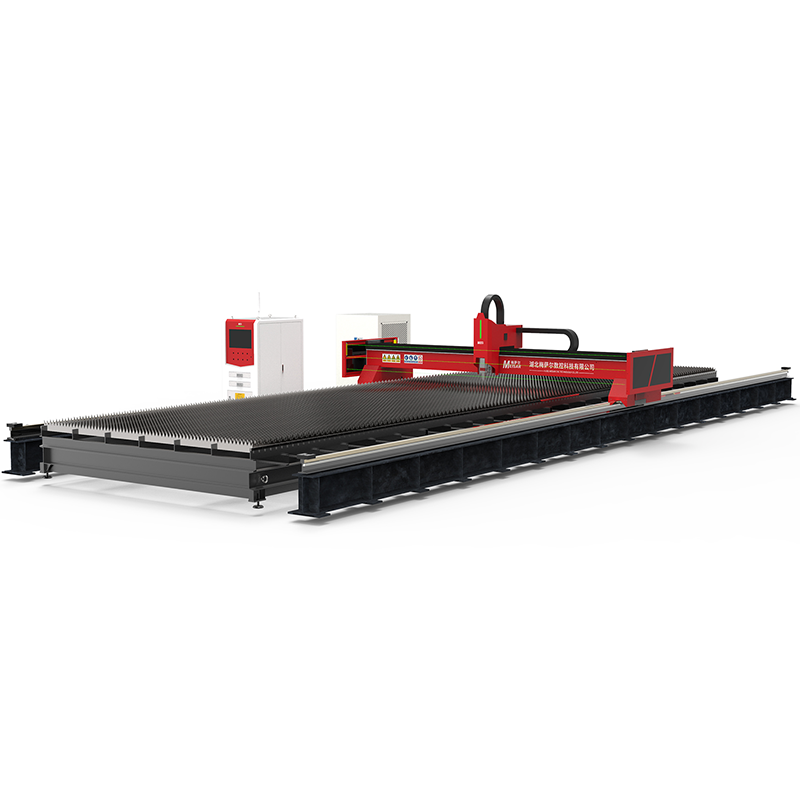

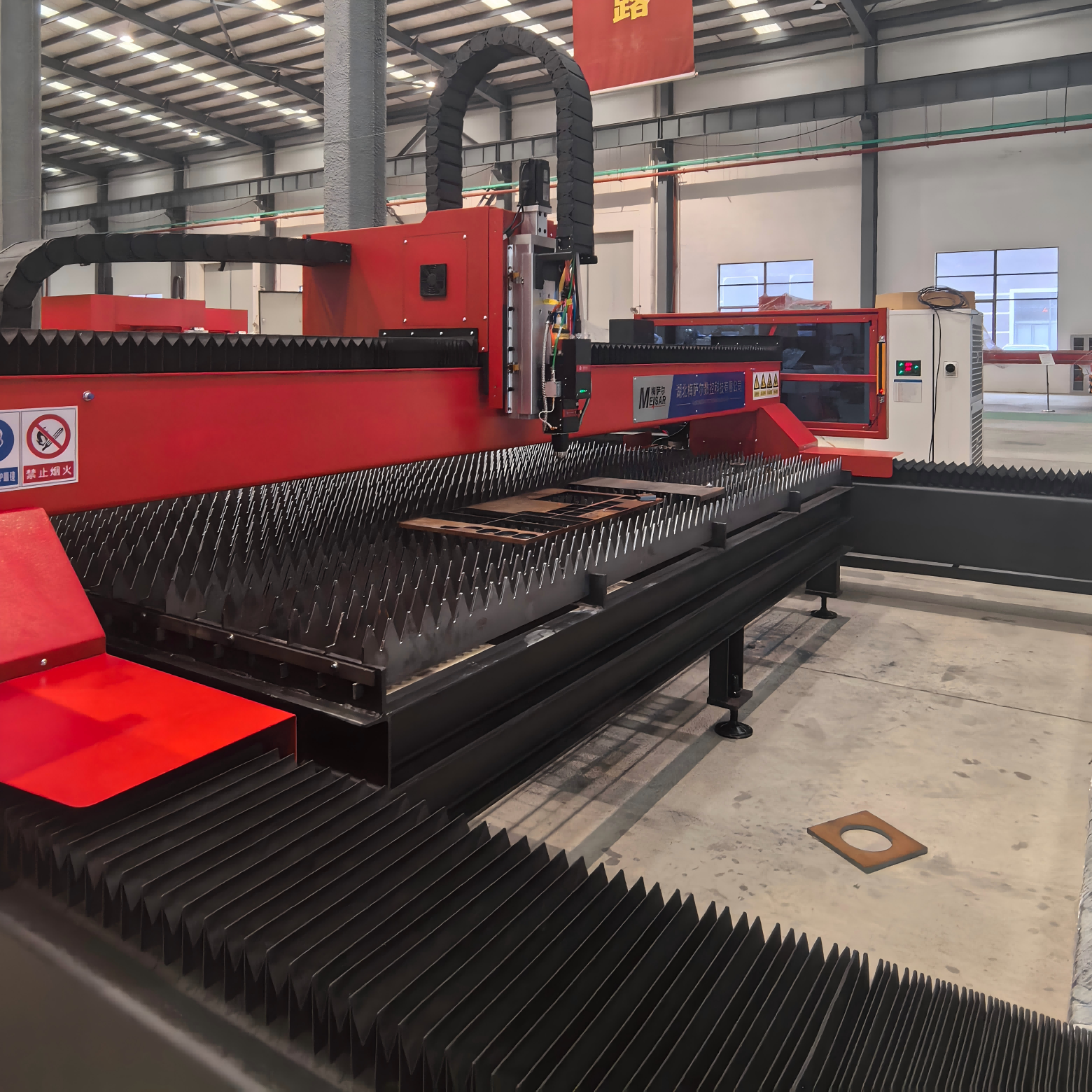

Gantry Type Heavy Fiber Laser Metal Sheet Plate Cutting Machine

The Gantry-Type Heavy Fiber Laser Metal Sheet & Plate Cutting Machine is a high-performance cutting system designed for precise and efficient metal cutting. Available in 12kW, 20kW and 30kW power configurations, this machine is suitable for a wide range of applications in industries such as automotive, aerospace, metal fabrication, and heavy machinery. It features a gantry-type structure that offers superior stability and precision, making it an excellent choice for cutting large metal sheets and plates.

Power:	12000w 20000w 30000w customized
Cutting size:	30008000mm 400012000mm 5000*16000mm customized
Availability:

Quantity:



Inquire Add to Basket

Model:
MS-G14035
Brand:
Heavth
cutter technology:
Fiber laser cutting
Size:
3000/12000mm, customized

Product Description

Product information

Gantry Type Fiber Laser Cutting Machine

Features for fiber laser cutting machine

1. Suitable for cutting space:

Two-dimensional plane cutting, 2. Application industries:

Rail transit, automobiles, engineering machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, grain machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchenware and bathroom, decoration advertising, laser external processing services and other machinery manufacturing and processing industries; 3. Cutting materials:

Carbon steel, stainless steel, aluminum alloy, brass, copper, pickling plate, galvanized plate, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy.

Product parameters

Model	MS-G14035-20000W-RG
Max carbon steel cutting capacity	60mm
Max stainless steel cutting capacity	60mm
High reverse material cutting capability	Aluminum: 50mm brass: 20mm copper: 12mm
Cut slit width	0.15mm-1.0mm / Depending on the steel plate thickness
Cut surface verticality	8mm negligible / 1.5° above 8mm
Processing amplitude (length and width)	14000mm×3500mm ( customized)
X-axis effective travel	14000mm ( customized)
Y-axis effective travel	3500mm ( customized)
Z axis itinerary	300mm
X / Y-axis positioning accuracy	±0.03mm/m
X / Y axis repeat positioning accuracy	±0.02mm /m
Max cutting speed	80m/min
Max acceleration	0.8G
Total power of the machine	66KW
Power supply voltage	380V, 3-phase
Frequency	50Hz
Power supply protection level	IP54
Max load-bearing of the workbench	≤14000KG
Overall dimensions (LWH)	16000mm4500mm1000mm
Operating ambient temperature	-5℃~40℃
Relative humidity	<80% no condensation, no condensation
Ambient environment	Ventilation, no large vibration, no strong electromagnetic signal interference

Product Details

Raytools Laser Head
We can provide all high quality laser heads on the market. It's been tested by us for a long time. Fuji/Yaskawa all of our long-term partners.

Laser Source
Raycus/Max/IPG, multiple choice
Different brands, different laser power are available. The higher power, the thicker cutting thickness.

Servo Motor
By adding and improving vibration suppression function, it can improve the following performance and shorten the setting time.

Taiwan YYC Gear
High carbon content, high compressive strength and high hardness.Low thermal sensitivity reduce the loss of equipment in using.

Auto Lubrication System
This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.

Cypcut Control System
can remotely control computers and machines, adjust parameters and solve problems. Efficiency- One PC can control several machines.

Taiwan HIWIN Guide
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.

Panasonic Servo Driver
Japan panasonic dual servo drive system guarantees the working stability and accuracy. It ensures the accuracy of the machine working for a long time

S&A Water Chiller
With excellent quality and leading research retrength, S&A has become a leading enterprise in the China industrial refrigeration industry.

Cutting parameter

Cutting finished products show

G-series fiber laser cutting machine is usually used to cutting metal materials, like steel sheet, steel pipe, aluminum, copper,stainless steel, carbon steel, etc.
