FLG-400HD Huayuan High Definition Fine Plasma Cutting System

Main features
1,This new model Huayuan fine plasma cutter is suitable for quality cutting thickness upto 50mmthe maximum cutting thickness upto 80mm
2,A specially adjusted torch cooling system withhigh-power& high lift pump and high-power heat radiation structurehighly lengthens the consumables working life
3,With separate gas input connectors for different gas cutting processget the best cutting condition for different metal materials4,Excellent high frequency arc ignition controlling technology, separate design of high frequency box and plasma power source which highly reduces the high frequency disturb and get 100% arc starting successrate
5 Various of communication control connectorcan easily work with different type of CNC control systems
Availability:
Quantity:
  • FLG-400HD

  • Huayuan

FLG-400HD Huayuan High Definition Fine Plasma Cutting System





       FLG-400HD High Definition Plasma Cutter

DM_20220622092845_012

Introduction


Thanks for Huavuan’s decades of research&development. the FG-400HD fine plasma cuttina machine is successful break throuah after

thousands of testing &improving with more than 6 years,it is a high definition fine plasma cutting machine which is suitable for metal cutting such as carbon steelaluminumcopperetc.


An innovative and original technology ofCRCTech is used on this plasma cuttingmachine,accurate current control makes excellent cuttino quality.Several R&D achievements on this plasma system have been applied to been intellectual property protection.It has been approved as a ideal replacement of XPR series Hypertherm plassma system.


*CRCTech is current ripple control technology


Main features

1The CRCTech is used on this high definition fine plasma cutting machine,delivers the ultimate in high performance mild steel cutting, plus aluminum capability and unmatched stainless steel cut quality


2,A specially adjusted torch cooling system with high- power &high lift pump and high-power heat radiation structure, highly lengthens the consumables working life

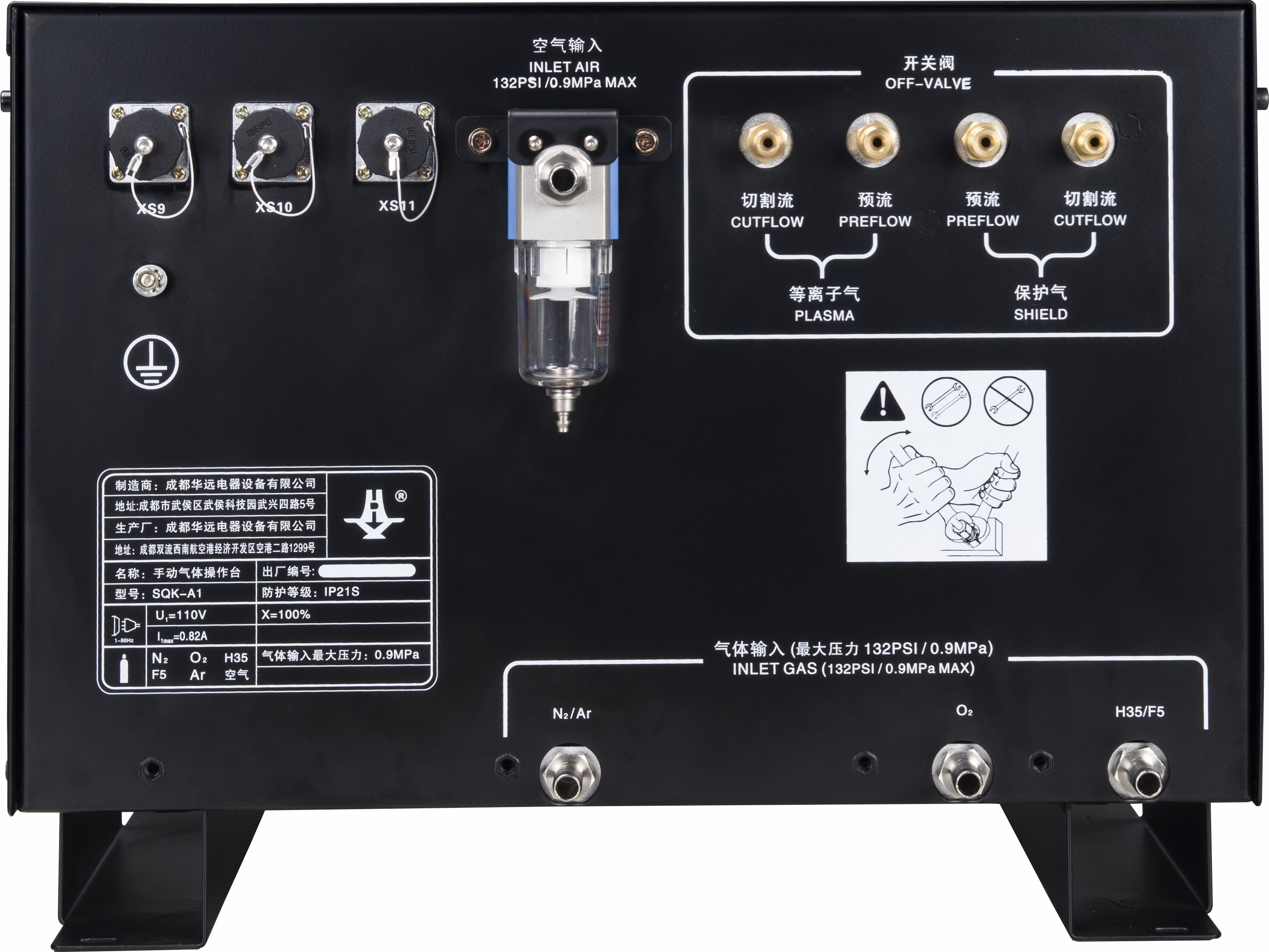

3.With senarate das input connectors for different aas cuttina process.get the best cuttina condition for different metal materials


4. Fxcellent hiah freauency arc ianition controllina technoloay. senarate desian of hiah freauency box and plasma nower source. hiahly reduces the high freguency disturb and get 100% arc starting success rate


5.Various of communication control connector,designed and built for maximum performance and productivity in x-ybevel and robotic cutting process


6,This model fine plasma cutter focuses the plasma arc for more powerful precision cutting up to 50mm, and the maximum cutting thickness upto 80mm


7It is a ideal replacement of XPR series Hypertherm plassma system


Main Technical Parameters

Item

Unit

Model

FLG-400HD

Input power

V/Hz

3~380±15% 50/60

Rated input current

A

155

Rated input capacity

kVA

102

Rated output current/voltage

A/V

400/210

Rated open circuit voltage

V

370

Rated duty cycle

-

100%(40℃)

Efficiency

-

93%

Power factor

-

0.92

Output current adjust range

A

15~400

Pilot arc mode

-

Non-contact

Quality cuttingthickness(Carbon steel)

mm

50

Piercing thickness(Carbon steel)

mm

50

Severance cutting thickness(Carbon steel)

mm

80

Insulation grade

-

F

Cooling mode

-

Air cooling

Ingress protection

-

IP21S

Dimension(L×W×H)

mm

1060×480×1275

Power source net weight

kg

220
