CypVision High Precision Vision System

CypVision system is designed as an extended vision system for Friendess laser cutting control system.The system applies Gigabit Ethernet communication and self-developed adaptive algorithms to realize precision cutting of various material including stainless steel/ copper/ aluminum/ ceramics/ glass and PCB circuit board etc., in many industries of aluminum substrate, 3C, vision tube cutting and glasses frame etc.In addition, CypVision supports to customize vision functions for different application scenarios.

Availability:
Quantity:
Inquire Add to Basket

  • CypVision

  • FRIENDESS

Technical Data

Model

CypVision

Control Software

CypVision

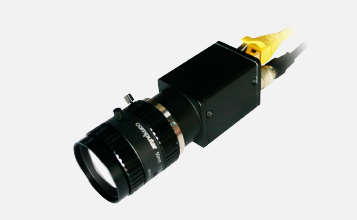

Industrial camera

130W black white pixel, options 500W/1000W

Power supply 12V DC（±10%），support POE power supply

Global exposure shutter capture more sharper dynamic image

Gigabit Ethernet communication, up to 30Hz ( Intel network card is recommended)

Prime lens

Focal range 50mm, flange distance 13.1mm

TV distortion -0.3% (y=4.0)

Work range 98~142mm

Light source

White ring light source fit for lighting for various materials of stainless steel, titanium alloy, aluminum, copper in production

Provide optional light source for different cutting application

Light source controller

Power supply 24V DC, 1A

Work environment

Temperature: 0-50℃

5% - 80% (no condensation)

Benefits

Technique feature

One click to finish camera pixel  calibration , lens and cutting head offset setting

Identify the Mark point type and Mark point template automatically.

Integrate two dimensional measuring and lens distortion calibration technique.

Support advanced functions of find workpiece edge, auto focus control, dual shuttle, break point locate, round tube cutting etc.

Support visual and file positioning methods, convenient for batch processing

Control performance

Self-developed adaptive algorithms

Single point positioning accuracy 6μm, repeated positioning accuracy 0.012mm

Single Mark point positioning time < 100ms

Control light source switch and via RS232 communication
