CNC control system F2300A cnc controller for plasma cutter

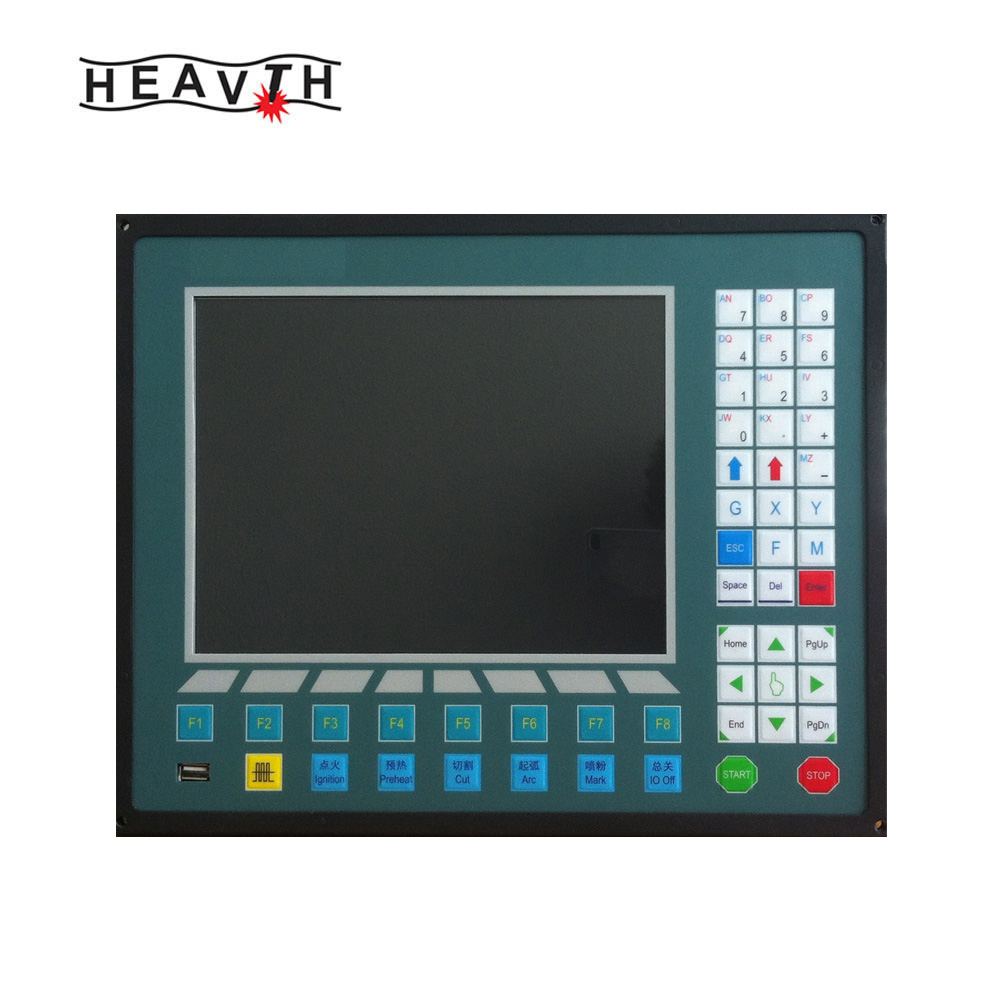

F2300A CNC controller
The CNC system F2300A uses ARM and DSP motor control IC to implement cutting control, and the system is widely applied to oxygen gas cutting and plasma cutting machines. The system is easy to operate. The operator can use the graphical hints for easy operation. The key buttons are specially designed for the convenience of the operator. The front USB port can import and export files. The system interface includes many languages such as English, Dutch, German, Russian, French and Japanese.
  • F2300A



· 10,4 inches 800*600 dots color LCD.

· English file system and menu, and the language can be switched very easily.

· 47 standard parametric shapes (including grid pattern) like square, circle, flange, etc. These parts can be modified.

· Support the EIA code (G code) ,ESSI Code and various FastCAM, FreeNest, SmartNest, IBE software.

· Compact keyboard design.

· Easy input of files.

· Parts have some options such as scale, Rotate, Mirror.

· Graphics can be arrayed in matrix, interaction, stacked modes.

· Steel plate can be adjusted according any steel side.

· Self-diagnostic function, to diagnose the key status and all the IO status, facilitate inspection and debug.

· Provide a front USB interface for copying files.

· System can be upgraded by USB interface easily

· Lifetime free upgrade service.

· Import and export files as a single file or multiple files.

· Display time, week and clock.

· Parameters backup and online upgrade.

· Supports three kind of operation mode: Flame, Plasma, and Demonstration.

· Supports THC, two levels preheat, three level pierce in flame mode.

· Built-in THC with IHS, plasma arc controller auto/manual. Display actual arc voltage. Easy setting of the arc-voltage.

· Settings for the THC: check for collision check position signal, control arcing signal.

· IHS trough “nozzle contact” or proximity sensors on the plasma torch holder.

· Plasma arc feedback, positioning feedback, automatically shut down the arc at the corner.

· Support edge cutting. It can shorten the preheat time for thick steel plate.

· Movement speed can be real-time acceleration, deceleration.

· According to plate thickness, the cutting speed is automatically restricted by a speed limit in the corner, effectively preventing over burn.

· Select row and column manually.

· Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking cut-off point under zooming state.

· Because we use a DSP as the core we can accurately control the machine movement in high speed. Making it stable and low on noise.

· Start speed and acceleration can be set by your convenience.

· When powering off, the CNC Automatically memorize the working situation and the last cutting point.

· “Cutting offset” function can avoid waste the steel plate when the nesting of the plate is calculated wrong.

· Set up different administration authority and the corresponding password to safeguard the interests of managers.

· Long-distance remote control can control the machine to move forward ,backward, left, right and cutting start, stop and so on (optional).


Control Axis:2
Control accuracy :+/-0.001mm
Coordinate range:+/- 99999.999mm
Max pulses : 200kHz
Max speed:15000 mm/m
Max lines of code:10000lines
Max size of single code file:1M
Time resolution :10ms
Working Voltage: DC 24V input
Working Temperature:-10℃-60℃. Relative Humidity, 0-95%.


· 15 pins D-SUB Male interface of 2 axes of motor drive.

· 25 pins D-SUB Female interface of 16 channels optoelectronic isolation output ports max back flow current 300mA.

· 25 pins D-SUB Male interface of 16 channels opto electronic isolation input ports, max output current 300mA.

· 5 wire THC motor output and limit input ports.

· 7 wire arc pressure and position input port, arcing signal output port.

· Selection of partial pressure proportion of arc input: 1:50 or 1:100

· USB interface on the front panel.

· Extend IO input/output ports, PWM input ports, analog input ports.


· Monitor: 10,4 inch 800*600, high definition 16 million colors and high brightness LCD.

· Memory: 64M SDRAM

· Memory available for user: 256M or 1G electronic hard disk

· System master frequency: 400MHz

· USB: USB 1.1 front interface

· Keyboard: electronic PCB foil keyboard

· Chassis: full-steel structure completely shielded against electromagnetic radiation, interference and static electricity.
