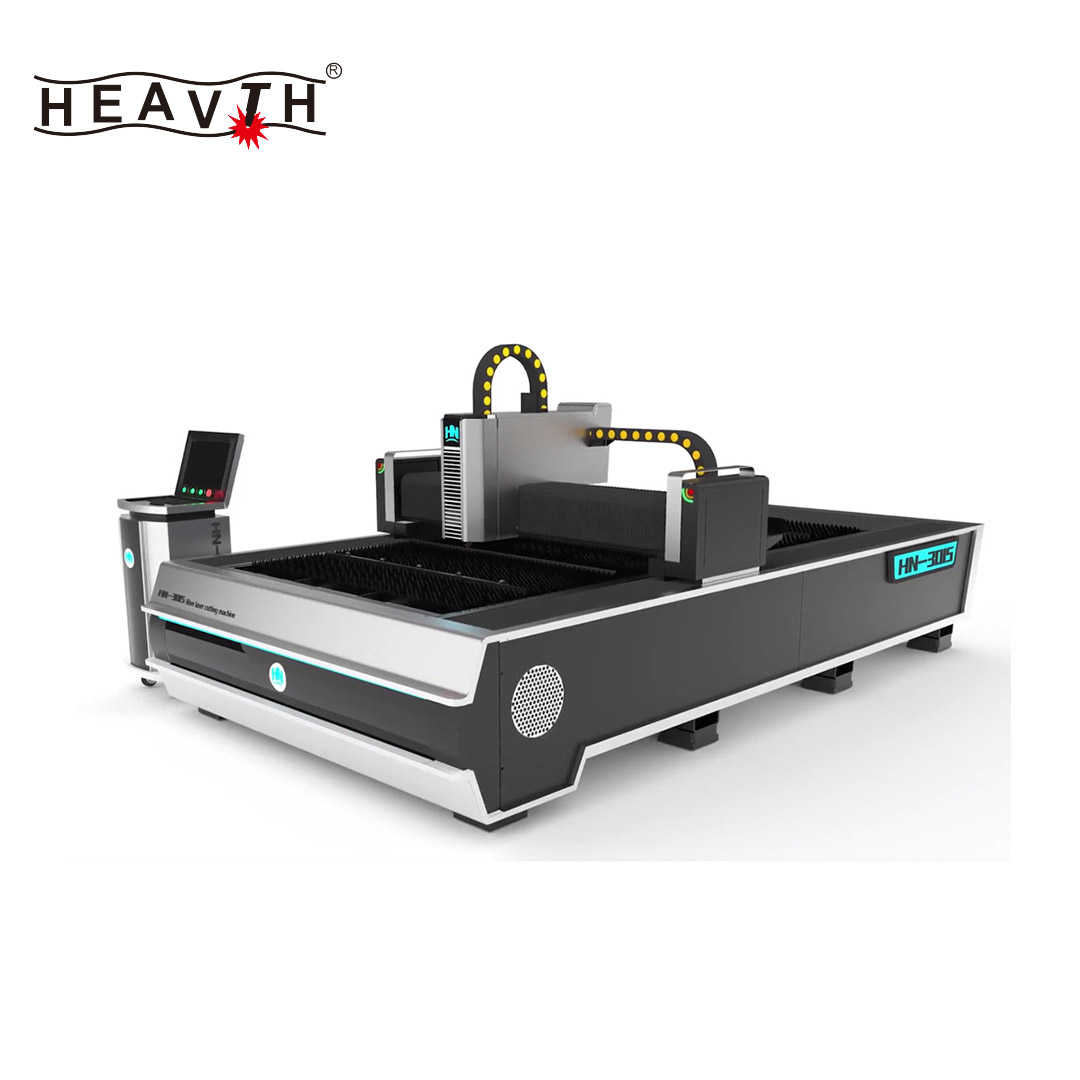

CNC Fiber Laser Cutting Machine Single Platform Open Style Laser Cutting Machine

Product Overviews

1000W/2000W/3000W fiber laser cutter is suitable for metal cutting such as Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

With rotary device options, it can also cut metal tubes and pipes.

Technical Specification

Video

Exchanging Platform:

It adopts an up and down exchange platform; The converter is responsible for controlling the exchanging motor; The machine is able to finish the platform exchanging within 15s.

The Third Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

The Segmented Rectangular Tube Welded Bed

   The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.

   Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

•  High strength, stability, tensile strength, ensuring 20 years of use without distortion;

•  Thickness of rectangular pipe wall is 10mm,and weights 4500 kg.

Laser cutting head, it can focus automatically

• Without manual focusingThe software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

• Bigger adjustment rangeAdjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

• Long service lifeCollimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Heavth fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer.

   The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.

Laser QMC

QUALITY MANAGEMENT SYSTEM

Heavth CNC is one of the biggest suppliers among cutting equipment in east China. Company mainly engage in CNC laser cutting machine, CNC plasma cutting machine, CNC Pipe/Tube cutting machine, etc. Heavth CNC has 14 years history, serving more than 80 countries and regions.

Heavth CNC has strict quality control system and quality management team. Strictly adhere to the general standards of the industry and company guidelines. Implement quality monitoring from every aspect of R&D, production and after-sales of laser equipment, to ensure that each device can meet customer’s requirements.

Incoming Inspection

For every part of the machine, Heavth CNC is strictly control the quality.

Not only require suppliers to provide quality inspection reports, but also strict quality monitoring will be carried out when the parts are in the factory.

Laser Source Test	Laser Head Test	Square Track Detection	Rack Detection	Motor / Reducer Testing
The width, repetition frequency and peak power of the laser pulse are detected by using the photoelectric detectors and oscilloscope.	Stability test and aging test for laser head.	Testing the flatness and straightness of the track to ensure that the machine runs smoothly.	The precision and consistency between gear and rack are mainly tested	We will adjust the suitability of the machine through continuous empty experiments.

Process Control

The assembly process of the machine will also affect the customer's feeling when using the machine, Therefore, in the process of machine assembly, Heavth CNC from the most basic machine bed to the final assembly of the whole machine is strictly followed by the quality management standard.

Machine Bed Welding	Gantry Milling	Guide Rack Mounting	Other Hardware Parts Installation
The bed frame is welding by 10mm thick and high strength square.	Heavth CNC has its own gantry milling.	The straightness of guide rack is guaranteed by using laser collimator	we install the motor reducer strictly according to standard production process and standard

Pre-delivery Inspection

The machine will accept a number of quality testing, respectively, from the performance, stability, fit, practical and other aspects of consideration, for non-compliance with the standard part of the arrangements for debugging and maintenance. To ensure that the final factory, the machine is in the best condition.

Inspection Report	Load-Free Test	Material Shearing Test	Machine packing
Every component of the machine, every performance, every parameter is carefully tested.	Ensure the cutting accuracy through laser interferometer checking and 24 hours testing, And make sure the machine will be in the best condition.	Before delivery, different metal materials will be cut, observe the cutting effect, and then adjustment according to the need	The laser equipment requires multiple protective measures during the packing process to ensure that each component is not affected by the collision

Company Profile

Changzhou Heavth Science & Technology Co , Ltd . was established in 2006 . We are located in Changzhou , which is the key city of Jiangsu province near to Shanghai .

We are supplying Laser CNC cutting machine , Portable CNC cutting machine , Gantry CNC cutting machine , CNC Pipe/tube cutting machine and other welding & cutting equipment . we have strong research and development ability . For now , we are supplying 6 series and over 30 kinds of products . We develop and design various types of CNC cutting machine and related accessories which are widely used in the large number of industrial circle .

Our company has strong technical force , advanced production equipment , detection means complete and excellent product quality .

Our products are sold to U.S.A , Canada , Australia , Europe , South East Asia , Africa etc , more than 100 countries and areas , and supply OEM service for more than 20 manufactures . Heavth is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.

FAQ

Q1：Does the machine can be customized according to my requirements?
