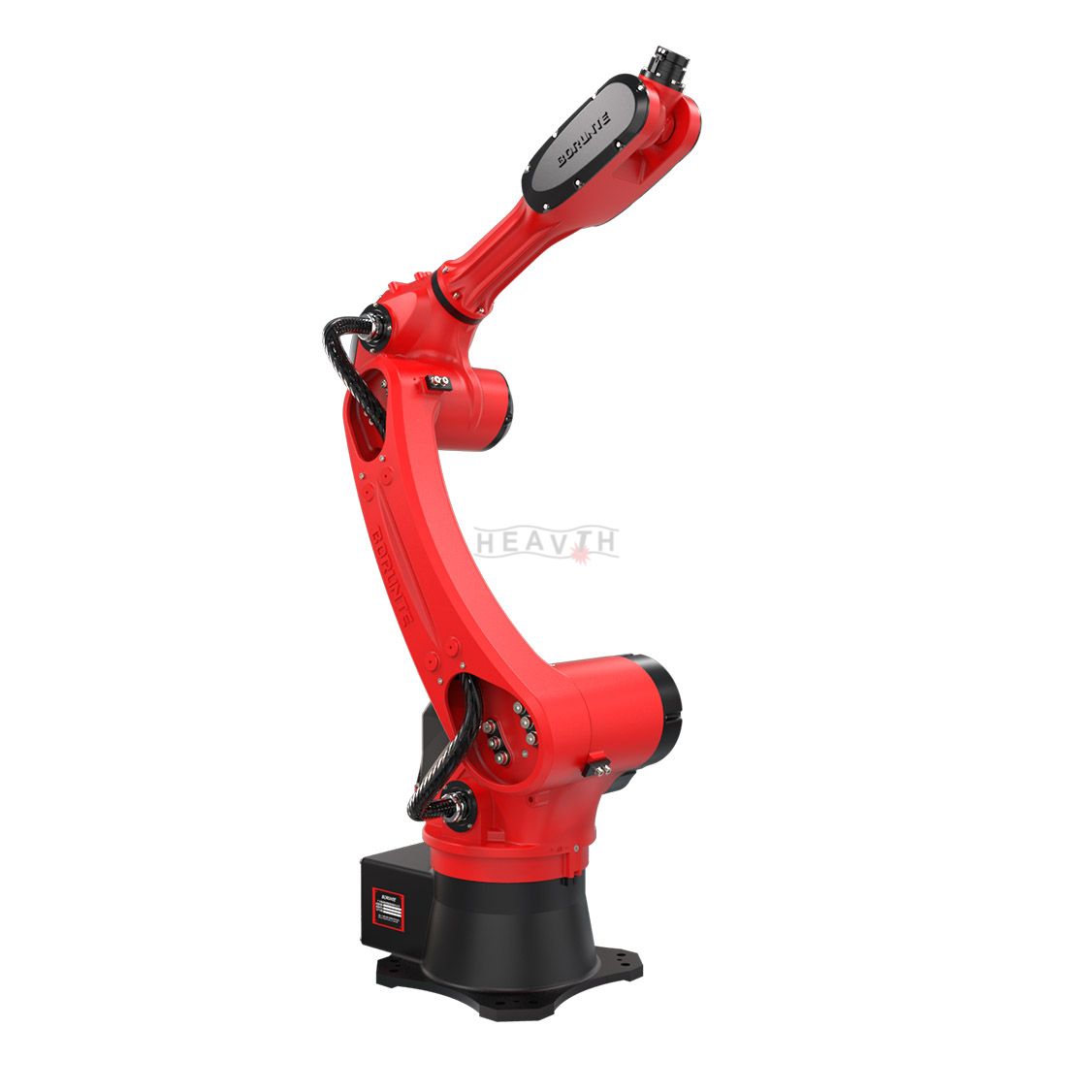

BR1510A
Industrial robots are multi-joint manipulators or multi-degree-of-freedom machine devices that are widely used in the industrial field. They have a certain degree of automation and can rely on their own power energy and control capabilities to achieve various industrial processing and manufacturing functions. Product details
BR1510A is a six-axis robot developed by Heavth for complex applications with multiple degrees of freedom.The maximum load is 10kg, the maximum arm length is 1500mm. Light weight arm design, compact and simple mechanical structure, in the state of high speed movement, can be carried out in a small workspace flexible work, meet the needs of flexible production. It has six degrees of flexibility.Suitable for painting, welding, molding, stamping, forging, handling, loading, assem bling, etc. It adopts HC control system. It is suitable for injection molding machine range from 200T-600T. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accuracy is ±0.05mm.
MainSpecification
Arm Length(mm):1500
Repeatability(mm):±0.05
Loading Ability(kg):10
Power Source(kVA):5.7
Weight(kg):150
Item | Range | Max.Speed | |
Arm | J1 | ±165° | 190°/s |
J2 | -95°/+70° | 173°/s | |
J3 | -85°/+75° | 223°/S | |
Wrist | J4 | ±180° | 250°/s |
J5 | ±115° | 270°/s | |
J6 | ±360° | 336°/s |
