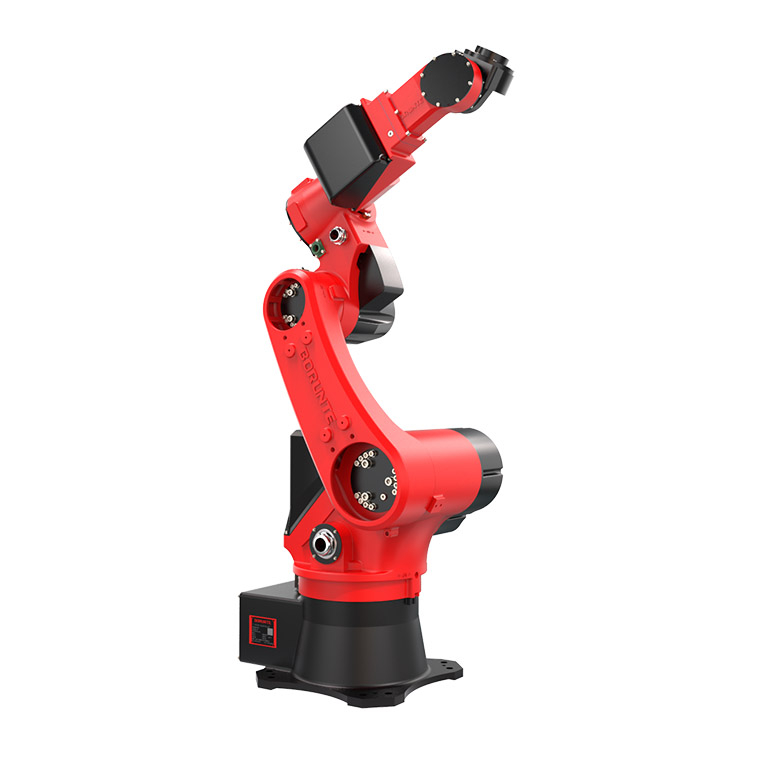

BR1210A High Quality 6 Axis Robot Arm CNC Industrial Automatic Robotic Arm

BR1210A Is a six-axis robot developed by Heavth for the welding, deburring and grinding application industries. It is compact in shape, small in size, light in weight, with a maximum load of 10kg and an arm span of 1225mm. Its wrist adopts a hollow structure, which makes the wiring more convenient and the movement more flexible. The first, second and third joints are all equipped with high-precision reducers, and the fourth, fifth and sixth joints are all equipped with high-precision gear structures. The high-speed joint speed enables flexible operation. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accuracy is ±0.07mm.

Availability:
Quantity:
Inquire Add to Basket

  • BR1210A

  • Heavth

BR1210A Is a six-axis robot developed by Heavth for the welding, deburring and grinding application industries. It is compact in shape, small in size, light in weight, with a maximum load of 10kg and an arm span of 1225mm. Its wrist adopts a hollow structure, which makes the wiring more convenient and the movement more flexible. The first, second and third joints are all equipped with high-precision reducers, and the fourth, fifth and sixth joints are all equipped with high-precision gear structures. The high-speed joint speed enables flexible operation. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accuracy is ±0.07mm.

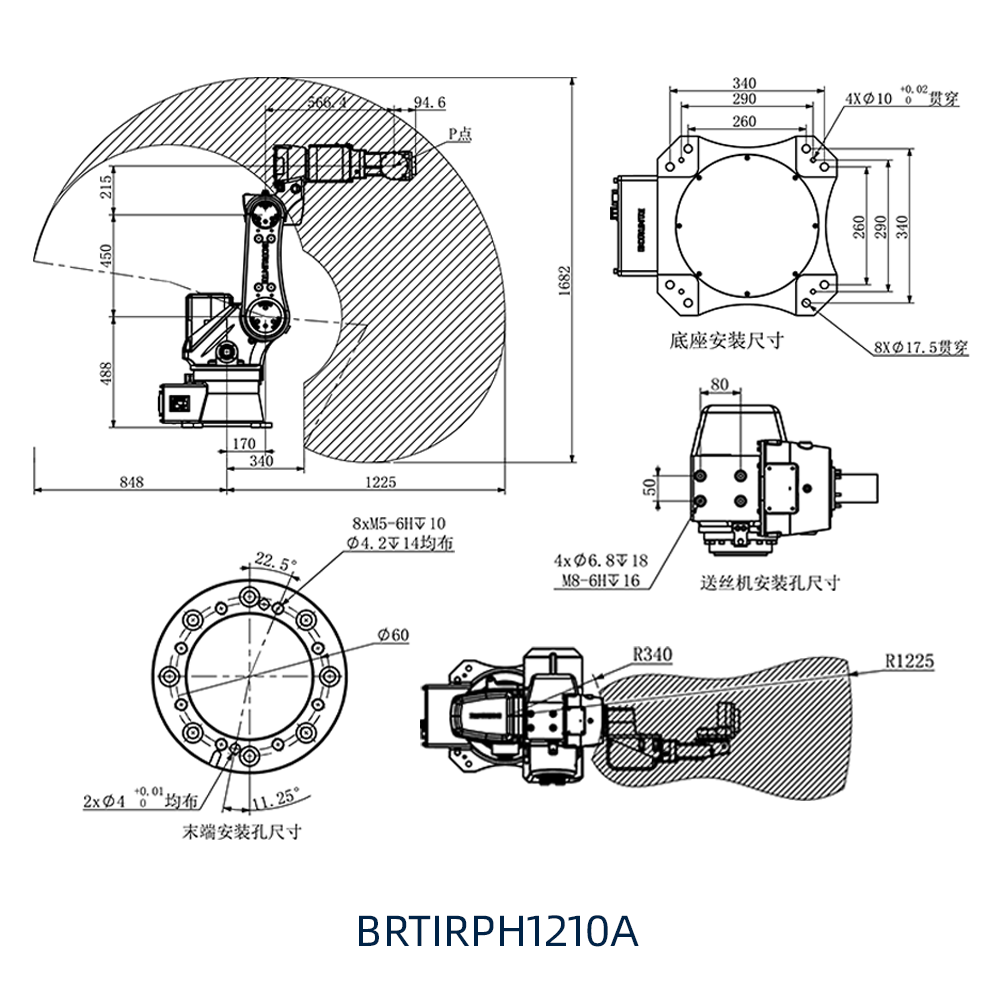

MainSpecification

Arm Length(mm)：1225

Repeatability(mm)：±0.07

Loading Ability(kg)：10

Power Source(kVA)：7

Weight(kg)：About 155

Item

Range

Max.Speed

Arm

J1

±165°

164°/s

J2

-95°/+70°

149°/s

J3

±80°

185°/s

Wrist

J4

±155°

384°/s

J5

-130°/+120°

396°/s

J6

±360°

461°/s
