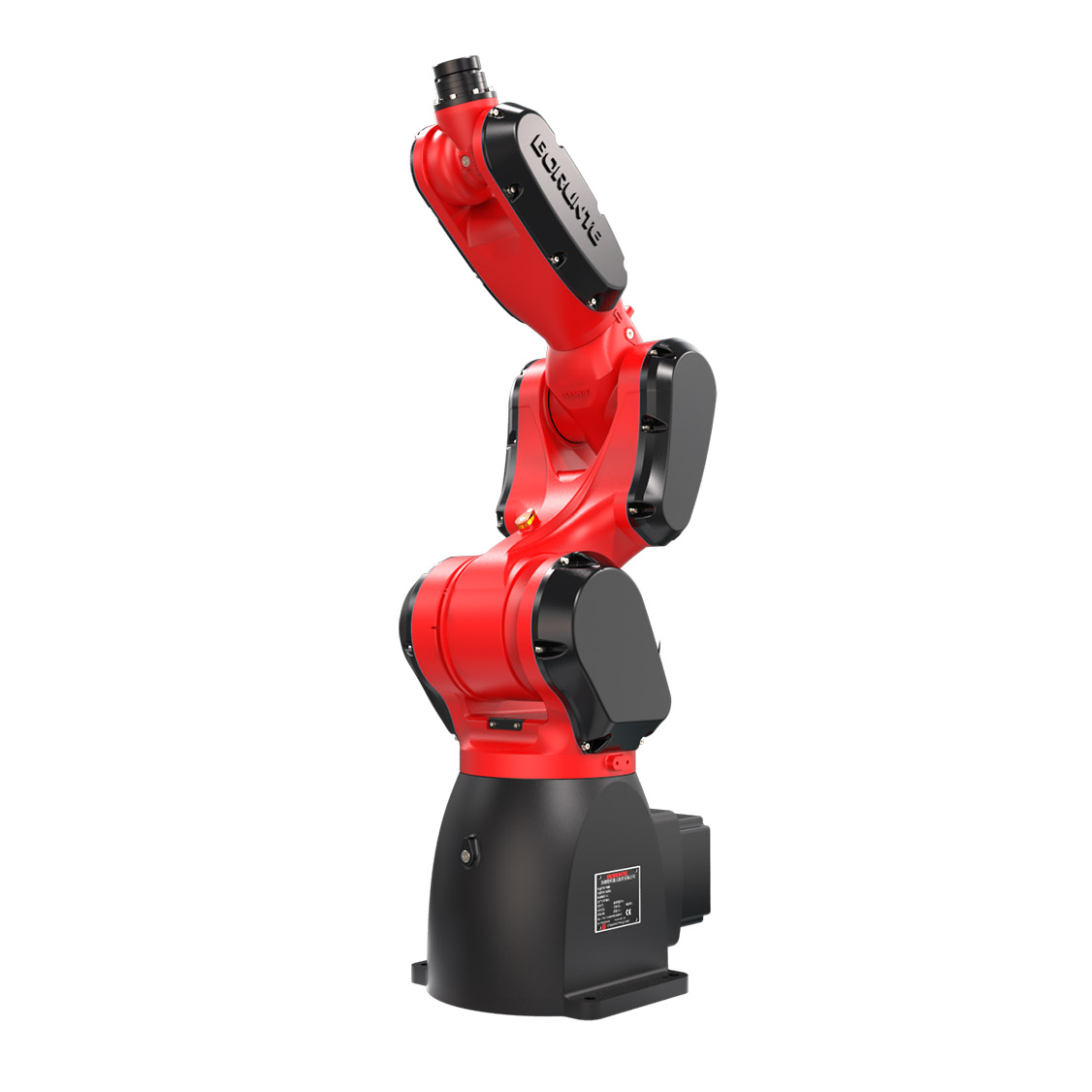

BR0707A 6 Axis High Quality Robot Arm CNC Industrial Automatic Robotic Arm

BR0707A type robot is a six-axis robot that developed by Heavth for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 700mm. The maximum load is 7kg. It's flexible with multiple degrees of freedom. Suitable for polishing, assembling, painting, etc. The protection grade reaches IP65.Dust-proof and water-proof. The repeat positioning accuracy is ±0.03mm.

Availability:
Quantity:
Inquire Add to Basket

  • BR0707A

  • Heavth

Product details

BR0707A type robot is a six-axis robot that developed by Heavth for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 700mm. The maximum load is 7kg. It's flexible with multiple degrees of freedom. Suitable for polishing, assembling, painting, etc. The protection grade reaches IP65.Dust-proof and water-proof. The repeat positioning accuracy is ±0.03mm.

MainSpecification

Arm Length(mm)：700

Repeatability(mm)：±0.03

Loading Ability(kg)：7

Power Source(kVA)：3

Weight(kg)：55

Item

Range

Max.Speed

Arm

J1

±174°

220.8°/s

J2

-125°/+85°

270°/s

J3

-60°/+175°

375°/s

Wrist

J4

±180°

308°/s

J5

±120°

300°/s

J6

±360°

342°/s
