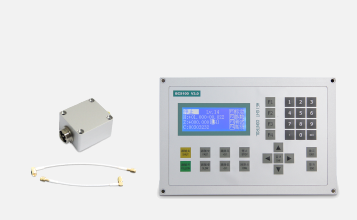

BCS100 Capacitive Height Controller

BCS100 capacitive height controller provides excellent performance in distance control. It served as height follow unit for FSCUT laser cutting control system via Ethernet communication, can realize functions including height sensing, segmented and stepping pierce process, detect and find workpiece edge, vibration suppression etc. Latest anti-collision function can effectively avoid tip-up collision risk in production.

Pressured gas will vibrate thin-walled material intensively especially in the marginal area without solid support. BCS100 can effectively suppress the signal noise caused by vibration, down below demonstrates the comparison of cutting performance with and without suppression function.This function requires BCS100 firmware V3.0.3152 and above.
Availability:
Quantity:
Inquire Add to Basket

  • BCS100

  • FRIENDESS

Technical Data

Model

BCS100

Applied system

FSCUT2000/3000/4000

Applied software

CypCut/TubePro

Work voltage

24V DC/2A

Interface type

Ethernet TCP/IP

Motor control signal

Analog output, -10~+10V

Follow range

0.2mm-25mm

Sample frequency

1000Hz

Static measure precision

0.001mm

Dynamic response precision

0.05mm

Maximum speed

999mm/s

Maximum acceleration

2G

Noise suppression

10%

Minimum mechanic rigidity

2Hz

DA resolution

16-bit

DA zero drift

3mv

DA response

0.01ms

Work environment

Temperature: 0~55℃

Humidity: 5%~95%(no condensation)

For PRECITEC laser head, select BCS100 Pro

Benefits

Anti-collision function can effectively avoid tip-up collision risk in production

Add protection in find edge process to avoid laser head hits machine slat when exceed sheet border

Support vibration suppression to restrict laser head resonating with vibrated thin sheet under pressured gas

Support real time capacitance calibration, and automatically offset the local capacitance change caused by temperature drift, collision, nozzle dismantle and plasma cloud

Work with cutting software can realize the functions of 'find workpiece edge', 'frog-leap' and 'stepping pierce' etc.

Support lock down function for security or payment collection

Support local or online firmware update

Support oscilloscope function to monitor real time capacitance and height change
