Product information

Unbeatable Benefits

●FAST: Up to 4X faster than TIG ●VERSATILE: Wide range of materials – up to 1/4 in. (6.35 mm) ●EASY: Optimized presets reduce learning curve ●CONSISTENT: High-quality, repeatable results ●FLEXIBLE: Simple and challenging applications ●PRODUCTIVE: Pre- and post-weld cleaning capability

Product Details

Model	MS-1000 HLW	MS-1500 HLW	MS-2000 HLW	MS-3000 HLW
Laser Source	1000W	1500W	2000W	3000W
Shielding Gas	Argon,Nitrogen,Air	Argon,Nitrogen,Air	Argon,Nitrogen,Air	Argon,Nitrogen,Air
Input Power	4KW	6KW	8KW	12KW
Water Chiller	13L 2400W	13L 2400W	13L 2500w	16L 4000W
Mains Supply	AC220V 1PH	AC220V 1PH	AC220V 1PH	AC380V 3PH
Laser Wavelength	1080±3nm
Fiber Length	10m
Focal Length	150mm, 200mm
Cooling mode	Intelligent water chiller
Overrall Dimension	7104301000mm	7104301000mm	7104301000mm	10505301120mm
Total Weight	130kg (155 lbs.)	150kg (179 lbs.)	160kg (190 lbs.)	180kg (215 lbs.)

Material	MS-1000HLW	MS-1500HLW	MS-2000HLW	MS-3000HLW
Stainless Steel	up to 3.5 mm	up to 5 mm	up to 6.5 mm	up to 9 mm
Galvanized Steel	up to 3.5 mm	up to 5 mm	up to 6.5 mm	up to 9 mm
Mild Steel	up to 3mm	up to 4mm	up to 6 mm	up to 9 mm
Aluminum	up to 2 mm	up to 2.5 mm	up to 4 mm	up to 6 mm

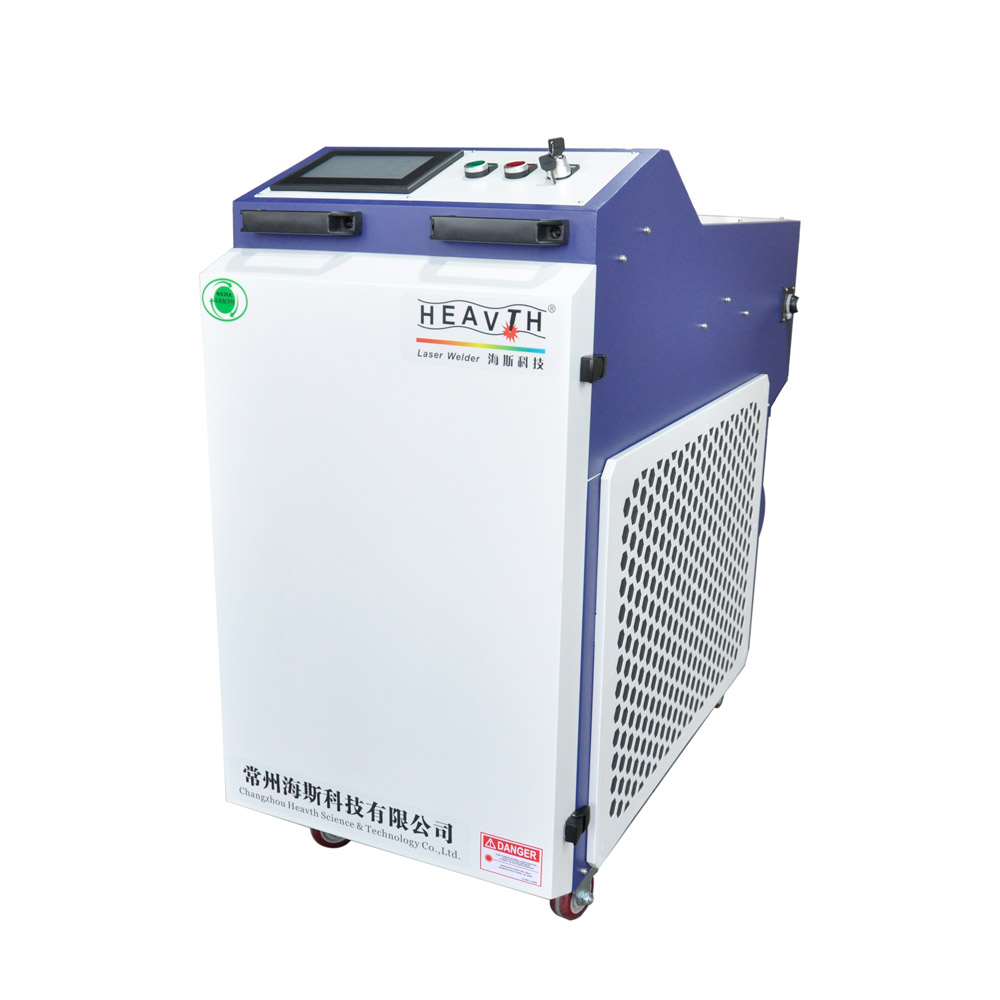

LightWELD - Turnkey Handheld Laser Welding & Cleaning Systems


                         ● Adjustable laser welding power up to 1000W, 1500W, 2000W, 3000W
 ●Preset & user-defined modes optimize material-thickness combinations
 ●Wobble welding controls for 6 mm of additional weld width
 ● Rear panel provides intuitive connections for power, process gas and external accessory controls
 ● Cleaning power up to 1000W, 1500W, 2000W, 3000W peak for greater welding quality and finishing capability.



                         Less Heat & Distortion for More Productivity & Flexibility



                         TIG welding
                         is a time-consuming, two-handed welding method that requires an experienced, highly-skilled operator. TIG welding may
generate extreme heat that deforms thin materials, produces poor visual finishes, is difficult when welding copper, and limited when welding metals of dissimilar thicknesses.



                         MIG welding requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.


LightWELD enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal
                          distortion, deformation, undercut or burn-through.

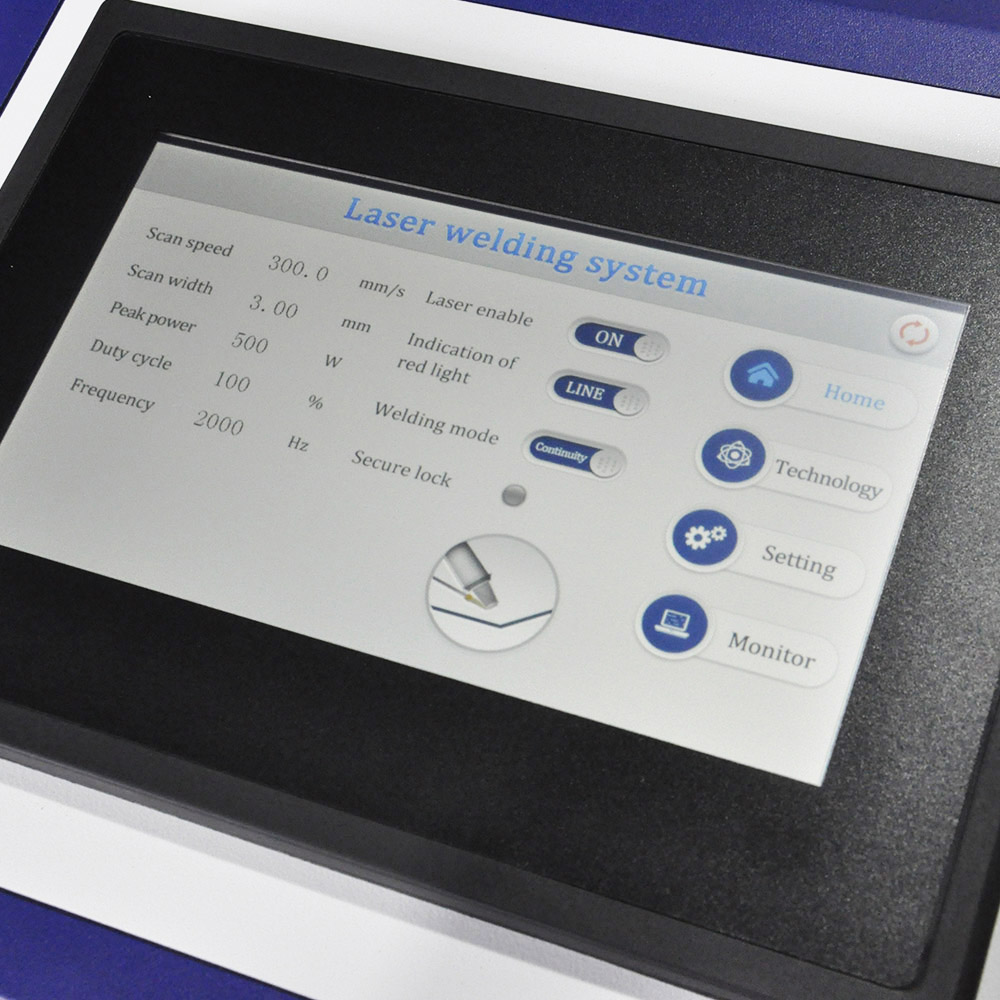

                         Factory Presets Ensure Optimized Welds & Cleaning



                         ●Simple preset selection ensures consistent high-quality laser welds and cleaning
●Presets include wobble welding function to accommodate wider seams and for parts with poor fit-up
●Operators can instantly switch between presets to process multiple material-thickness combinations
●Advanced operators can customize presets, save for future use and can be used by novice operators to produce the same results


                         LightWELD is Fast & Easy to Set Up



                          ●Ergonomic, compact and proven to be the most comfortable and easy to use laser gun with built-in wobble welding functionality.
 ●2-step trigger and part contact sensor enhance operator safety
 ●Purpose-built nozzle tips for various weld joint types and pre and post weld cleaning applications
 ●A single cable from the unit delivers laser power, gas and control connections to the gun


Fast and Easy Setup


                          ●Clearly labeled rear connections make getting started fast and easy
 ●Simply plug in power cord and gas connection, attach clamp to work surface, and the system is ready to go.
 ●Laser power, gas, and gun control are delivered through a single cable.
 ●An ethernet computer connection provides access to advanced parameter settings to fine tune and save process parameters.



                         Optional Wire Feeding Package



                          ● Wire welding capability extends laser welding applications to poorly fit-up parts
 ●Used for low carbon steel, stainless steel, aluminum and non-ferrous metals and alloys
 ●Wire feed speed range 40 – 600 cm/min (15 - 230 ipm)
 ●Wire diameter capacity 0.8 to 1.6 mm ( 0.035''- 0.063'')
 ●Wire feed tips: 0.8mm, 0.9mm, 1.2mm, 1.6mm



                         Handheld Laser Welding & Cleaning Systems



                         Easy to Learn
Built-in factory presets for welding and cleaning reduce learning curves, new welders can be trained within hour and experienced welders realize an immediate increase to productivity
 Highly Productive
High-speed welding that is 4X faster than TIG, with simple material preparation and minimal post-finishing, plus wobble welding and wire feed options for consistent high-quality results
 Highly Capable
Easily weld and clean thick, thin and reflective metals with low heat input from < .040" (1.0mm) up to 1/4" (6.35mm) with minimal part distortion, improved visual appearance and increased overall part quality


Cutting finished products show
