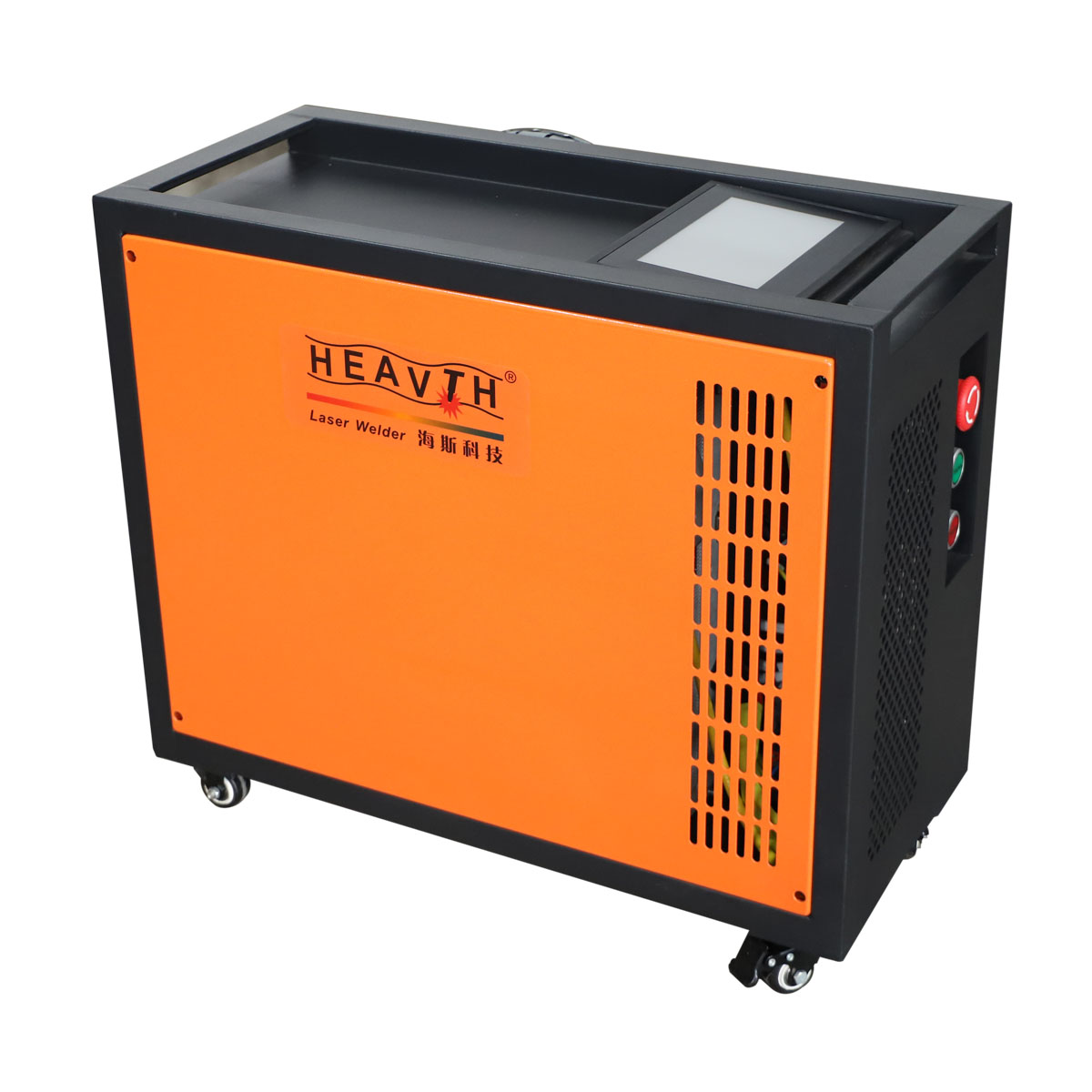

1500W 3 IN 1 Air Cooling Small Handheld Fiber Laser Welding Machine

Fiber Laser is a new laser source, and its coherence, monochromaticity, directivity, and high output power characteristics are unmatched by other laser sources. Focusing the laser to a point, the power density on the focal plane can reach 10 ⁵－10 ¹³w／cm ². Laser welding is to use the excellent directivity and high power density of the laser beam to work.

Power:	700w 1500w 2000w
Availability:

Quantity:



Inquire Add to Basket

Model:
A150i
Brand:
HEAVTH

Product Description

Product information

Unbeatable Benefits

●FAST: Up to 4X faster than TIG ●VERSATILE: Wide range of materials – up to 1/4 in. (6.35 mm) ●EASY: Optimized presets reduce learning curve ●CONSISTENT: High-quality, repeatable results ●FLEXIBLE: Simple and challenging applications ●PRODUCTIVE: Pre- and post-weld cleaning capability

Product Details

Model	A70i	A150i	A200i
Laser source	700W	1500W	2000W
Shielding Gas	Argon,Nitrogen,Air	Argon,Nitrogen,Air	Argon,Nitrogen,Air
Complete Penetration	2mm	4mm	6mm
Input power	＜2.2kw	＜4.5kw	＜6kw
Cooling model	Air cooling	Air cooling	Air cooling
Mains supply	AC220V 1PH	AC220V 1PH	AC220V 1PH
Weight	22kg	38kg	45kg

LightWELD - Turnkey Handheld Laser Welding & Cleaning Systems

● Adjustable laser welding power up to 1500 W
●Preset & user-defined modes optimize material-thickness combinations
●Wobble welding controls for 5 mm of additional weld width

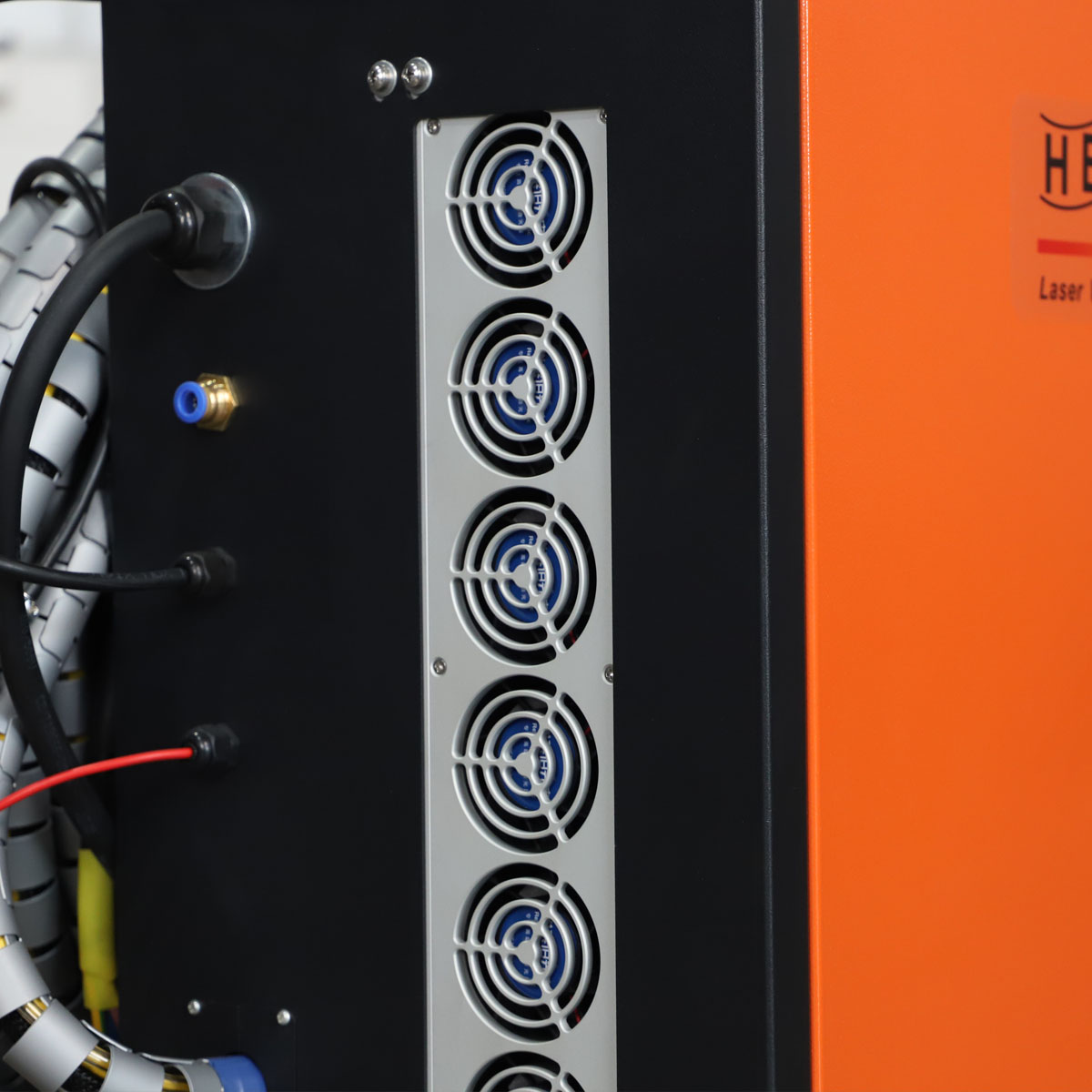

● Rear panel provides intuitive connections for power, process gas and external accessory controls
● Cleaning power up to 2500 W peak for greater welding quality and finishing capability

Less Heat & Distortion for More Productivity & Flexibility

TIG welding is a time-consuming, two-handed welding method that requires an experienced, highly-skilled operator. TIG welding may
generate extreme heat that deforms thin materials, produces poor visual finishes, is difficult when welding copper, and limited when welding metals of dissimilar thicknesses.

MIG welding requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.

LightWELD enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal

distortion, deformation, undercut or burn-through.

Factory Presets Ensure Optimized Welds & Cleaning

●Simple preset selection ensures consistent high-quality laser welds and cleaning
●Presets include wobble welding function to accommodate wider seams and for parts with poor fit-up
●Operators can instantly switch between presets to process multiple material-thickness combinations
●Advanced operators can customize presets, save for future use and can be used by novice operators to produce the same results

LightWELD is Fast & Easy to Set Up

●Ergonomic, compact and proven to be the most comfortable and easy to use laser gun with built-in wobble welding functionality.
●2-step trigger and part contact sensor enhance operator safety
●Purpose-built nozzle tips for various weld joint types and pre and post weld cleaning applications
●A single cable from the unit delivers laser power, gas and control connections to the gun

Fast and Easy Setup

●Clearly labeled rear connections make getting started fast and easy
●Simply plug in power cord and gas connection, attach clamp to work surface, and the system is ready to go.
●Laser power, gas, and gun control are delivered through a single cable.
●An ethernet computer connection provides access to advanced parameter settings to fine tune and save process parameters.

Optional Wire Feeding Package

● Wire welding capability extends laser welding applications to poorly fit-up parts
●Used for low carbon steel, stainless steel, aluminum and non-ferrous metals and alloys
●Wire feed speed range 40 – 600 cm/min (15 - 230 ipm)
●Wire diameter capacity 0.8 to 1.6 mm ( 0.035''- 0.063'')
●Wire feed tips: 0.8mm, 0.9mm, 1.2mm, 1.6mm

Handheld Laser Welding & Cleaning Systems

Easy to Learn
Built-in factory presets for welding and cleaning reduce learning curves, new welders can be trained within hour and experienced welders realize an immediate increase to productivity
Highly Productive
High-speed welding that is 4X faster than TIG, with simple material preparation and minimal post-finishing, plus wobble welding and wire feed options for consistent high-quality results
Highly Capable
Easily weld and clean thick, thin and reflective metals with low heat input from < .040" (1.0mm) up to 1/4" (6.35mm) with minimal part distortion, improved visual appearance and increased overall part quality

Cutting finished products show

Company Profile

Changzhou Heavth Science & Technology Co , Ltd . was established in 2006 . We are located in Changzhou , which is the key city of Jiangsu province near to Shanghai .
We are supplying Laser CNC cutting machine , Portable CNC cutting machine , Gantry CNC cutting machine , CNC Pipe/tube cutting machine and other welding & cutting equipment . we have strong research and development ability . For now , we are supplying 6 series and over 30 kinds of products . We develop and design various types of CNC cutting machine and related accessories which are widely used in the large number of industrial circle .
Our company has strong technical force , advanced production equipment , detection means complete and excellent product quality .
Our products are sold to U.S.A , Canada , Australia , Europe , South East Asia , Africa etc , more than 100 countries and areas ,and supply OEM service for more than 20 manufactures . Heavth is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force .
