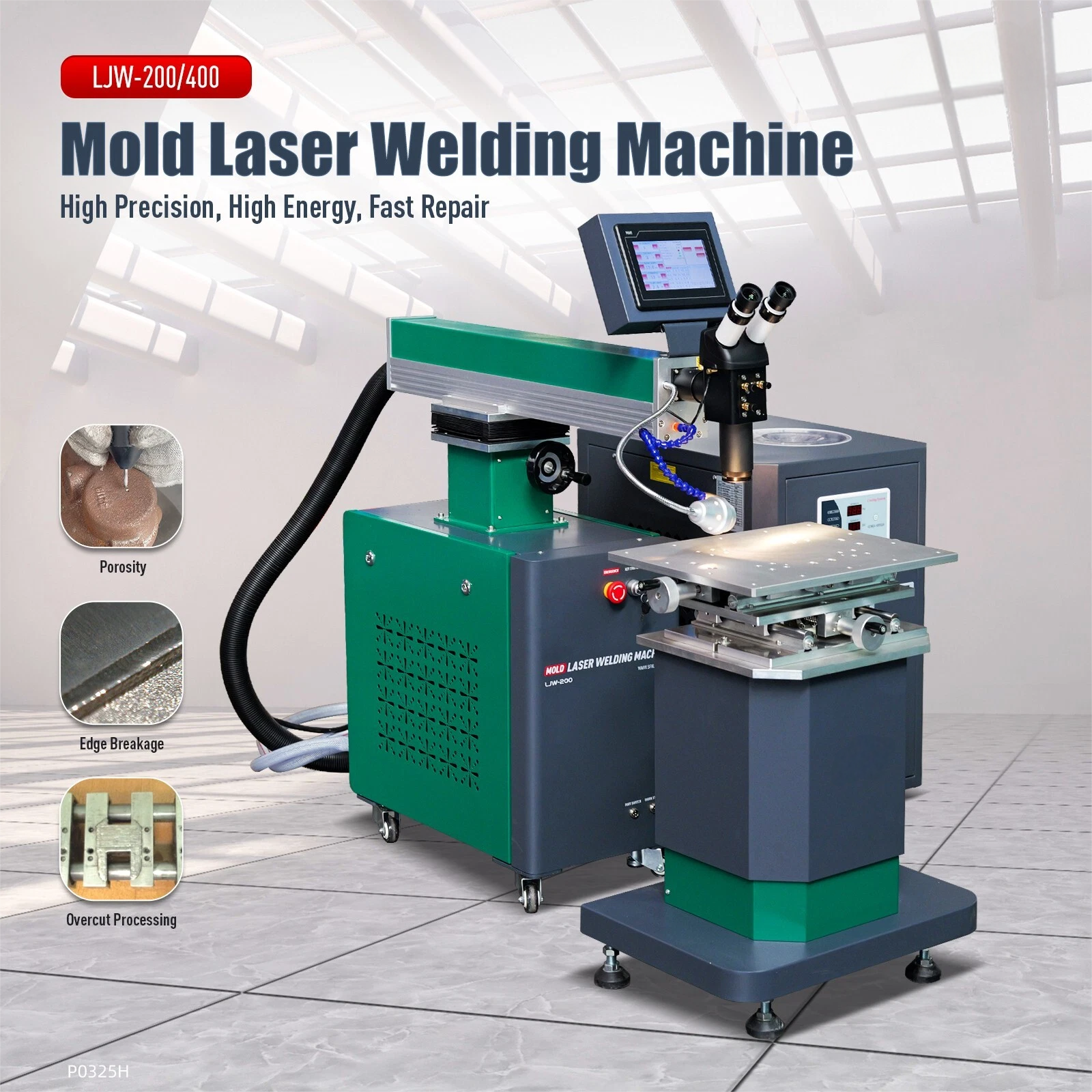

LASER WELDING MACHINE FOR MOULD REPAIRING FORMENBAU-LASER SCHWEIβMASCHINE





Availability:
Quantity:
Inquire Add to Basket

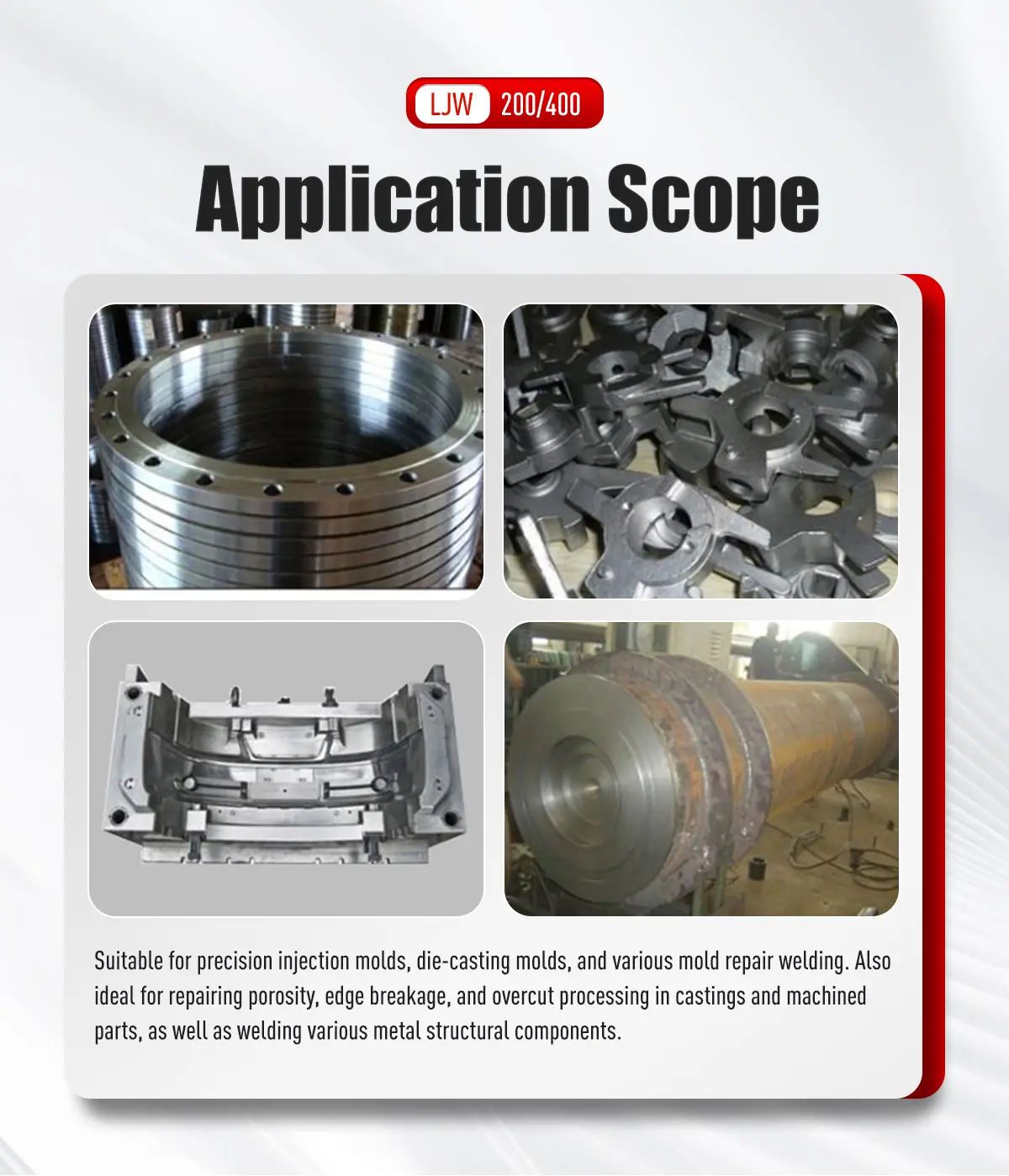

Mold laser welding machine widely used in molds,precision injection molding,die castng and punchingmold,stainless steel products and other hard materials cracks,chipping.grinding and wear seal repair,welding.cellphones,jewelry,electronics,sensors,precision machinery,communications,crafts  and  other  industries.

Laser-FormschweiBmaschine ist weit verbreitetin:Prazisionsspritzguss,Druckguss,Stanzen undanderen Formen,Rissen,Absplittern, Kantenschleifen und Verschleiß und Versiegelung von harten Materialien aus Edelstahl,SchweiBen,Ketten,Schmuck,elektronischen Komponenten,Sensoren,Prazisionsmaschinen,Kommunikation,Steckverbinder,Datenleitungen,Kunsthandwerk   und    andere    Branchen.


◆ Technical Parameters/technische Parameter

Model

HHL-MJ200w

HHL-MJ300W

HHL-MJ400w

Max laser power

200W

300W

400W

Laser type

NDCE:YAG

Laser wavelength

1064nm

Laser spot adjust range

0.2mm-3.0mm

Spot size

0.2-3.0mm

Pulse width

0.1ms-25ms

Welding depth

≤0.6mm

≤0.8mm

≤1.2mm

Pulse frequency

≤20Hz

Machine power

6KW

12KW

14KW

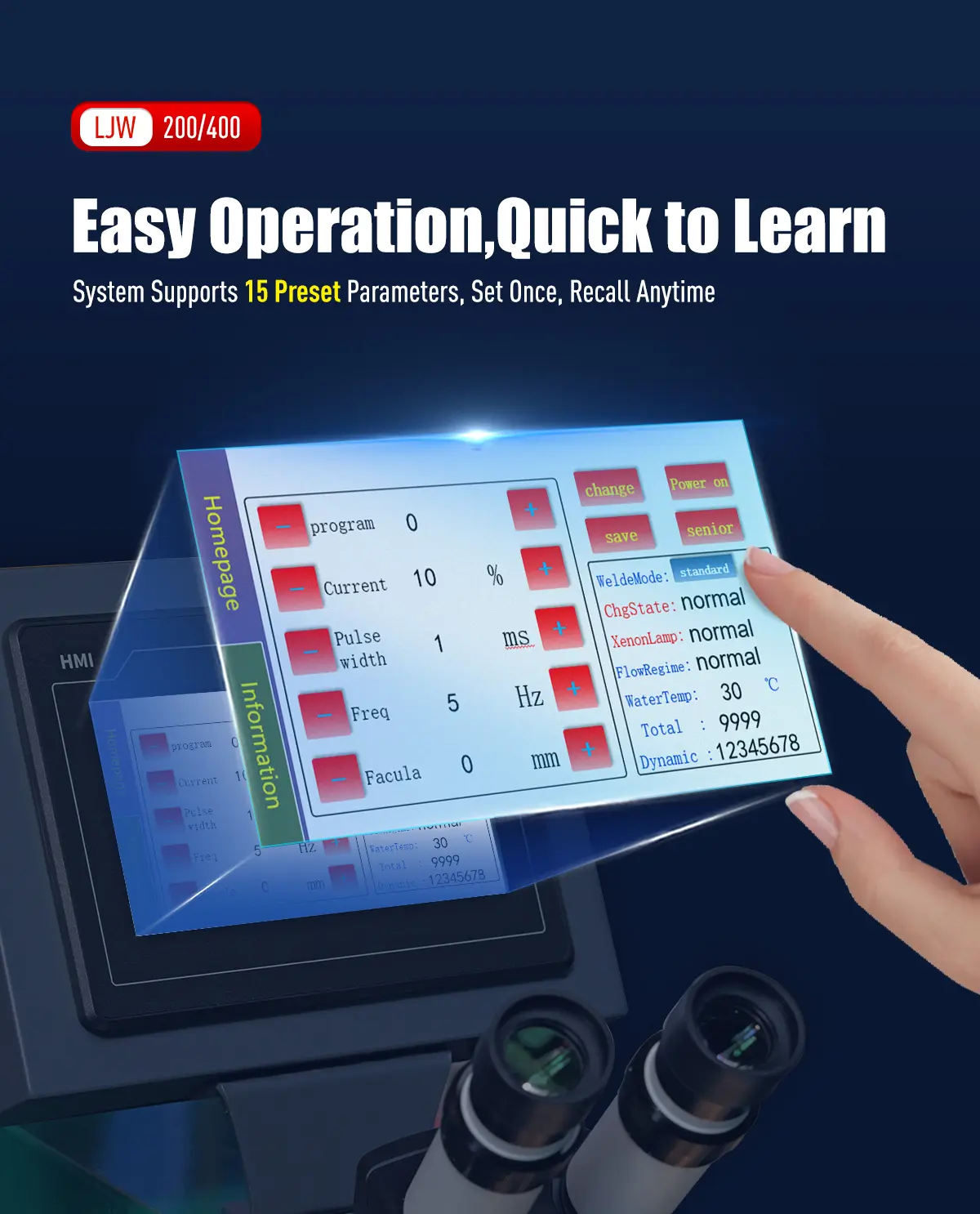

Control system

Single chipmicrocomputer

Aiming and positioning

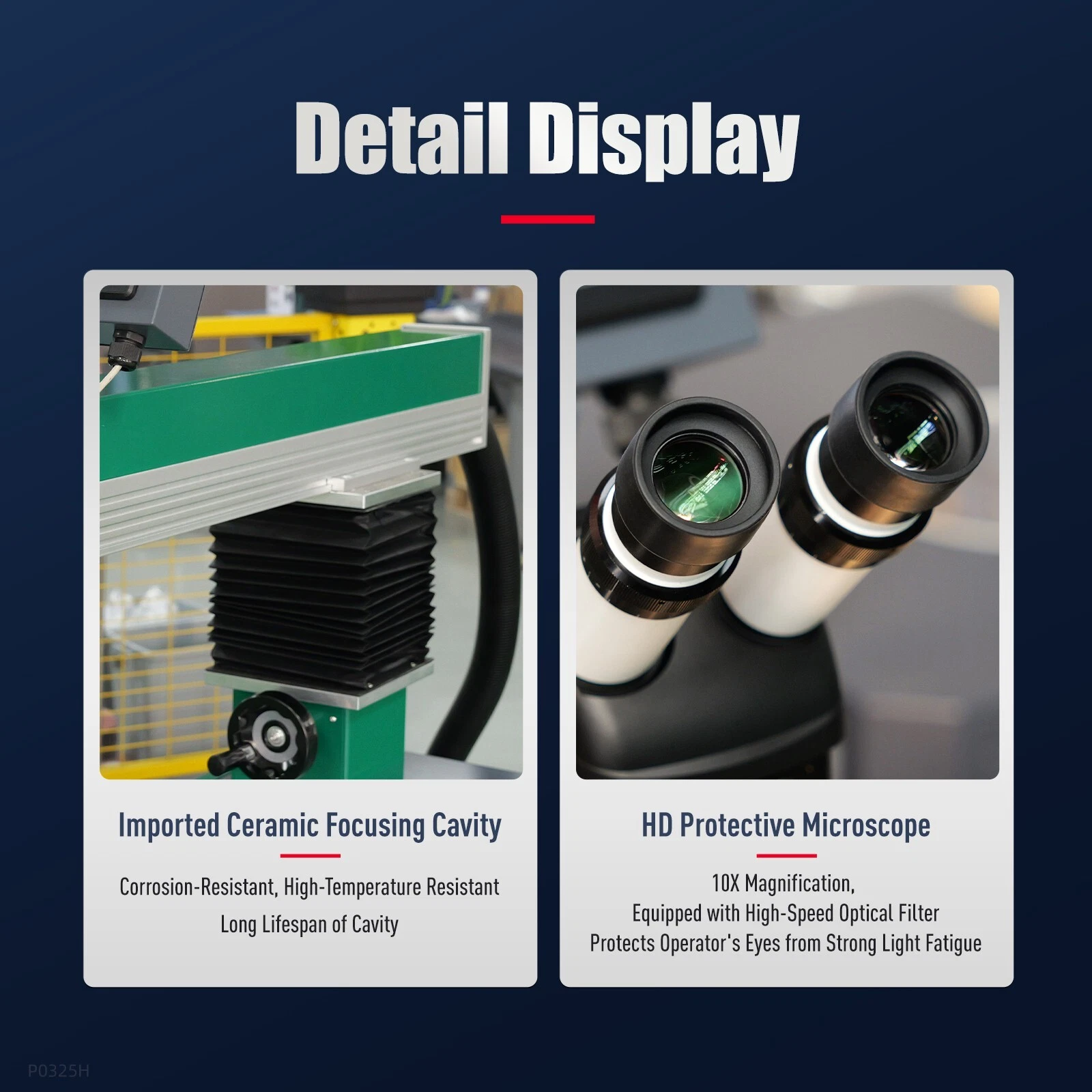

Microscope、CCD、red light

Host system size

560×800x400mm

Electricity demand

220V±5%/380V±5%50Hz60A

Host system size

1200x550x1100mm

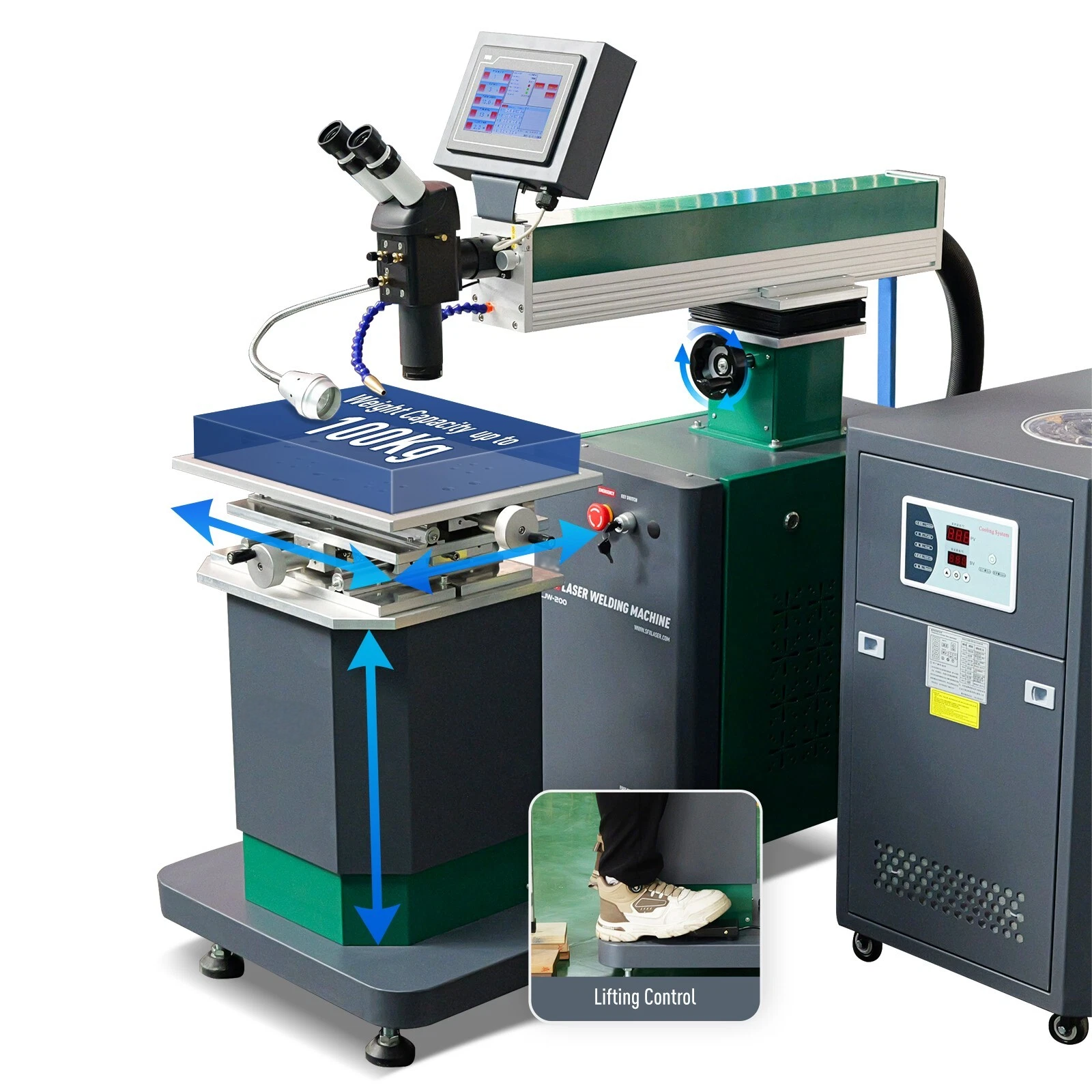

Table load

150kg

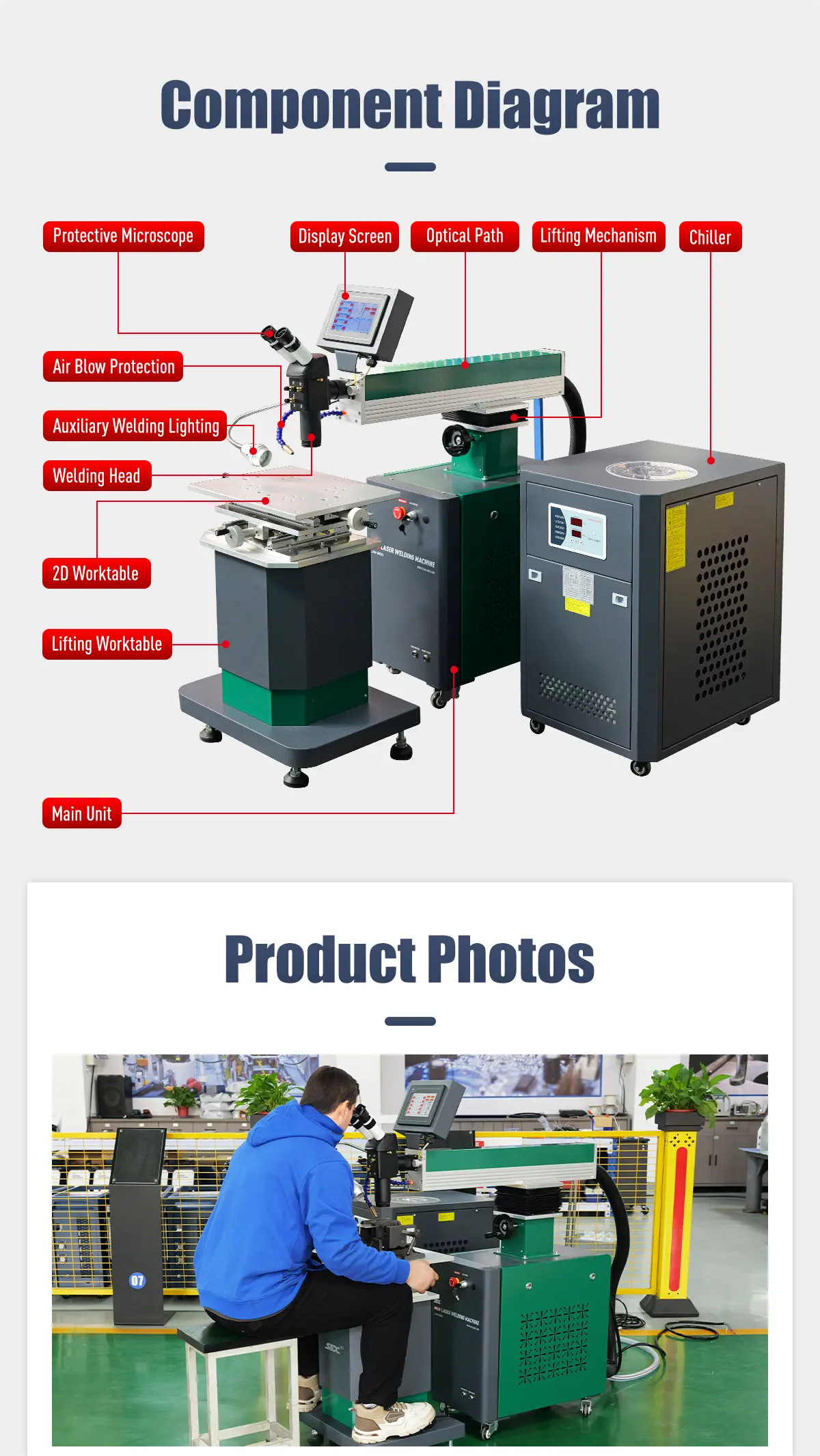

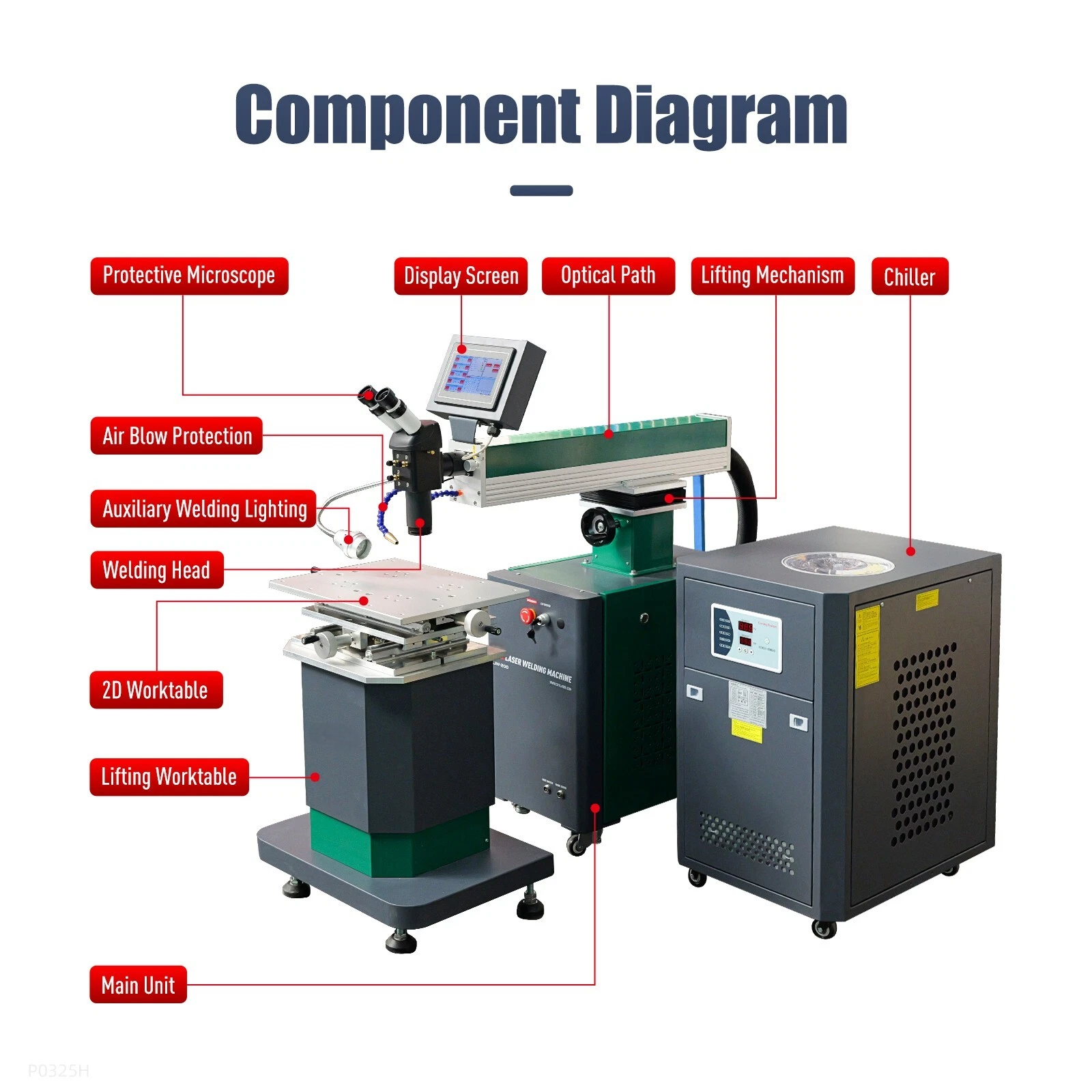

D2D8D7
