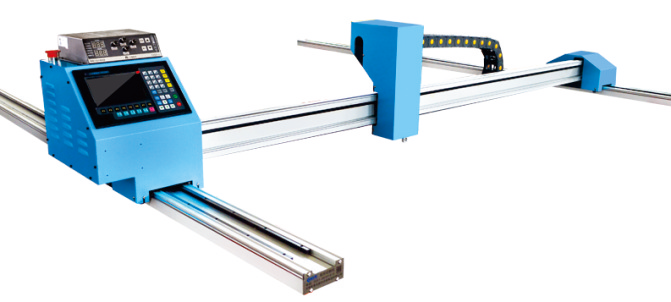

MG1630/MG2430/MG2930/MG2960
HEAVTH
Features
1. Double side driven gantry structure is used to ensure smooth operation and high cutting accuracy.
2. Automatic cutting: delay, preheating, perforation, radius compensation, breakpoint recovery, continuous retreat.
3. Efficient cutting: the output is 6-8 times higher than manual cutting, and 4-6 times higher than semi-automatic trolley cutting.
4. The high positioning accuracy and repeatability of the whole machine can provide high-quality cutting.
Mini gantry cutting machine.pdf
Parameter
| Model | MG1630 | MG2430 | MG2930 | MG2960 |
| Rail size | 2.3×3.5M | 3×6.5M | 3.5×6.5M | 3.5×6.5M |
| Cutting range(X/Y) | 1.6×3M | 2.4×3M | 2.9×6M | 2.9×6M |
| Input voltage | Single phase AC220V | |||
| Input power | About 500W | |||
| Running speed | 0-4000mm/min | |||
| Cutting type | Flame + plasma cutting | |||
| Operating accuracy | 0.3mm/m | |||
| Cutting thickness | Flame: 5-100mm, Plasma: optional | |||
| Plasma source option | LGK80 / LGK120 / LGK200 / LGK300 / LGK400A | |||
Features
1. Double side driven gantry structure is used to ensure smooth operation and high cutting accuracy.
2. Automatic cutting: delay, preheating, perforation, radius compensation, breakpoint recovery, continuous retreat.
3. Efficient cutting: the output is 6-8 times higher than manual cutting, and 4-6 times higher than semi-automatic trolley cutting.
4. The high positioning accuracy and repeatability of the whole machine can provide high-quality cutting.
Mini gantry cutting machine.pdf
Parameter
| Model | MG1630 | MG2430 | MG2930 | MG2960 |
| Rail size | 2.3×3.5M | 3×6.5M | 3.5×6.5M | 3.5×6.5M |
| Cutting range(X/Y) | 1.6×3M | 2.4×3M | 2.9×6M | 2.9×6M |
| Input voltage | Single phase AC220V | |||
| Input power | About 500W | |||
| Running speed | 0-4000mm/min | |||
| Cutting type | Flame + plasma cutting | |||
| Operating accuracy | 0.3mm/m | |||
| Cutting thickness | Flame: 5-100mm, Plasma: optional | |||
| Plasma source option | LGK80 / LGK120 / LGK200 / LGK300 / LGK400A | |||
