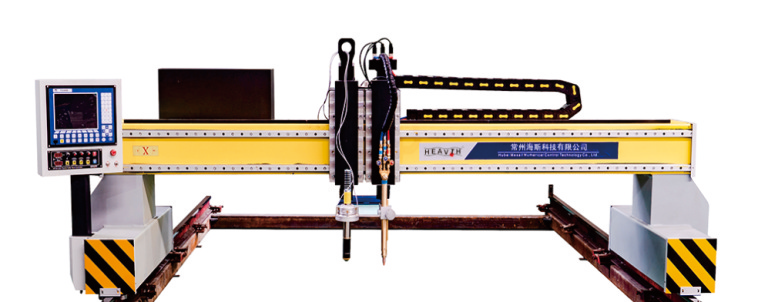

MS-3A/MS-4A/MS-6A
HEAVTH
Features
1. The gantry adopts square tube welding structure, which has good rigidity and high strength. Each guide surface is precision machined. After welding, the overall stress relief annealing is adopted to ensure that the beam will not deform for a long time.
2. Precision torch lifter: the torch lifter is made of aluminum alloy, which is light in weight, greatly reducing the lifting resistance. The accuracy of lifter during operation is ensured.
3. Very low processing cost: plasma is a heavy duty production tool, which greatly reduces the operating cost. It is widely used for cutting carbon steel, stainless steel, aluminum and other raw materials.
A-series gantry plasma flame cutting machine.pdf
Parameter
| Model | MS-3A | MS-4A | MS-6A |
| Rail size | 3.2×8M | 4×10M | 6×12M |
| Cutting range(X/Y) | 2.3×7.5M | 3.3×8.5M | 5.3×10.5M |
| Y axis rail | 24kg/m rail | ||
| Input voltage | Single phase AC220V | ||
| Input power | About 2000W | ||
| Running speed | 0-8000mm/min | ||
| Cutting type | Flame + plasma cutting | ||
| Operating accuracy | 0.3mm/m | ||
| Cutting thickness | Flame: 5-200mm, Plasma: optional | ||
| Customizable items | Cutting range | ||
| Plasma source option | LGK80 / LGK120 / LGK200 / LGK300 / LGK400A | ||
